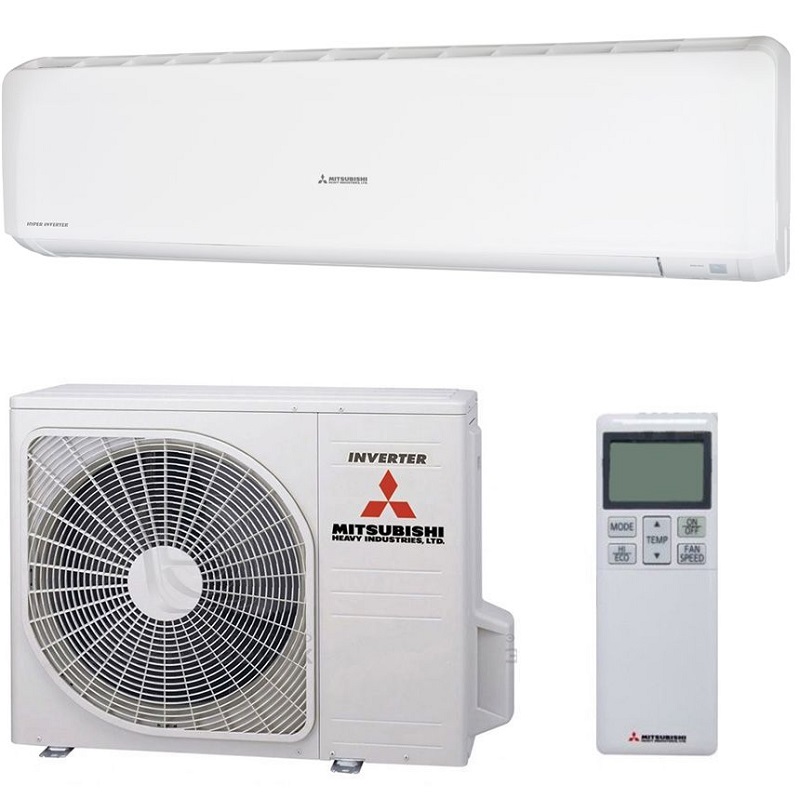

Air conditioner Mitsubishi SRK/SRC 71 ZR-W Heavy Industries 7.1 kw

Air conditioner Mitsubishi SRK/SRC 71 ZR-W Heavy Industries 7.1 kw

High efficiency and high power, thanks to a compressor with two rotors and an improved external heat exchanger.
Long-range airflow, using Jet Air technology used in aircraft construction to create the perfect airflow system with minimal power consumption, airflow reaches 17m (cooling mode)

Quiet and even airflow
Thanks to the "3D Auto" function to obtain a uniform temperature at all points of the room

One button activated allergen deactivation system

Self-cleaning and filters
Washable photocatalytic deodorizing filter and deactivating allergens

Wi-Fi adapter (optional)

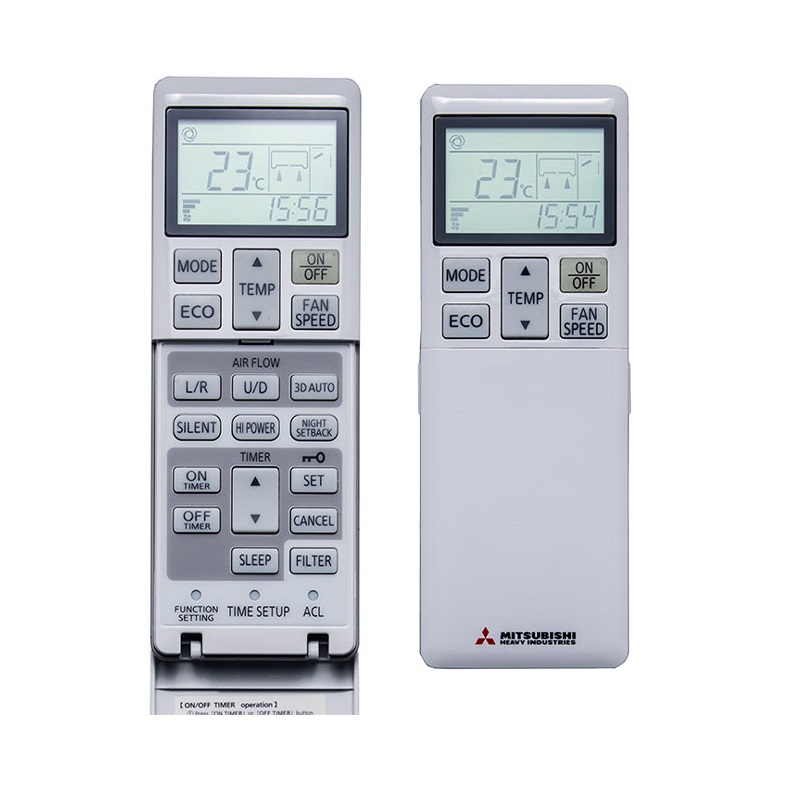

Can be controlled by smartphones and tablets with easy-to-use infrared wireless remote to control temperature, fan speed, heating, cooling and drying modes

With many configuration options, such as "Economy" for energy saving, weekly timer to be programmed according to individual needs, "Silent" mode, which can be selected for the night, etc...

Suitable for all types of applications at home, in the office or in industrial installations, with the possibility of working in cooling mode at low outside temperatures

Unit function
Supply V, Phase, Hz 220-240V, 1Ph, 50Hz
Capacity Heating BTU/h 27,296 (6,824 – 34,120)
Air Conditioning BTU/hr 24,225 (7,847 – 26,272)
SEER (Average) 7.2
SCOP (Average) 4.5
Energy class Heating (Average) A+
Cooling (medium) A++
Energy consumption Heating kW 0.20
Cooling kW 0.20
Initial operating current (220V/230V/240V) A 9.6 / 9.1 / 8.8
Maximum operating current A 17
Airflow Outdoor unit-Heating m3/min 43.5

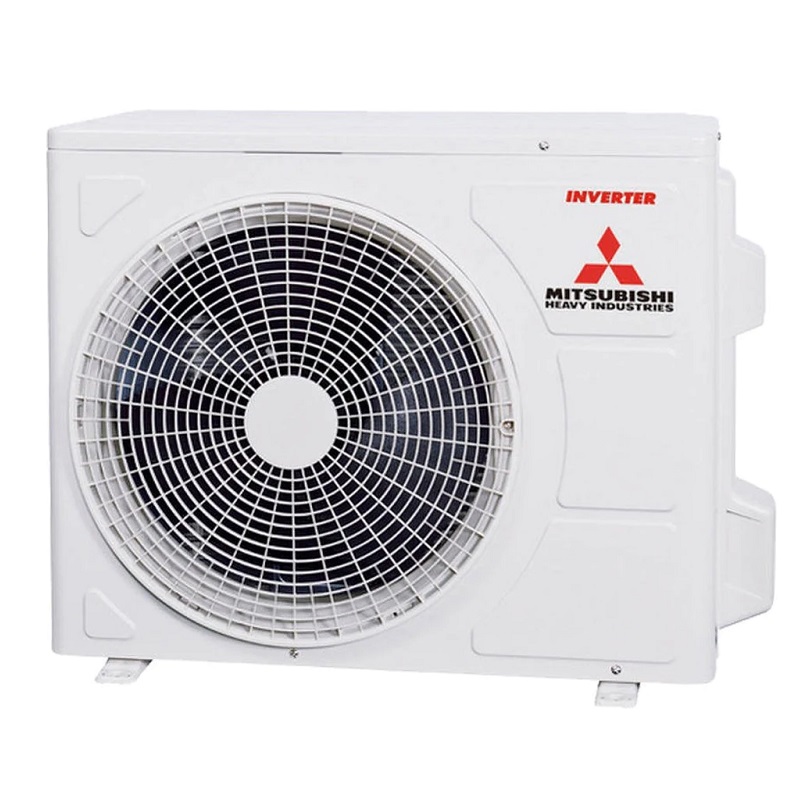

Outdoor unit
Cooling m3/min 55
Indoor unit-Heating (H/O/V/V) m3/min 25.5 / 19.8 / 17.3 / 13.3
Indoor unit-cooling (H/O/V/V) m3/min 20.5 / 18.6 / 16.2 / 10.4
Sound level Outdoor unit-Heating dB(A) 53

Outdoor unit
cooling dB(A) 51
Cooling (H/M/V/V) 44 / 41 / 37 / 25
Heating (H/O/V/V) 46 / 39 / 35 / 28
Dimensions (WxHxD) Outdoor unit mm 880(+88)x750x340
Indoor unit mm 1197x339x262
Outdoor unit net weight kg 57
Indoor unit kg 15.5
Gas connection pipe diameters mm (inches) 15.88 (5/8″)
Liquid mm (inch) 6.35 (1/4″)
Maximum piping length m 30
Maximum level difference m 20
Outdoor operating temperature range Heating ° C -15 / 24
Cooling °C -15 / 46
