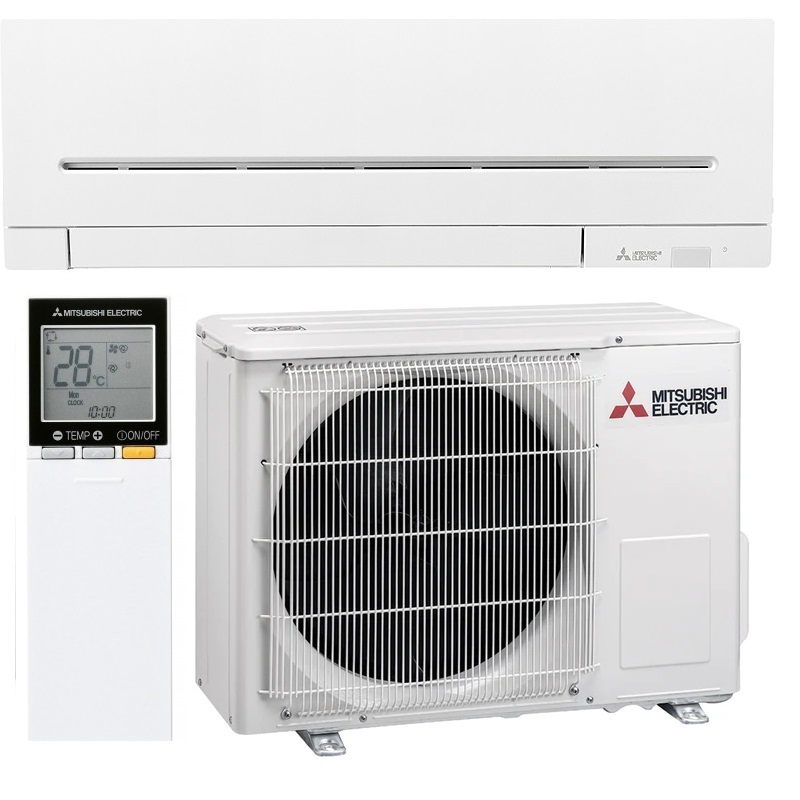

Air conditioner Mitsubishi Electric MSZ-AP35VG gas R32

Air conditioner Mitsubishi Electric MSZ-AP35VG gas R32

The MSZ-AY35VGK model 2023 series is part of the new generation of equipment with R32 refrigerant gas, it has the highest energy classification A +++ in cooling mode and an ultra-compact design that allows the indoor units to be placed in confined spaces and go completely unnoticed without changing the general aesthetics of the living room

Known for the most demanding consumers, it is associated with the new generation of units with R32 refrigerant offering the best energy efficiency A +++ and a minimum noise level of only 19 dB, 3 years warranty parts / 5 years compressor / 1 year accessories

Compact design, The new MSZ-AY35VGK has an ultra-compact design that allows you to place the indoor units in tight spaces and go completely unnoticed without changing the overall aesthetics of the room, 15 and 20 capacities, available for multi split systems, and the 25, 35, 42 and 50 capacities available in single 1x1 and multi split combinations allow different rooms in the house to be air conditioned with the same design for all units

Maximum energy efficiency, thanks to the introduction of the new R32 refrigerant gas, the new MSZ-AY35VGK has the highest energy classification A +++ in refrigeration (SEER) and A ++ in heating (SCOP)
These high efficiency ranges guarantee maximum performance with minimum power consumption during the hottest days of the year.

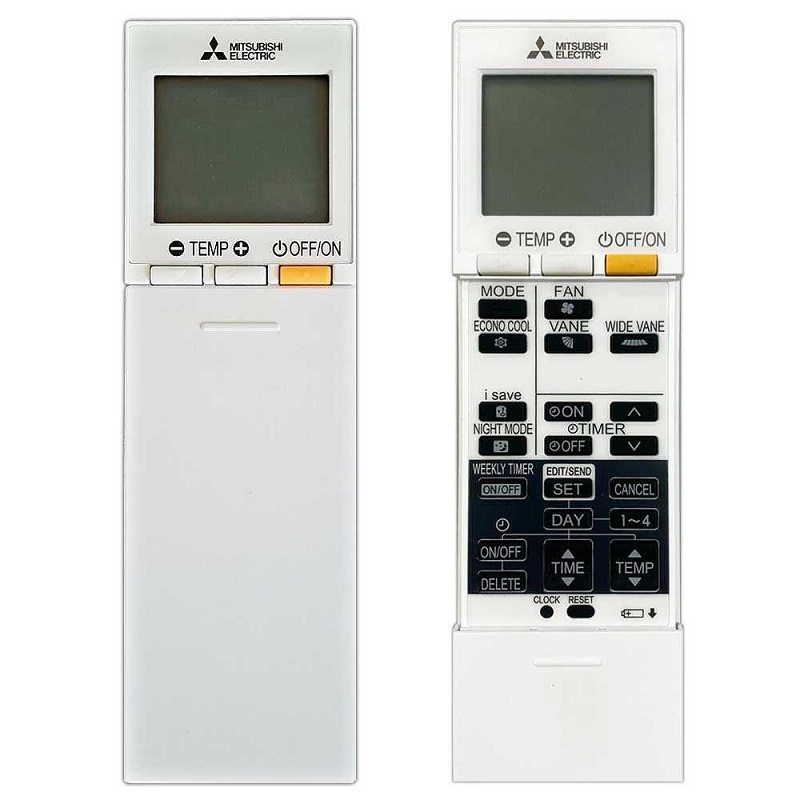

Total control of the blades thanks to the remote control ensuring optimal air conditioning in all corners of the house, It allows to Control the oscillation of the blade horizontally and vertically, improving the distribution of the air flow and heating quickly any what piece

Air purifying filter, the new MSZ-AY35VGK range features a precise purifying filter containing platinum-ceramic particles that enhance air purifying functions by removing bacteria, viruses and allergens

In addition, the filter is so effective that it is able to capture even nanoscopic odor particles.
Built-in weekly scheduler, the MSZ-AY35VGK includes a weekly scheduler that allows you to easily configure the operation of the equipment automatically at different times of the day / week (up to 4 settings for each day of the week).

In this way, the comfort of the house is improved and the consumption levels are reduced because it prevents the machine from operating when it is not necessary.

Minimum noise level, Its ultra-quiet operation of just 19 dB allows you to create comfortable and relaxed environments, It is ideal for bedrooms, absolute silence is essential

Technical specifications Mitsubishi Electric MSZ-AY35VGK
Refrigeration
Rated cooling capacity (min / max) (kW) 3.5 (1.1 - 3.8)
Rated cooling consumption (kW) 0.99
EER / Energy class 3.54 / A
SEER / Seasonal energy class 8.60 / A +++
Operating range (°C) -10 / + 46

Heating
Nominal heat output (min / max) 4 (1.3 - 4.6)
Nominal heat consumption (kW) 1.03
COP / Energy class 3.88 / A
SCOP / Seasonal energy class 4.70 / A ++
Operating range (°C) -15 / +2

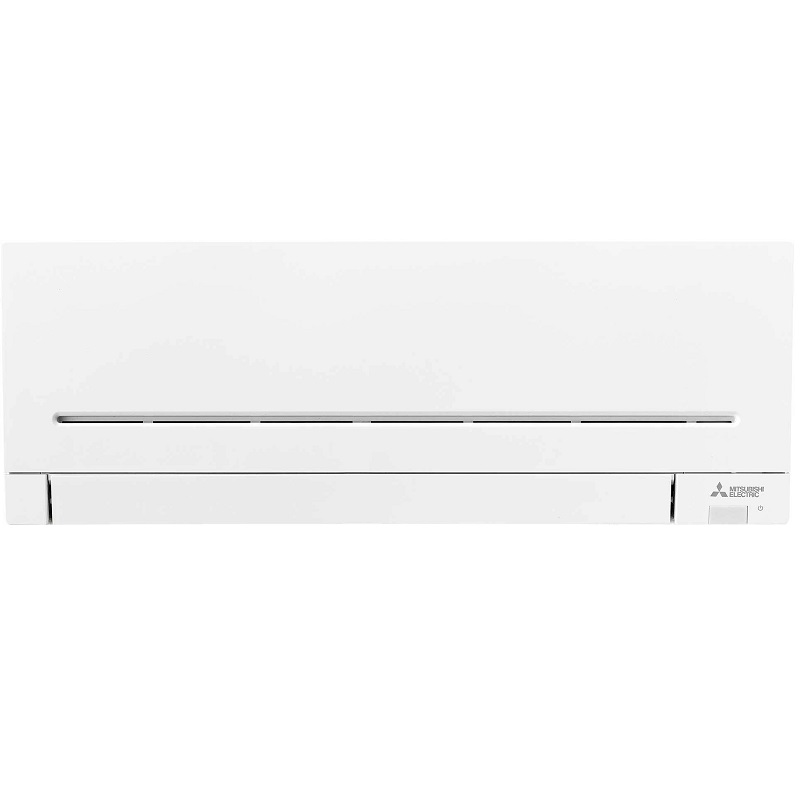

Indoor unit MSZ-AY35VG (K)
White colour
Gas R32
Indoor unit type wall mounted
Cold connection 1/4'' - 3/8''
Power 3.5 KW / 12000 Btus
Nominal Heating Power 4 KW
Nominal Cold Power 3.5 KW
Room (M2) 35
Sound Pressure DB (1st Value) 19
Height x width x depth (mm) 299 x 798 x 219
Net weight (kg) 10.5

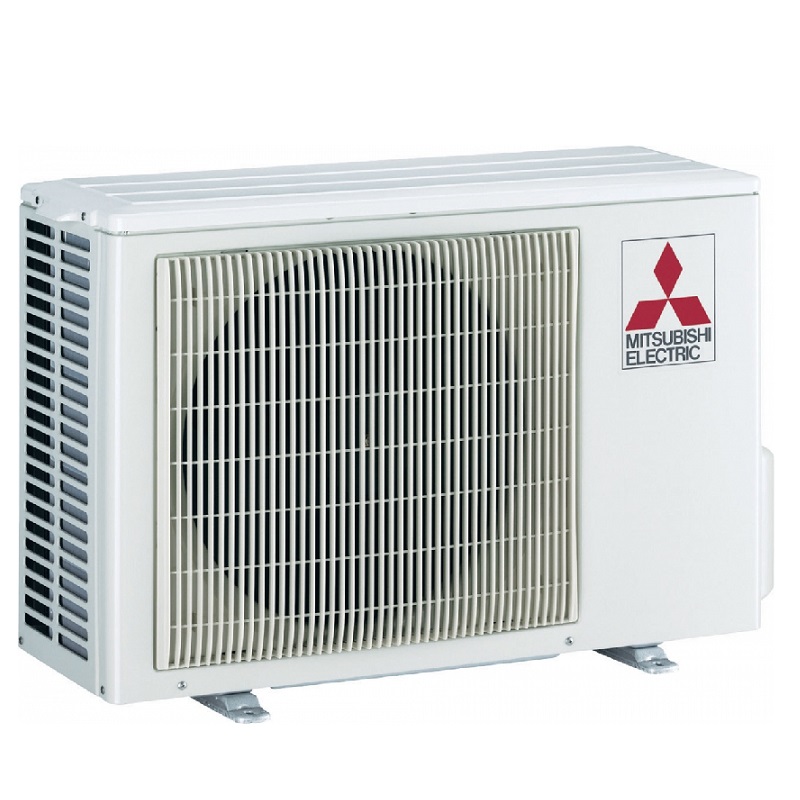

Outdoor unit MUZ-AY35VG
Cold air flow GV (m3 / min) 32.2
Depth 28.5cm
Width 80cm
Height 55cm
Weight 31kg
Power supply: single phase
Cold power 3.5 kw
Hot power 4 kw
Sound level 49 dBA
Refrigerant gas R32
