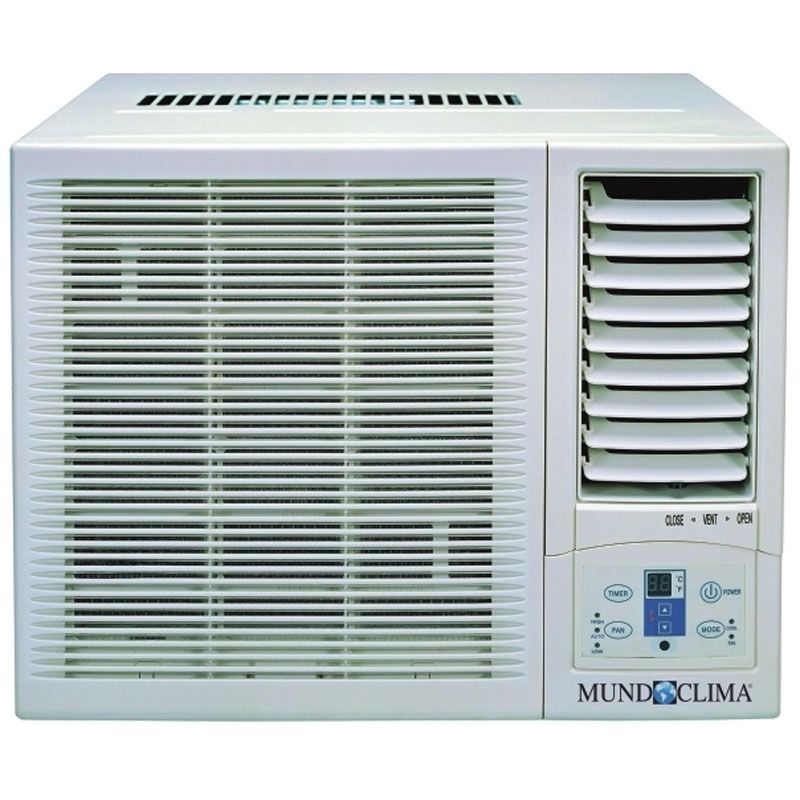

Mundo Clima window air conditioner MUVR-12-C6 cold only
Features
DC Inverter Rotary Compressor
New R32 refrigerant
Compact design
Reduced consumption
Easy setup
3-speed fan
Timer function
Digital display
Wireless remote control included
Technical characteristics
Power V-Hz-F220-240V~50Hz. 1
Cooling power W 3,517
Nominal consumption (max.) W 1100 (1800)
Rated flow (max) 5.1 (8.0)
EER W/W 3.20
SEER W / W 5.10

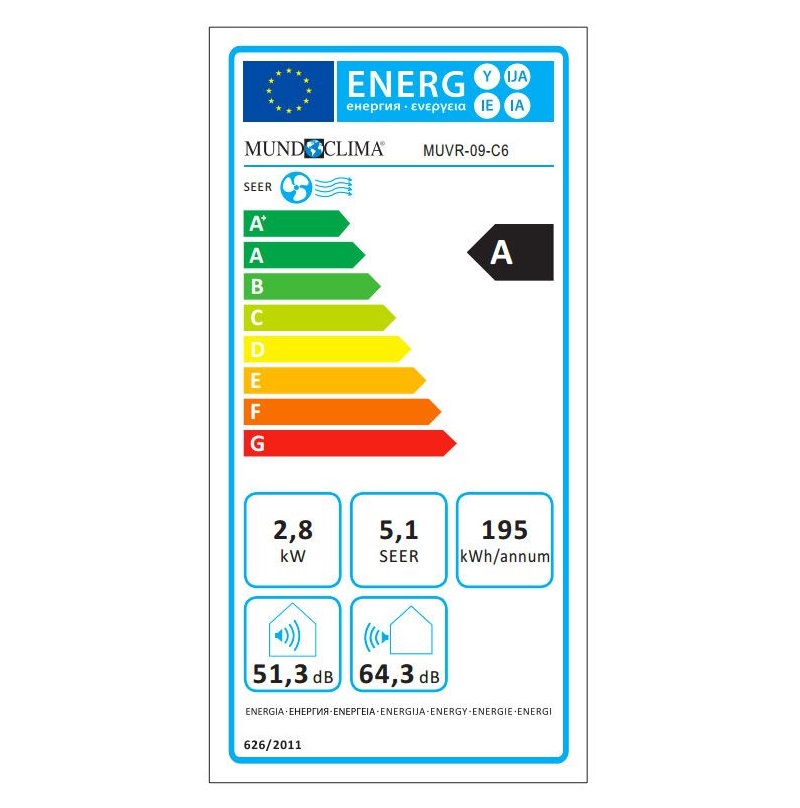

Energy label
ROTARY compressor / DC INVERTER
Model KSN108D22UFZ GMCC
Oil (ml) ESTER RB74AF OIL (370).
Indoor fan model ZKFN-37-8-1
Air flow (H / M / L) m3 / h420 / 366/310
Outdoor fan model YKT-30-6-218
Flow (HI / M / L) m3 / h680
Internal sound level (H / M / L) dB 52.4 / 51.6 / 50.7
External sound level (max) dB 63.6
Refrigerant (quantity k) kgR32 (0.4)
Design pressure MPa 1.7-4.8
Remote Control Model RG51
Indoor operating temperature 17 to 35 ºC
Outdoor operating temperature 18 to 43°C
Net dimensions (L x W x D) mm 560 x 400 x 670
Gross dimensions (L x W x D) mm 620 x 435 x 770
Net / gross weight Kg 42.5 / 47
