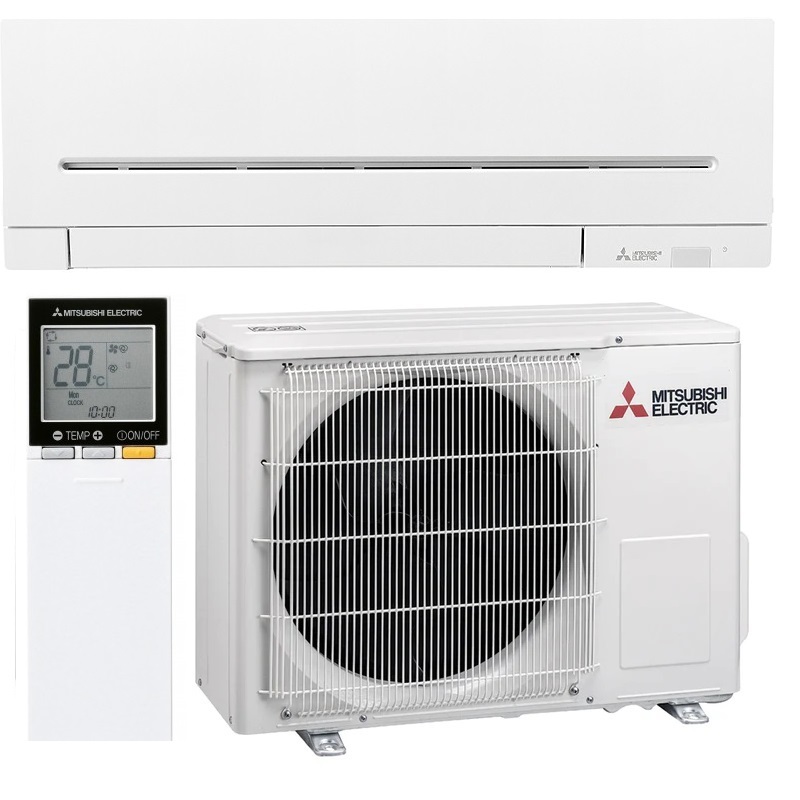

Air conditioner Mitsubishi Electric MSZ-AP25VG gas R32

Air conditioner Mitsushi Electric MSZ-AP25VG gas R32

Known for the most demanding consumers, it is associated with the new generation of units with R32 refrigerant offering the best energy efficiency A +++ and a minimum noise level of only 19 dB, 3 years parts warranty and 5 years compressor / 1 year accessories

The MSZ-AP series is part of the new generation of equipment with R32 refrigerant gas, It has the highest energy classification A +++ in cooling mode and an ultra-compact design that allows the indoor units to be placed in spaces confined and go completely unnoticed without changing the general aesthetics of the stay.

Compact design, The new MSZ-AP has an ultra-compact design that allows you to place the indoor units in tight spaces and go completely unnoticed without changing the overall aesthetics of the room, 15 and 20 capacities, available for Multisplit systems, and the 25, 35, 42 and 50 capacities available in simple 1x1 and Multisplit combinations allow different rooms in the house to be air-conditioned with the same design for all units.

Maximum energy efficiency, thanks to the introduction of the new R32 refrigerant gas, the new MSZ-AP has the highest energy classification: A +++ in refrigeration (SEER) and A ++ in heating (SCOP).

These high efficiency ranges guarantee maximum performance with minimum power consumption during the hottest days of the year.

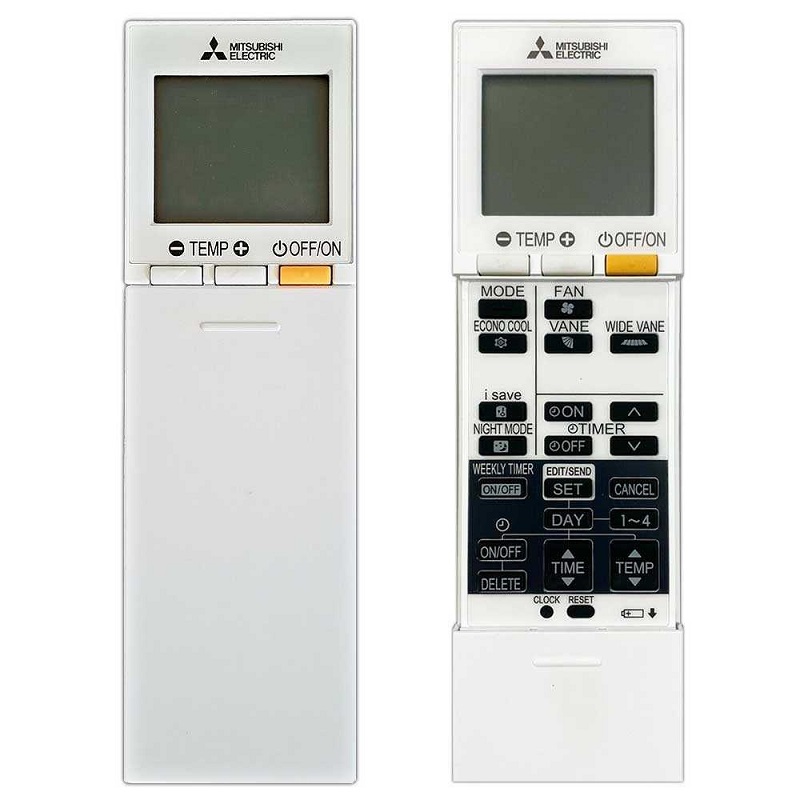

Total control of the blades thanks to the remote control ensuring optimal air conditioning in all corners of the house, it allows to Control the oscillation of the blade horizontally and vertically, improving the distribution of the air flow and heating quickly anywhere. what piece

Air Purifying Filter, The MSZ-AP range features a precise purifying filter containing platinum-ceramic particles that enhance air purifying functions by removing bacteria, viruses and allergens

In addition, the filter is so effective that it is able to capture even nanoscopic odor particles.

Built-in weekly scheduler, the MSZ-AP includes a weekly scheduler that allows you to easily configure the operation of the equipment automatically at different times of the day / week (up to 4 settings for each day of the week)

In this way, home comfort is improved and consumption levels are reduced as it prevents the machine from running when it is not needed.

Minimum noise level, Its ultra-quiet operation of only 19 dB allows you to create comfortable and relaxed environments, It is ideal for bedrooms, absolute silence is essential

Technical specifications Mitsubishi Electric MSZ-AP25VG
Refrigeration
Nominal cooling capacity (min / max) (kW) 2.5 (0.9 / 3.4)
Rated cooling consumption (kW) 0.600
EER / Energy class 4.17 / A
SEER / Seasonal energy class 8.60 / A +++
Operating range (°C) -10 / + 46

Heating
Rated heat output (min / max) (kW) 3.2 (1.0 / 4.1).
Nominal heat consumption (kW) 2.2
COP / Energy class 4.10 / A
SCOP / Seasonal energy class 4.80 / A ++
Operating range (°C) -15 / +24

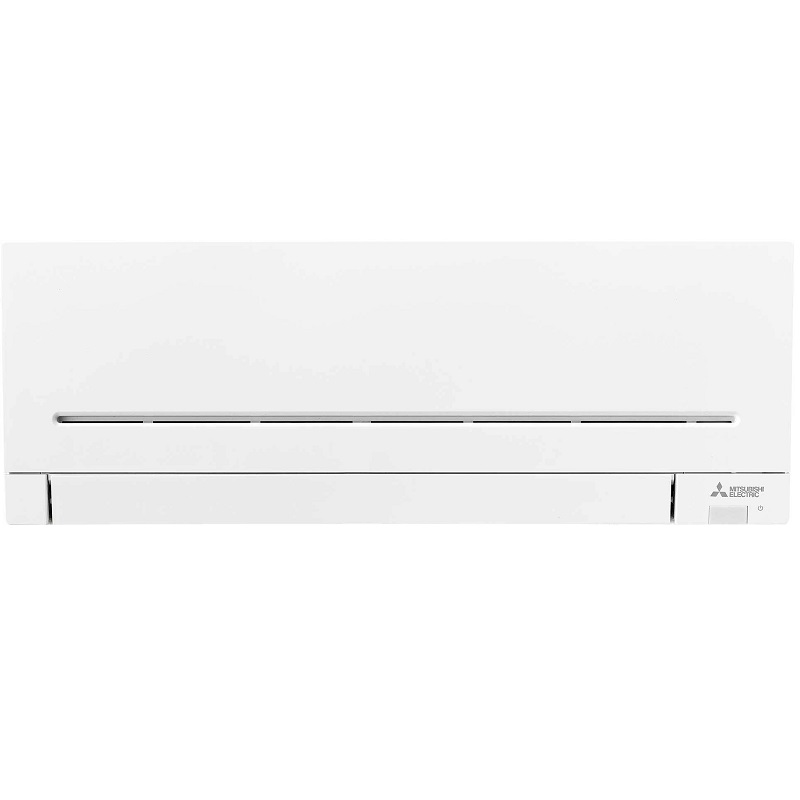

Indoor unit MSZ-AP25VG
Cold air flow S / PV / MV / GV / SGV (m3 / min) 3.5 / 3.9 / 4.6 / 5.5 / 6.9.
Sound pressure at 1 m S / PV / MV / GV / SGV (dB (A)) 19/24/30/36/42.
Sound power in dB (A) 57.
Height x width x depth (mm) 299 x 798 x 219.
Net weight (kg) 10.5.

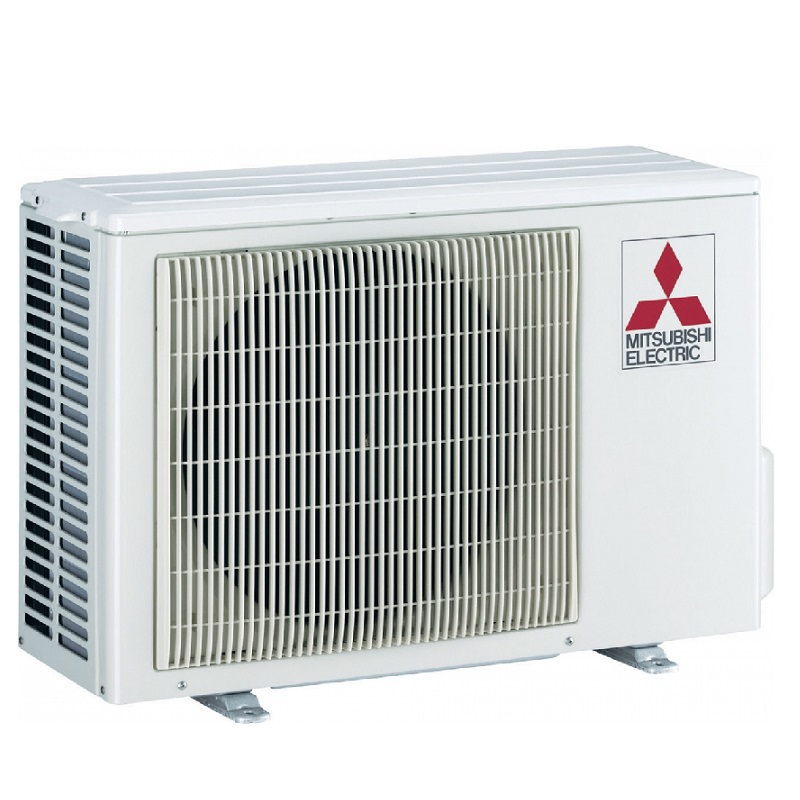

Outdoor unit MUZ-AP25VG
Cold air flow GV (m3 / min) 32.2
Sound level dB (A) 47.
Sound power in dB (A) 59.
Height x width x depth (mm) 550 x 800 x 285
Net weight (kg) 31
Diameter of liquid pipe (inches) ¼, Diameter of gas (inches) 3/8.
Maximum length / Maxmax slope (m) 20/12.
Fluid / PRP (- / -) R32 / 675.
Power supply for outdoor unit V-50Hz 230V (1P + N + E).
Outdoor unit cable (mm2) 3x2.5.
Internal / external union cable (mm2) 4x1.5
Electrical protection (A) 10.
