Tekna FM3506HY air curtain width 600 mm

Tekna FM3506HY air curtain width 600 mm

Tecna FM3506HY horizontal air curtain of one meter with 3-speed centrifugal fan Ambiente Series (without heating) of 600 mm and for an installation height of 2.3 to 3 meters, the main purpose of the air curtains is to differentiate environments, preventing air exchanges. temperature between air-conditioned and non-air-conditioned areas.

Air curtain with Tecna remote control, painted metal housing, of great resistance, it is ideal for preventing the entry of outside air both in summer and in winter and improves energy efficiency against thermal load external, suitable for bars, commercial stores and places open to the public. public

This type of air curtain maintains the cooling or heating of the room where it is installed, thus allowing savings on the electricity bill and, in addition, allows creating a clean and healthy atmosphere, free from odors and contamination from the outside.

In rooms with high thermal load from the outside where the doors are open, thanks to this Tecna air curtain it is possible to reduce energy losses by up to 90%.

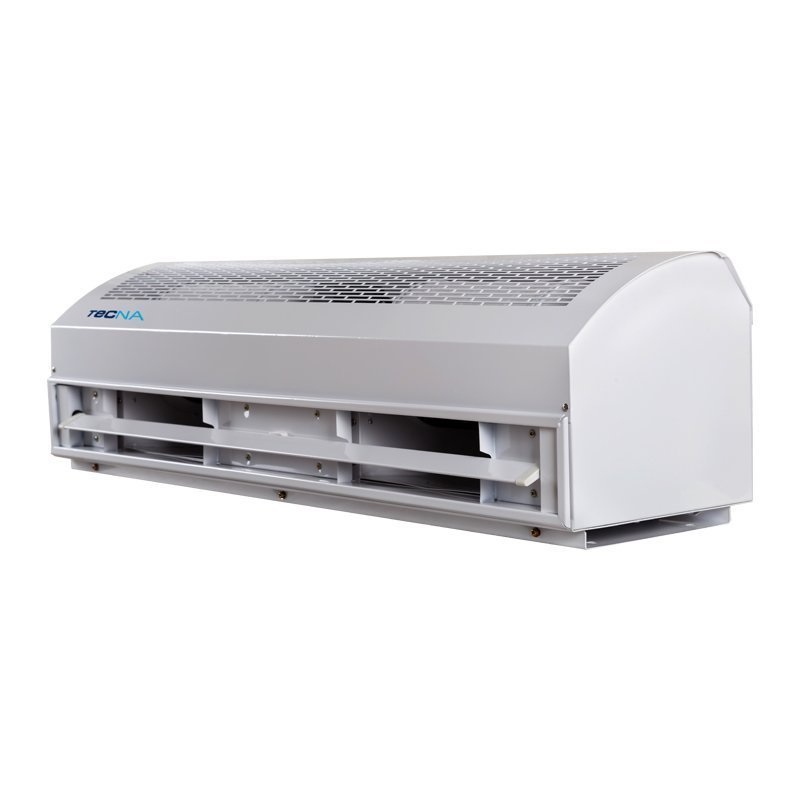

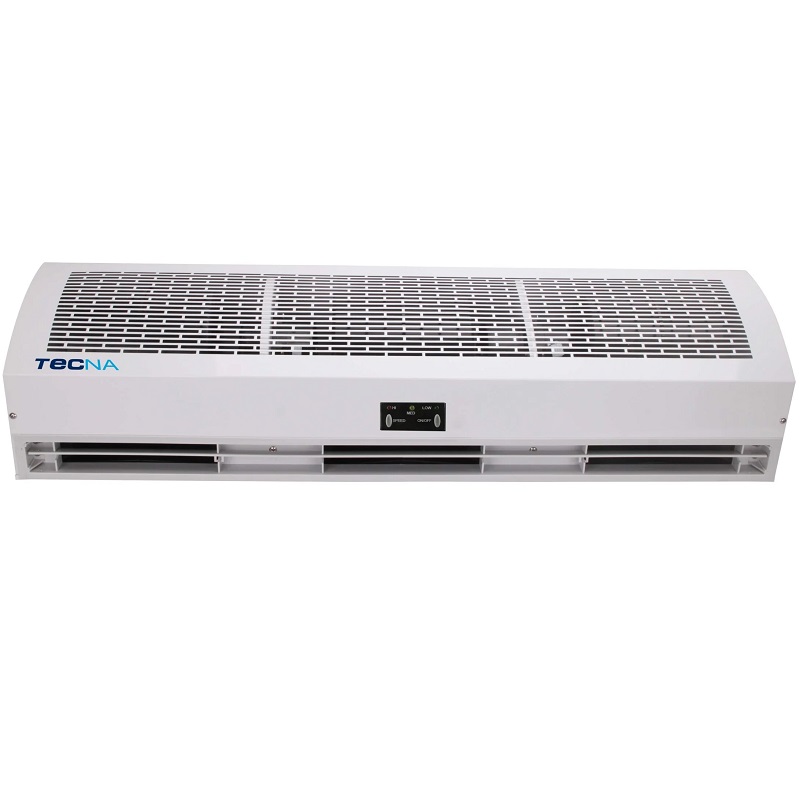

Horizontal air curtain Tecna Ambient FM3506-HY
With centrifugal fan
No heating
motor power 155 W
flow rate 532 m3/h
sound level 49 dB(A),
air outlet speed 11.2 m/second
weight 10.8 kg.
Dimensions L.600 mm x H.230 mm x D.212 mm
