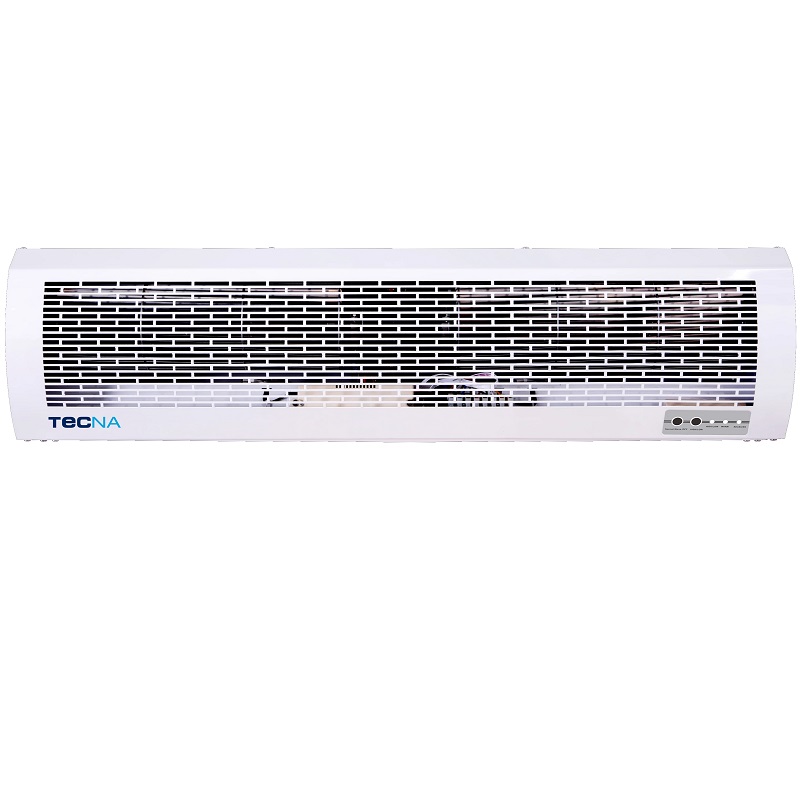

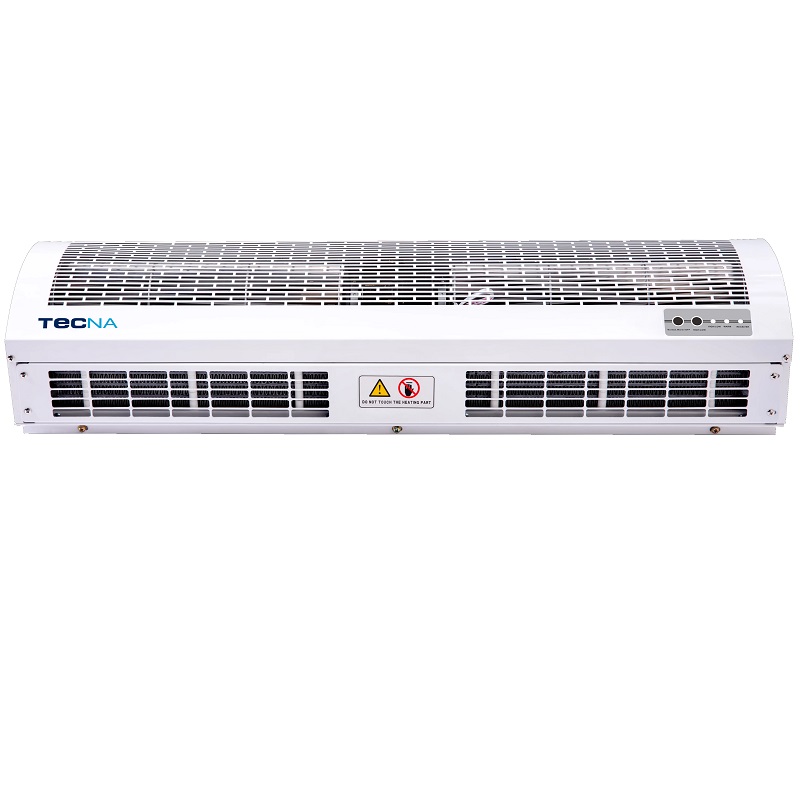

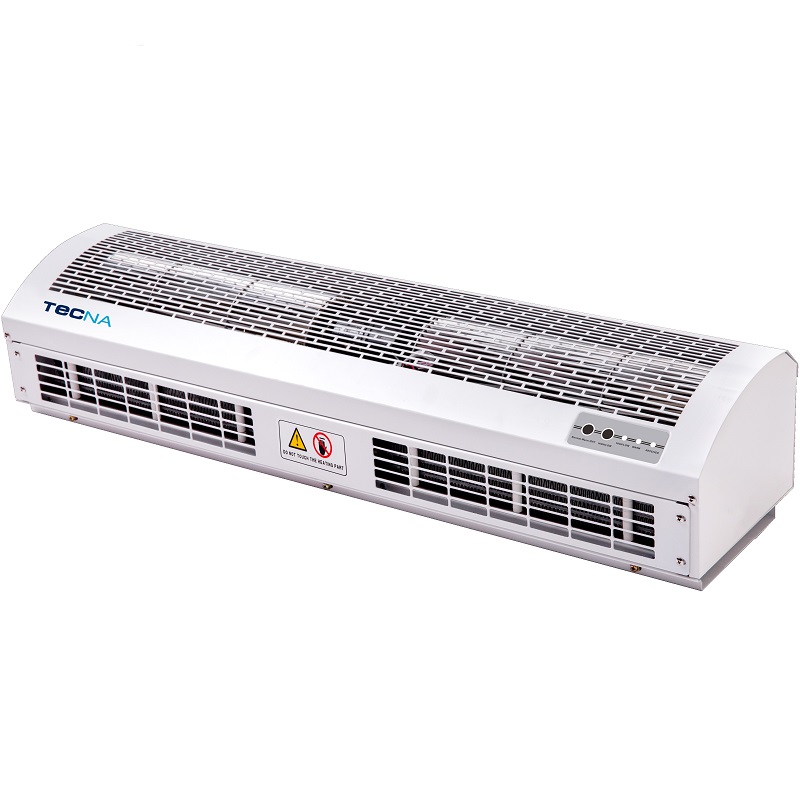

Tecna RM125-15-3D/Y-B1-S air curtain, width 1500 mm power 9/6 kW

Tecna RM125-15-3D/Y-B1-S air curtain, width 1500 mm power 9/6 kW

The Tecna RM125-15-3D three-phase horizontal air curtains, and for an installation height of 2.3 to 3.0 m, are an ideal complement to your air conditioning equipment since in summer they prevent heat from penetrating from the outside to the inside and in winter they prevent the cold from penetrating.

In this way, energy is saved since the interior temperature of the premises is maintained without being affected by exterior temperatures, designed for commercial premises located in areas with high pollution and extreme temperatures.

With fan speed and PTC ceramic electric resistances with non-electrified surface, which guarantee maximum safety and quick start-up, as well as electronic control with position for ambient air or powerful heat, very efficient and low consumption, controlled by remote control, including control.

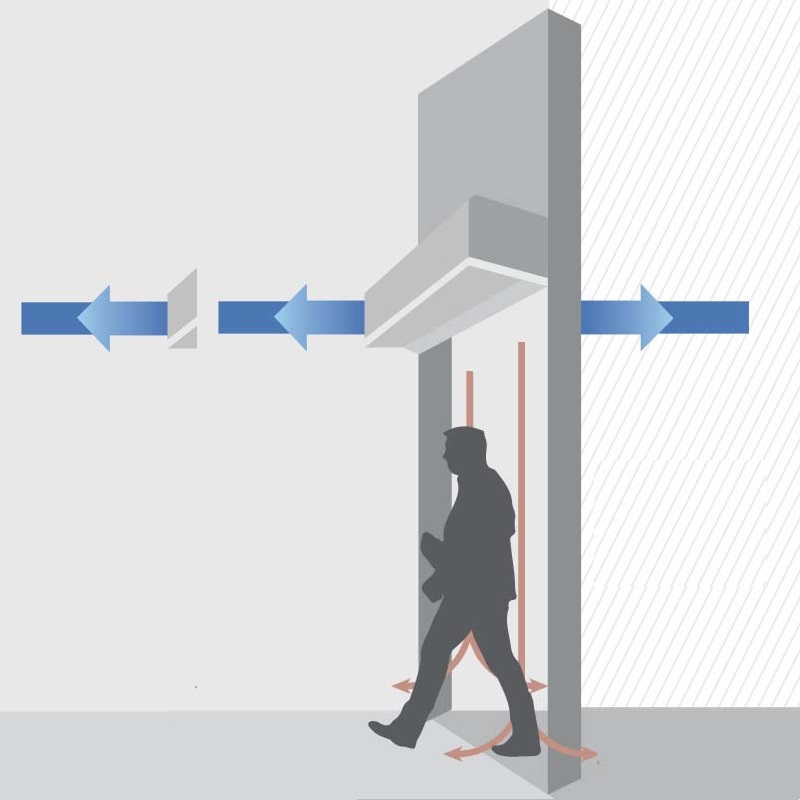

Principle of operation
Air curtains are designed for use at store entrances, in industrial buildings and in all types of premises. Their main use is to differentiate environments, avoiding thermal exchanges between heated and unheated areas. These devices discharge an air curtain which effectively closes the outside air intake, they are also used to prevent the entry of insects, unwanted odors and dust inside.

Heated
These ambient air curtain units feature heating for situations where it is necessary to maintain a temperature in a certain location, the heating principle is done by ceramic electric resistance.

Model RM125-15-3D/Y-B1-S.
Width: 1500 mm.
Installation height: 2.3-3.0 m.
Power: 300 W.
Air outlet speed: 7.5 m/sec.
Flow rate: 1,670 m3/h.
Weight: 26 kg.
Dimensions (width x height x depth): 150 x 22.1 x 18.3 cm.
