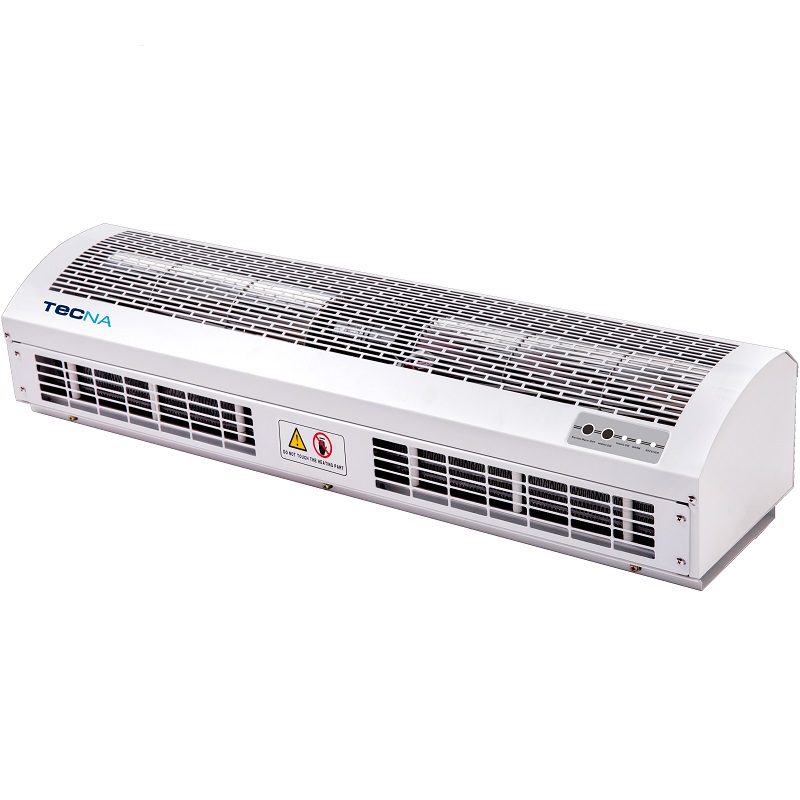

Tecna RM 125-20-D/Y-B2-S air curtain, width 2000 mm, power 6 kW
Designed for any type of commercial installation.
These are devices offering high levels of efficiency and quality, at an affordable price.
The commercial type electric resistance curtains in this range are single-phase 1Ph ~ 230V/50Hz.
When unpacking the curtain, you will notice that a meter of three-wire cable of corresponding section depending on the consumption of the equipment is provided on the upper rear part of the equipment.
Easy installation.
High quality motor to work more than 5000 hours with 2 speeds.
Heating option, with low consumption ceramic electric heaters (single-phase and three-phase).
Wide variety of sizes to cover a wide variety of door widths
For door heights between 2 and 3 m.
Includes control button
Model RM125-20-D-Y-B-2-S
Width 2000 mm
Voltage and frequency 220v/50Hz/1Ph
Air outlet speed 7 - 7.5 (m/sec.)
Installation height 2.3 - 3.0 meters
Motor power 140/200 W
Flow rate 2110 m3/h
Sound level 57 dB(A)
Dimensions W x H x D 2000x221x183 mm
Weight 32 kg
