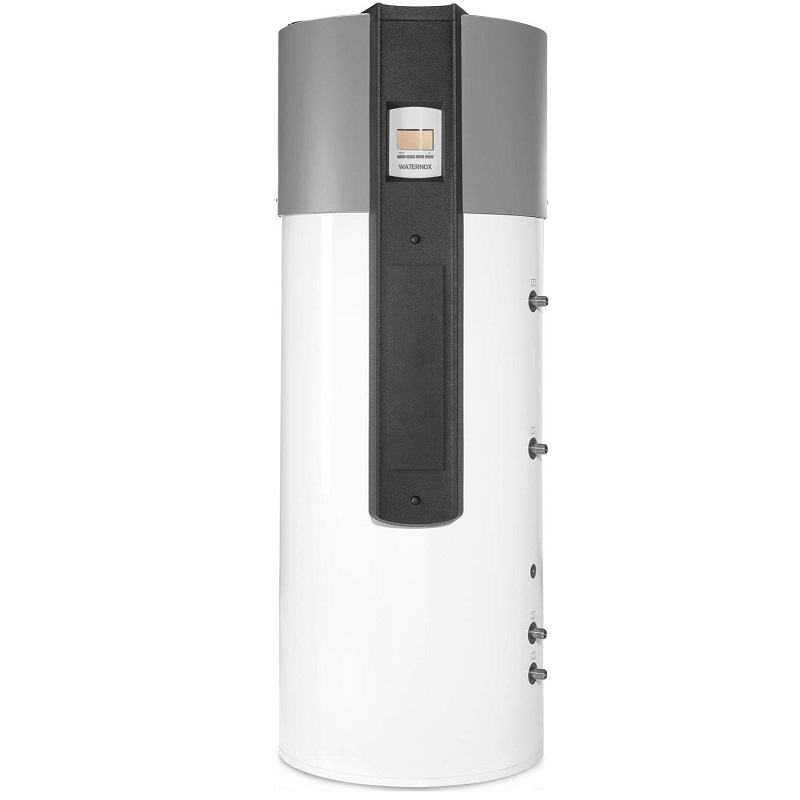

Heat pump JUNKERS SWO 270-3X 270 liters (With coil)

Heat pump JUNKERS SWO 270-3X 270 liters (With coil)

Junkers SWO 270-3X 270 heat pumps, for the production of domestic hot water, are high efficiency equipment in the production of A.Q.S.

Biggest Savings
They allow significant energy savings, more than 70% compared to other water heater systems.
The electronic temperature control allows greater comfort and greater energy savings.

Comfort and availability of hot water
Model with 260 liter tank, allows great availability of hot water, up to 472 liters of A.Q.S. at 40ºC (in the 260l model).
Support with electrical back-up (2kW resistance) to reduce heating time during peak consumption periods.

Solar System Compatibility
The models with coil are compatible with the installation of a solar thermal system.
These devices have a coil of 1m2

This makes them compatible with solar thermal systems, allowing for lower energy costs and faster recovery.

Integrated LCD display
They feature a large LCD display that shows all relevant information and allows a simple interface for making settings, programming and configurations.

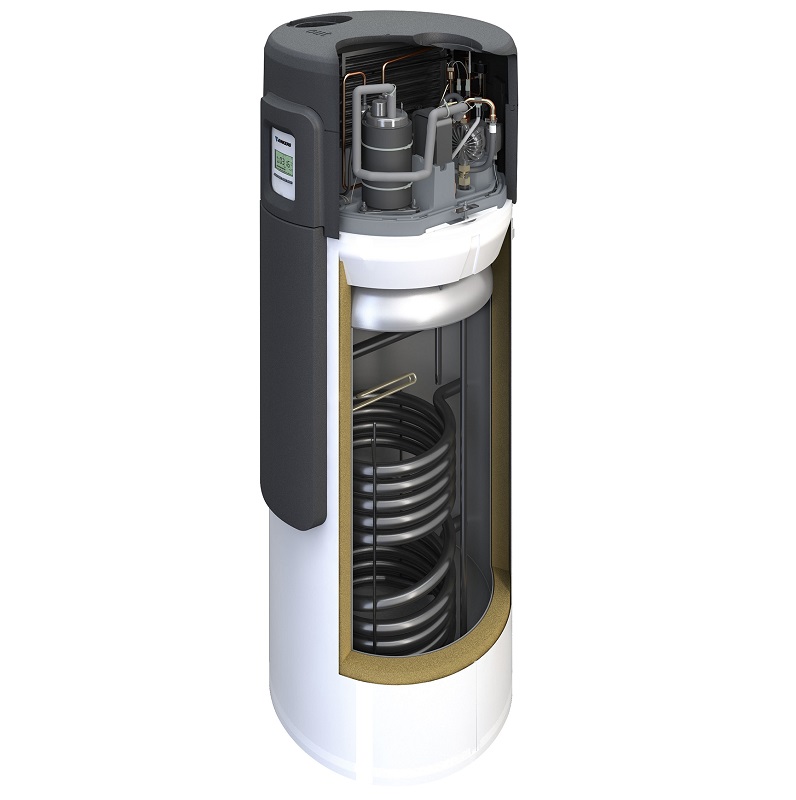

Vitrified steel tank with thermal insulation in rigid polyurethane foam, CFC-free

Magnesium anode for protection against galvanic corrosion inside the tank.
Completely separate cooling and potable water circuits

Model with coil, integrated LCD screen, anti-corrosion magnesium anode and high pressure switch to protect the refrigeration circuit
High COP at low outside temperatures 2.98.

Energy savings over 70%
Air service temperature: -10º C / + 35º C.
LCD screen with 4 control buttons. “Anti-legionella” function.

Features
System type: air-water
Mounting: floor
Useful deposit volume: 260
Cathodic protection: yes
Refrigerant gas: R134a
Number of coils: 1

Resistance
Electrical resistance: yes
Resistance power: 2000 W

Pressure
Circuit pressure (Max.): 8 bar
Tank pressure (Max.): 8 bar

Temperature
Temperature control: electronic
Water Temperature (Max.): 70º C

Dimensions
Height: 1835mm
Width: 700mm
Depth: 735mm
Bowl material: vitrified steel
Diameter (mm): 700mm

Energetic efficiency
Energy efficiency: A
