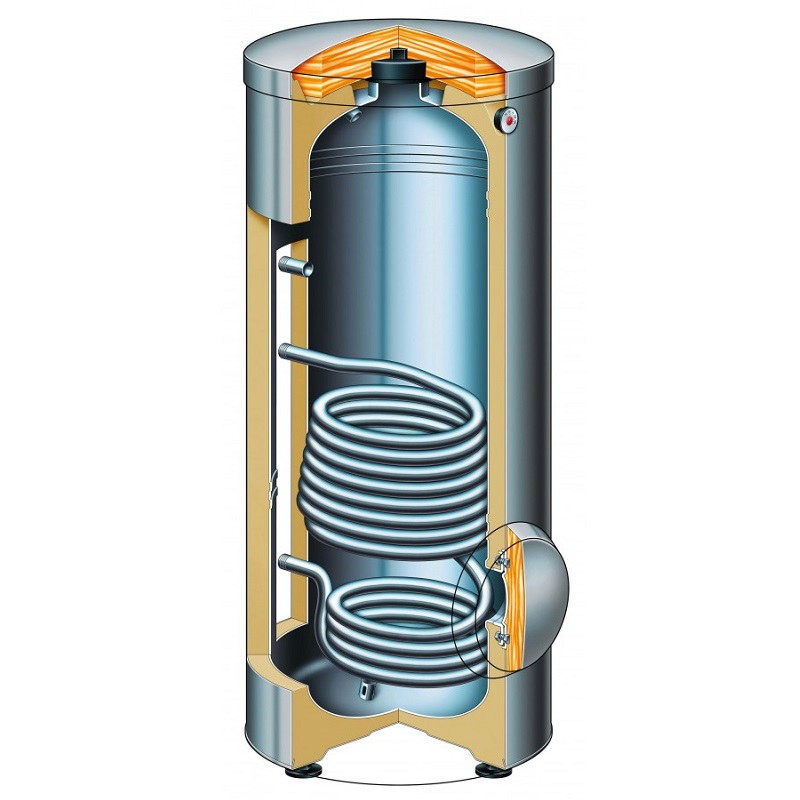

Idrogaz vitrified storage tank with CV 300 M2P vertical coils

Idrogaz vitrified storage tank with CV 300 M2P vertical coils

Accumulators for the production of DHW by an external energy source (boiler, solar panels, etc.)

They can be fitted with electric immersion heaters or ceramic electric heaters.

The tanks with a capacity of 300 liters incorporate an insulation system that allows access through 800 mm doors. lenght.

Prepared for vertical wall installation up to the model with a capacity of 150 liters
Cathodic protection with magnesium anodes and anode load meter.

Finished with RAL 9016 white quilted lining
Version available suitable for outdoor use +20%
Tanks for the production and accumulation of DHW, in vertical installation on the floor, as individual tank, installation in series or installation in parallel, in vitrified steel according to DIN 4753.

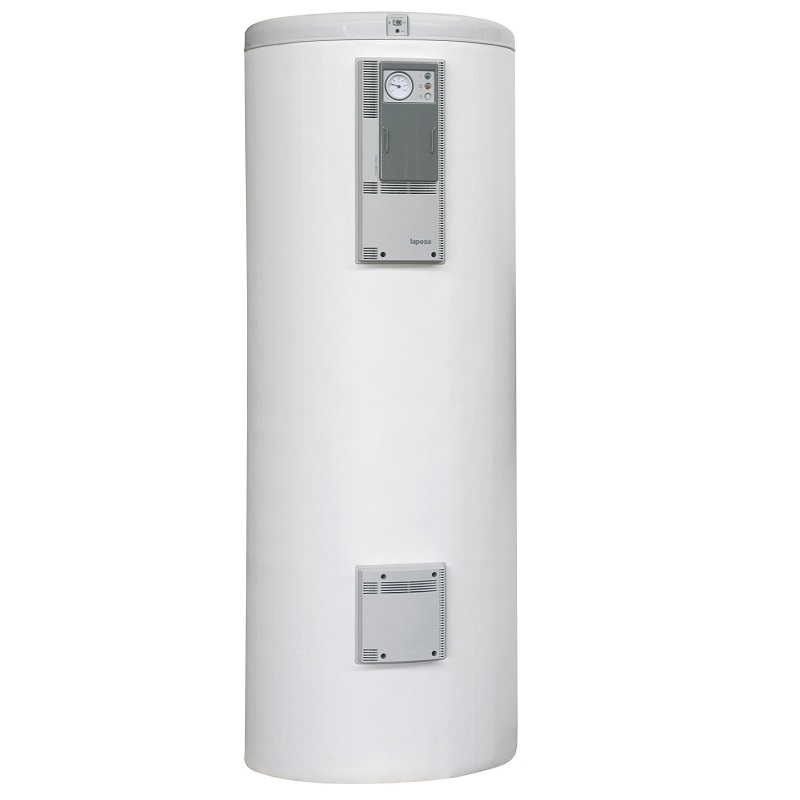

They come standard with a control panel with a thermometer and a magnesium anode with a load meter for cathodic protection of the tank.

As an option, complete electrical equipment is supplied, consisting of electrical resistance and control panel with thermometer, double thermostat for temperature and safety regulation, winter-summer switch and operation indicator lights.

Thermal insulation with CFC-free injected molded rigid polyurethane foam and exterior finish, with removable padded polypropylene liner and covers

All models are supplied with a side inspection opening.

CV 300 M2P capacity 300 liters
Maximum DHW storage temperature °C 90
maximum pressure DHW tank bar 8
Maximum storage temperature °C 200
maximum pressure spool bar 25
Lime circle exchange surface. m 2 0.7
Lime circle exchange surface. m 2 1.8
Dimensions
Diameter 620mm
height 1685mm
Energy class B
Static losses W 67
