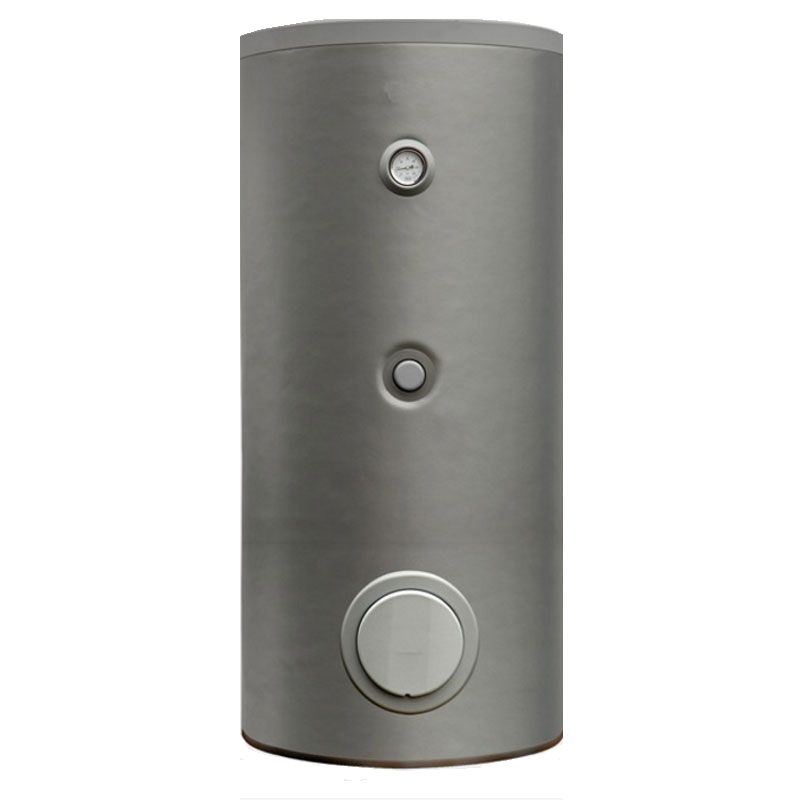

Thermoaccumulator Idrogaz ACS series MAGNUS 300 liters

Thermoaccumulator Idrogaz ACS series MAGNUS 300 liters

Idrogaz heat pump thermoaccumulator ACS series MAGNUS 200 liters for the production of domestic hot water for domestic or industrial use.

Manufactured in carbon steel ST 37.2 Ideal for the storage of drinking water according to regulation 1935/2004.

The interior coating is protected against corrosion by means of a magnesium anode which ensures its cathodic protection.

Supplied with rigid polyurethane insulation with a density of 40 Kg/M3 and an insulation thickness of 50 mm.

The exterior finish is in gray PVC sheath.
The storage tanks comply with the criteria for ecological design according to regulation 814/2013 and energy labeling according to regulation 812/2013.

Dimensions:
Capacity 300 liters
Design pressure in tank 8 Bar
Design pressure coil 10 Bar
Design temperature 95ºC in both cases
3 year warranty.

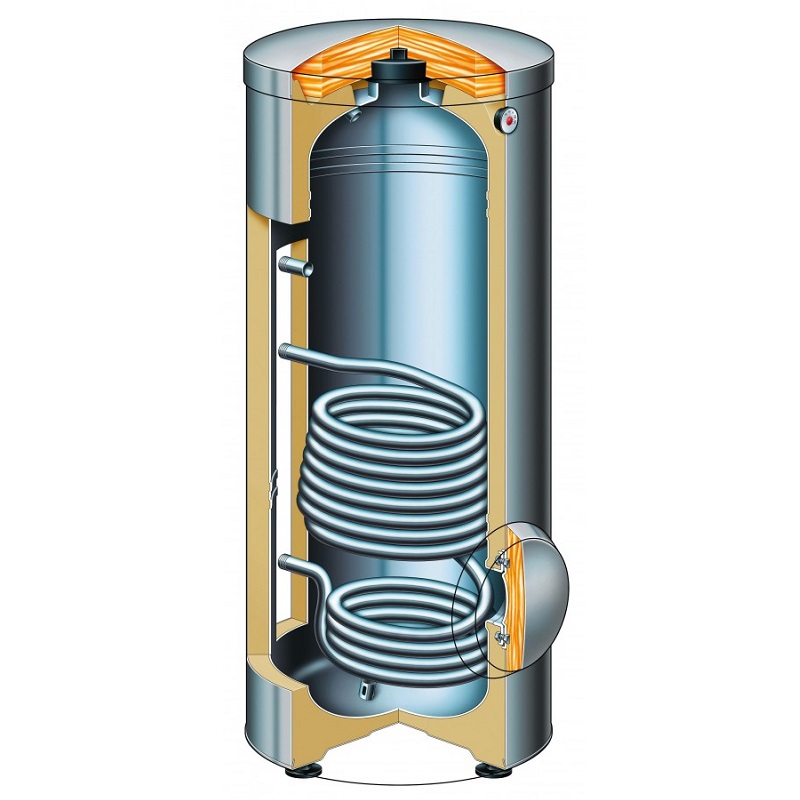

Spool: 20.4L. 3.3 m2
Empty weight: 131 kg.
Temperature: 95°C.
Pressure: 15 bar.
Height: 1801mm.
Diameter: 610mm.
