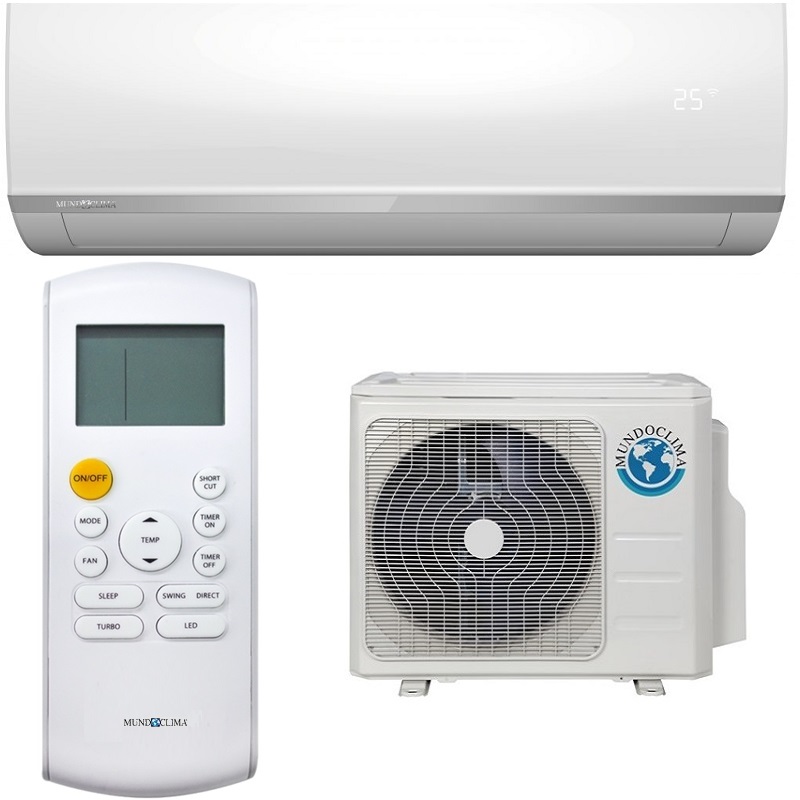

Air conditioner Mundo clima MUPR-24-H7 7.3 kw

Air conditioner Mundo clima MUPR-24-H7 7.3 kw

Easily removable, reduces maintenance time by 30% with easy access to PCB, removable fan, movable casing
High capacity connectivity, control your new Mundo clima air conditioner from anywhere
Possibility of connecting different control devices, between them a wifi module
Filters more accessible, reduces cleaning time by 5%
Prevents dirt from falling without opening the panel

Automatic restart
Recovery of pre-cut adjustments, low temperature refrigeration
Refrigeration operation down to -15ºC outside.
Emergency operation
Ability to operate the unit with the manual button in case a few alarms sound
Turbo operation, reduce refrigeration/heating time to the maximum
Prevention of cold air, in heating the speed of the initial fan adapts according to the temperature of the coil

Standby function (only 1W in rest)
The external unit is automatically disconnected from the power supply when it is in rest, of this form the consumption in rest is of only 1W
Low sound level, thanks to the Silence mode and its new design, the sound level is reduced to a minimum of 22 dB

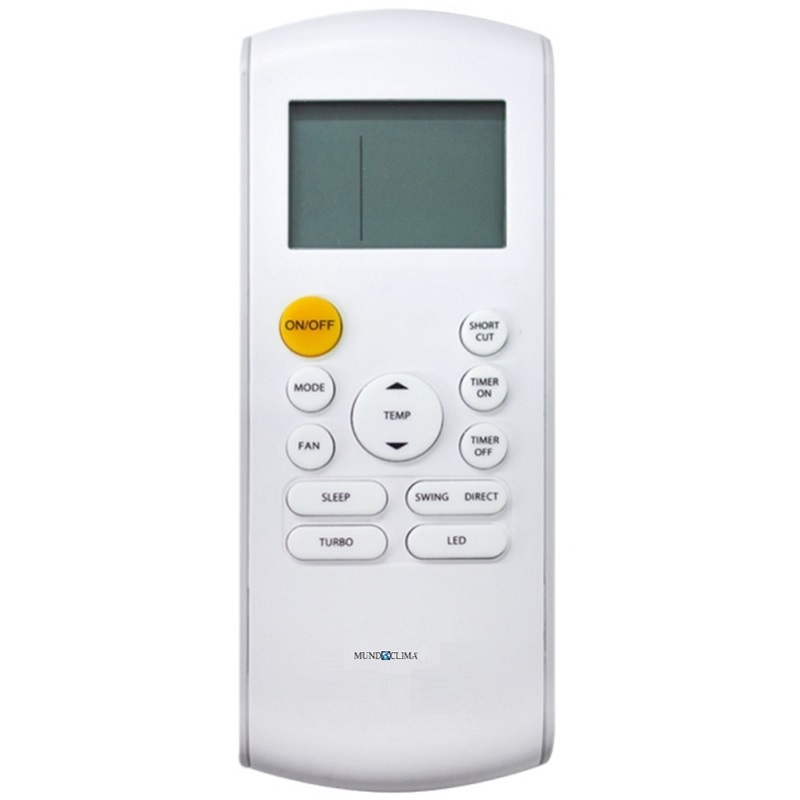

Temperature compensation, the new remote control can adjust the compensation temperature for the heating mode
Multiple outdoor fan speeds, precise fan speed adjustment by DC motor
Fewer screws both the indoor and outdoor unit have fewer screws, making disassembly much easier
Wide operating range, cooling operation up to 50 ºC and heating up to 15 ºC.
Several indoor fan speeds, up to 12 speed levels that adapt automatically if the automatic ventilation is activated, adjustment of the set temperature range
The new remote control allows to adjust, min. from 17 ºC - 24 ºC; Heating max. from 30ºC - 25ºC
Quieter outdoor unit, an optimized design of the air outlet grille with a noise reduction of 3.3 dB (A) compared to previous models
Rated cooling capacity (minimum-maximum): kW 7.32 (3.04 – 8.44)
Rated heat output (minimum-maximum): kW 7.61 (2.08 – 9.43)
SEER/SCOP: 6.4/4.0
Cold/heat energy class: A++/A+
Nominal consumption in cooling and heating: 2.26/2.11
Power supply V~,Hz, Nb phases: 220~230.50.1
Super DC Inverter Type
Liquid pipe diameter “/mm: 1/4"/6.35
Gas pipe diameter “/mm: 5/8"/15.90

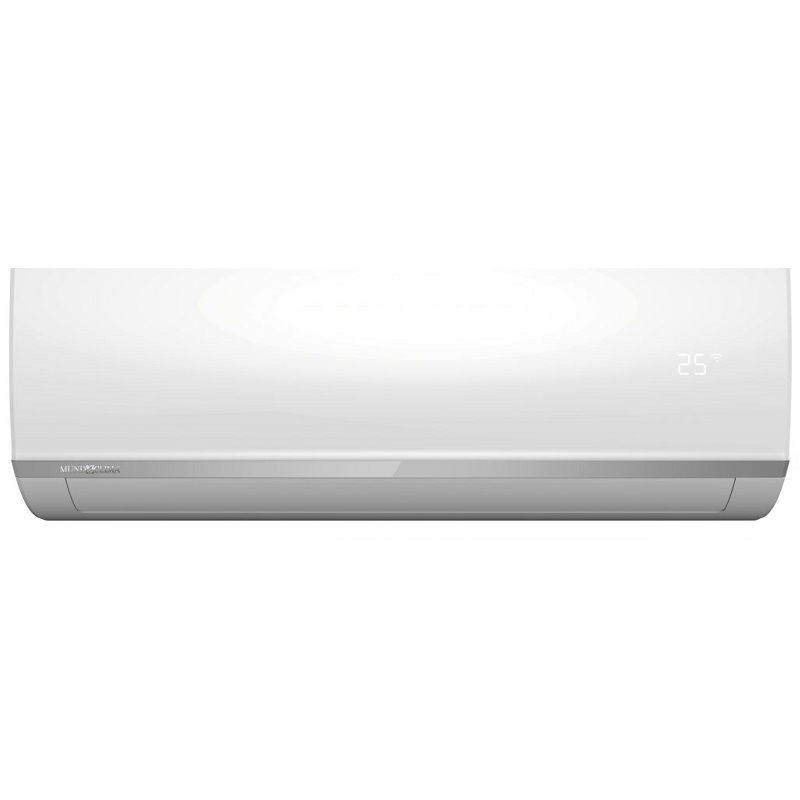

Indoor unit
Interconnection cables: 3x1.5+T
Dimensions
Width 1106mm
height 342mm
depth mm 232 mm
Indoor unit weight 14.3 kg
Air flow 1050 m3/h
interior sound pressure
Minimum - maximum 27/46 dB(A)

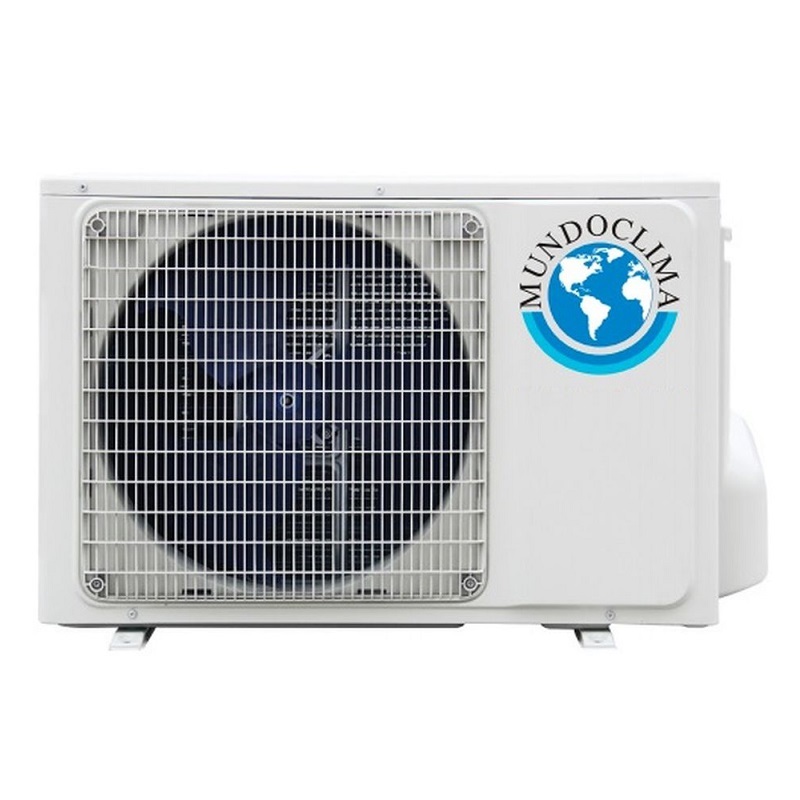

Outdoor unit
Power cables: 2x2.5+E
Dimensions
Width 845mm
Height 702mm
Depth 363mm
Outdoor unit weight 50 kg
Sound pressure 59dB(A)
PCA refrigerant gas type: R32
Quantity of refrigerant gas R32 kg: 1.6
Refrigerant charge for meters

Options
Without mounting kit.
3, 5 or 6 meter assembly kit
