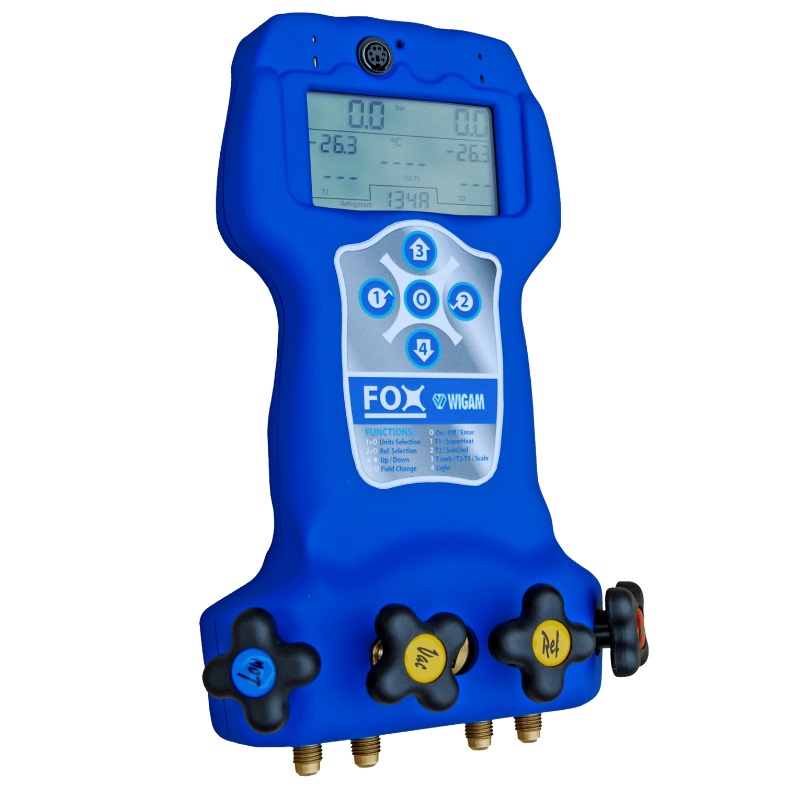

Wigan FOXR717 Digital Analyzer For R717 (Ammonia)

Wigan FOXR717 Digital Analyzer For R717 (Ammonia)

Electronic gauge assembly supporting a very large number (56) of refrigerants. In addition to CFCs, HCFCs, HFCs include ammonia, propane, isobutane, nitrogen and others. The device also allows you to add new items to the memory.
The analyzer features automatic superheat and subcooling calculation, as well as “Zero Plus,” which allows accurate near-zero pressure readings.

Specification
4-way valve assembly with double seal valve piston
Calculation of superheating and subcooling
Operation with 56 refrigerants (CFC, HCFC, HFC, hydrocarbons), with the possibility of adding new ones
Equipped with 2 type K thermocouples (with 3 meter cable)
Temperature measurement detector installed in a housing
2 pressure transmitters (range -0.99 to 49.90 bar)
Max. Operating pressure: 56 bars
Accuracy: better than 1% FS
Temperature range: -99.9 to 400°C.
Screen with backlight
Pressure measurement units: bar, PSI, mPa
Units of temperature measurement: oCoF

The “Zero Plus” provides accurate pressure readings close to zero.
Low and high vacuum measurement (accuracy 0.01 bar)
Instant update measurements performed
Auto power off (shutoff time can be set by user)
Cooperation with all type K thermocouples
Hook for hanging.
Robust design with “soft” feel material
Ergonomic design
Power supply: 9V battery
Battery life: approx. 40 hours
Low battery indication, automatic shutdown, low battery warning
Mains power supply possible (mains adapter available as an option)
The display
low side pressure
High side pressure
Temperature T1
Temperature T2
Temperature Ambient temperature Vapor saturation
liquid saturation temperature
temperature difference (T2-T1)
Subcooling overheating

The type of refrigerant
Operation 56 types of refrigerants R134a, R407C, R410A, R404A, R507, R152a, R290 (propane), R600a (isobutane), R11, R12, R22, R502, 1234yf, R13, R13B1, R14, R21, R23, R41, R50 (methane), R113, R114, R115, R116, R123, R124, R125, R141b, R142b, R143a, R170 (ethane), R218, R227, R236ea, R236fa, R245ca, R245fa, R318c, R365m, R401b, , 02a , R402b, R409A, R413a, R417A, R422a, R422d, R423a, R427a, R728 (nitrogen), R740 (argon), R764 (sulfur dioxide), R717 (ammonia).
The possibility of storing other refrigerants in memory (re-configuration possible when connecting to a computer)

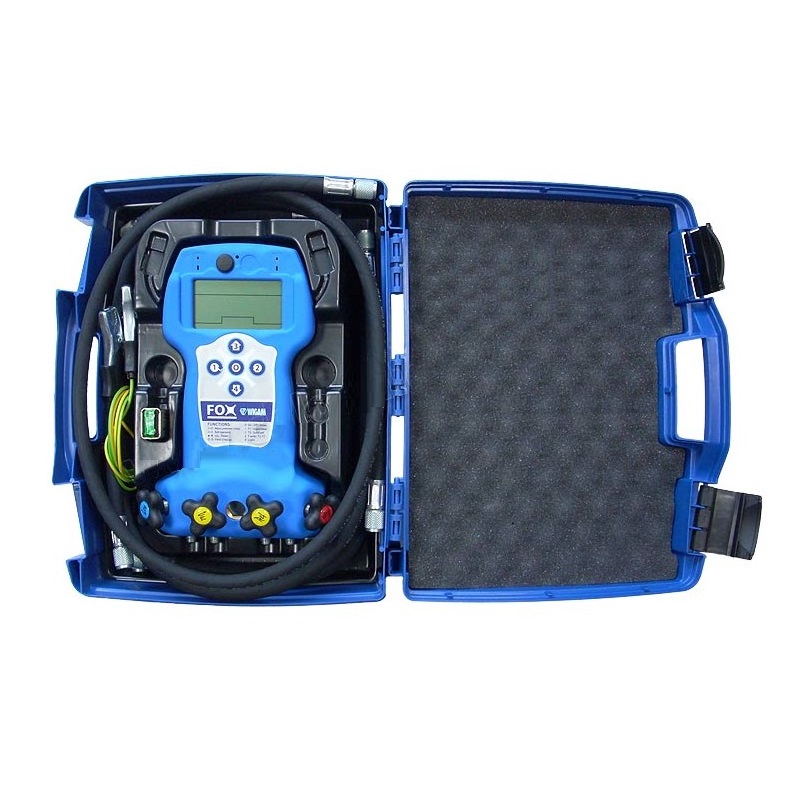

Included in the kit
4 pipes 150 cm.
2 type K thermocouples
2 thermocouple jaws
Earthing
9V battery
Suitcase included
