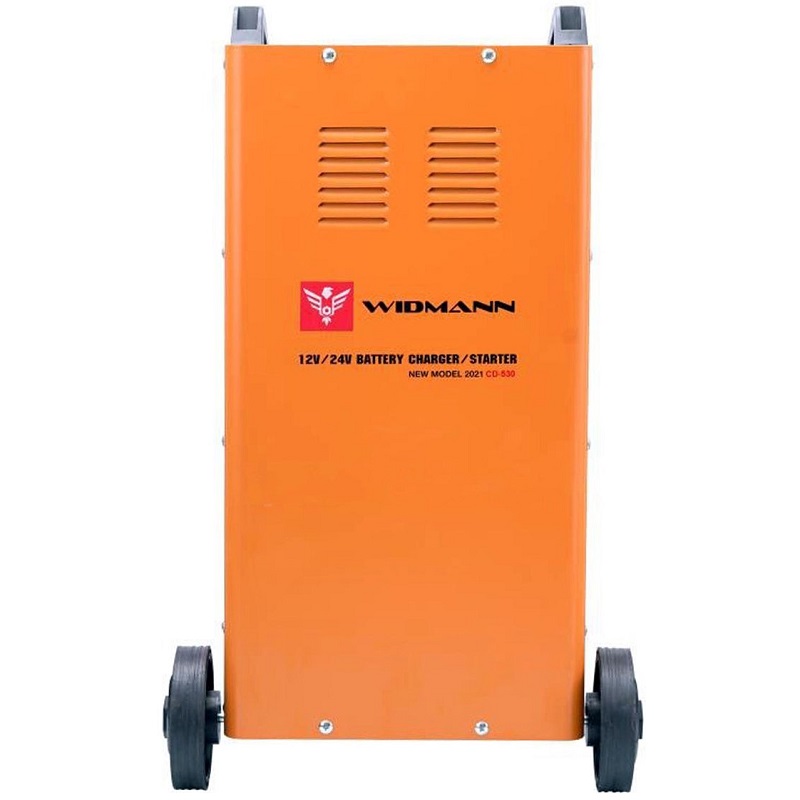

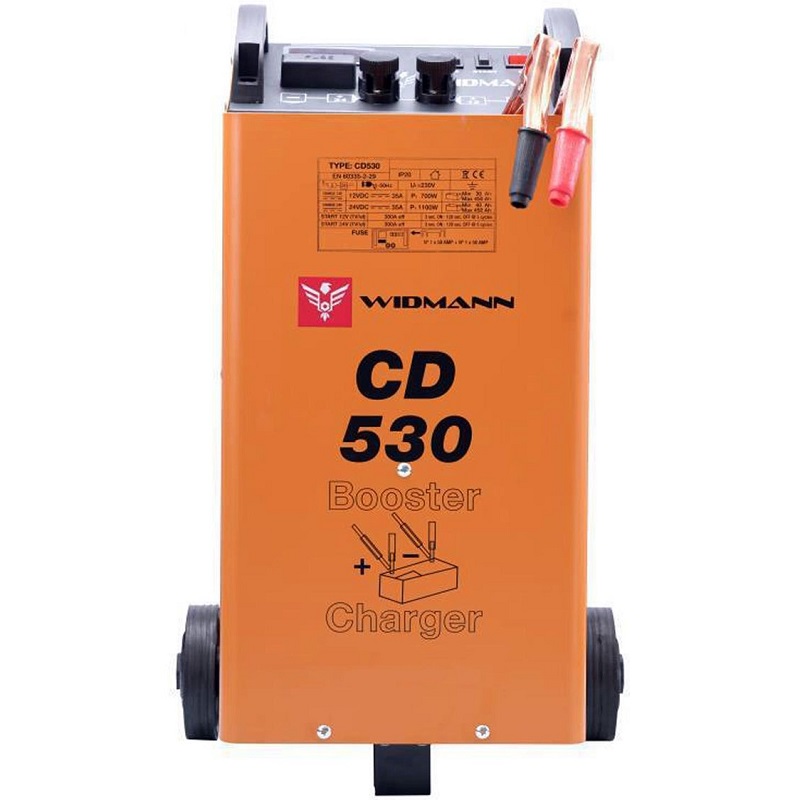

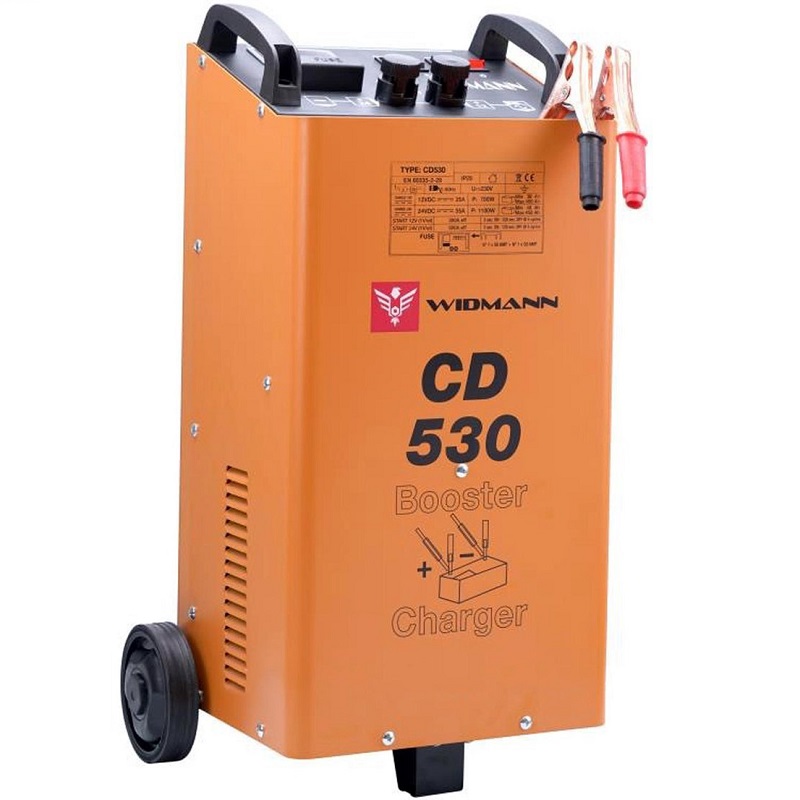

Widmann CD-530 battery charger and starter, 12V/24V
Choose the appropriate voltage (12V or 24V) and connect the charging clamps well

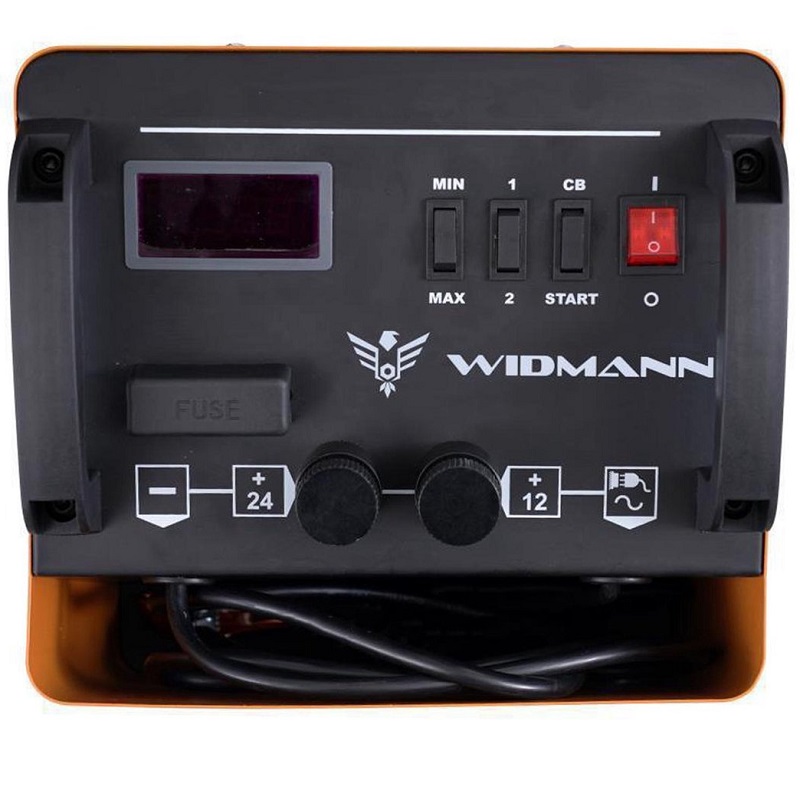

Turn switch 2 to CB, and switch 4 to MINMAX, and switch 3 to (slow charge) or 2 (fast charge);
Turn switch 1 to I and start charging;
When starting the vehicle engine, first turn the function switch to "start", then
turn on the power switch, wait for 2 minutes, finally start the motor for 3 seconds,
if the engine fails to start 3 or 4 times, please wait 10 minutes and repeat
the operation mentioned above.
Features
Input voltage (V) 1ph230
Frequency (Hz) 50
Input power (W)
12V 700
24V 1100
Rated output (A)
12V 35
24V 35
Starting current (A) - 300 eff
Battery capacities (Ah) - 30-450
Adjustment positions - 5
Output fuse (A) - 1*50
Degree of protection - IP20
