Teka DVN 77050 TTC BK decorative hood
Three speeds + intensive
Extraction capacity
Free flow (m³/h): 475
maximum. (m³/h): 485
Min (m³/h): 260
Maximum sound power: 64 dB
Minimum sound power: 54 dB
LED lighting
Aluminium filters
Timer
Filter saturation indicator
Performance
Maximum extraction capacity: 485 m³/h
Extraction type: Ducted/Recirculation
Fluid dynamic efficiency index: A
Grease filtration efficiency index: C
Number of speeds: 4
Intensive speed: Yes
Sound level: 54 dB
Sound level (low speed): 54 dB
Sound level (high speed): 64 dB
Sound level (intensive speed): 71 dB
Design
Type: Wall
Product colour: Black
Timer: Yes

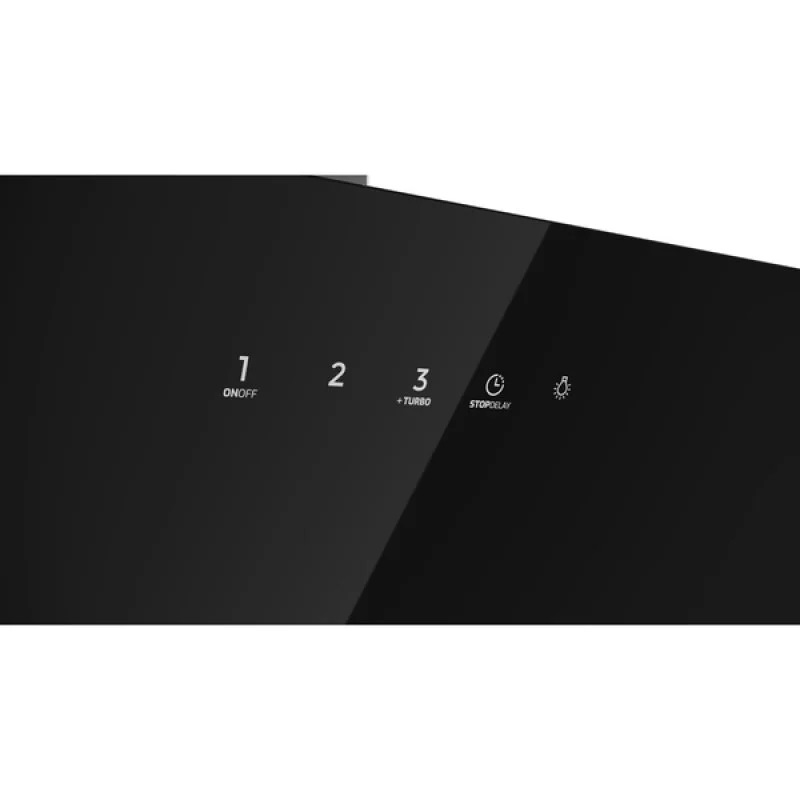

Control type: Touch
Non-return valve: Yes
Number of motors: 1
Number of filters: 1 piece(s)
Cleaning filter indicator: Yes
Lighting
Lamp power: 1.5 W
Number of lamps: 2 lamp(s)
Bulb type: LED
Illuminance: 204 lx
Energy management
Energy efficiency class: A
Energy efficiency scale: A+++ to D
Motor power: 230W
Annual energy consumption: 46.5 kWh

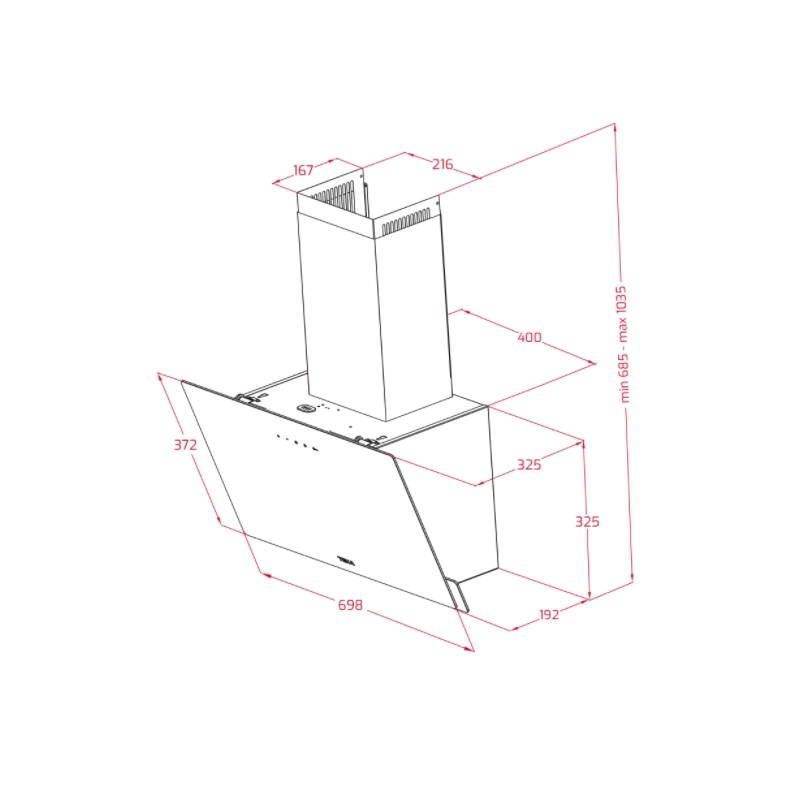

Weight and dimensions
Cable length: 1.5 m
Width: 698 mm
Depth: 325 mm
Height (min.): 69 cm
Height (max.): 103.5 cm
Weight: 11.2 kg
