Teka DBP70 PRO Inox 70 cm decorative hood

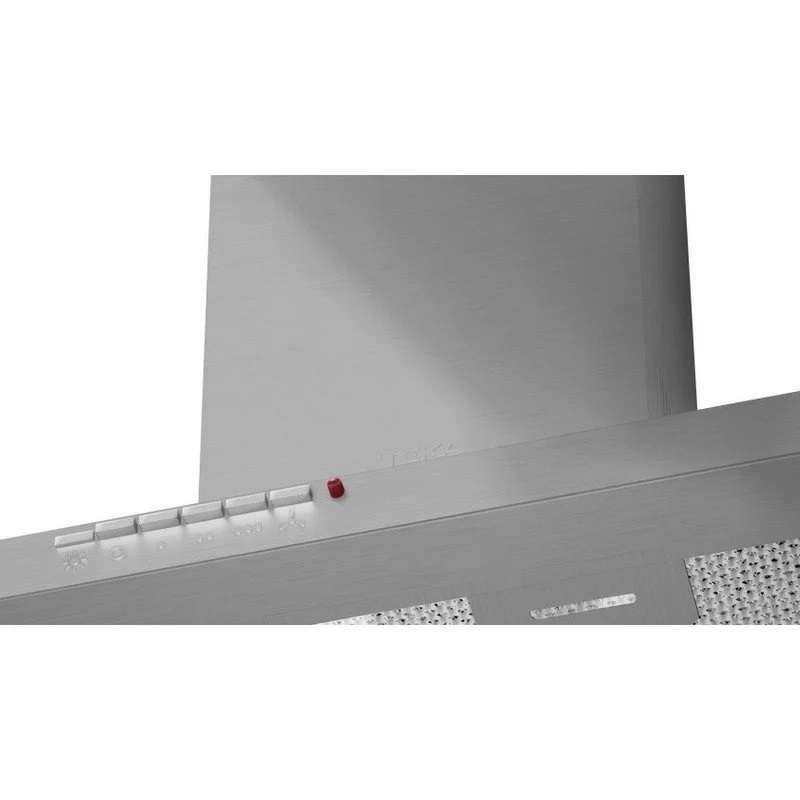

Pulsed controls.
Three speeds + intensive.
2 halogen lamps.
Operation indicator light.
Double turbine motor.
Extraction capacities: min.318 m3/h – max.613 m3/h.
Sound power: min.55 dBA – max.68 dBA.
Possibility of recirculation operation (SET 1/M1); Optional.
Teka DBP 70 PRO Specifications
Power Control
Energy Efficiency Class: D
Motor Power: 180W
AC Input Voltage: 220-240V
AC Input Frequency: 50/60Hz
Filtration
Grease Filter Type: Metal
Number of Filters: 2 pcs.
Removable Filter: Yes
Air Flow: 613 m³/h
Number of Bulbs: 2 bulb(s)
Bulb Type: Halogen
Control Type: Buttons
Exhaust Connection Diameter: 15 cm
Non-Return Valve: Yes
Number of Motors: 1
Motor Included: Yes
Performance
Maximum Extraction Capacity: 613 m³/h
Extraction Type: Ducted
Fluid Dynamic Efficiency Classification: E
Lighting Efficiency Classification: G
Grease filtration efficiency index: C
Noise level: 68 dB
Intensive speed: Yes
Noise level (low speed): 55 dB
Noise level (high speed): 68 dB

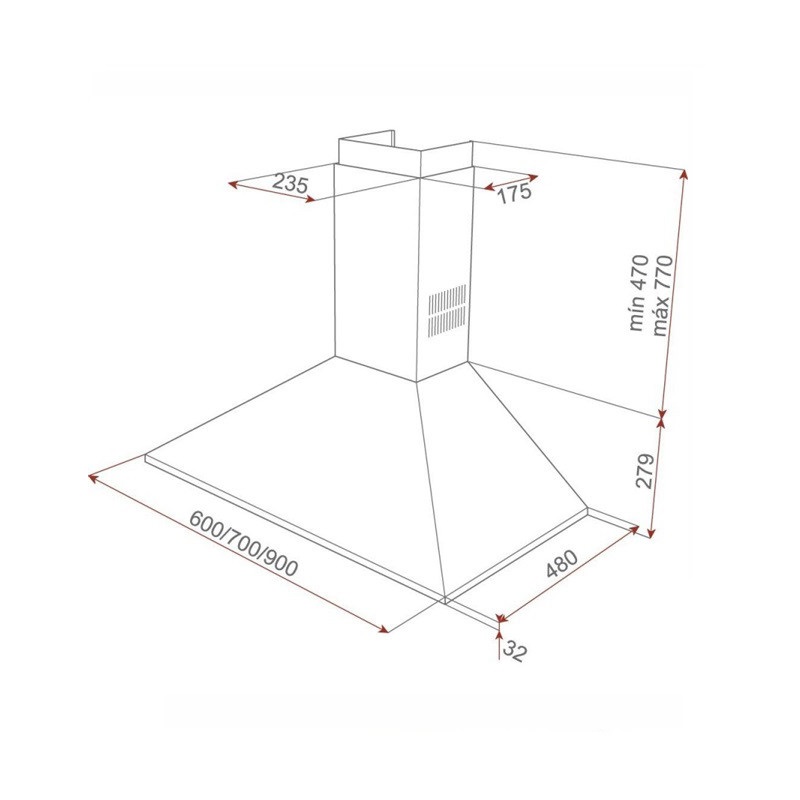

Weight and measurements
Width: 700 mm
Depth: 480 mm
Height (min.): 47 cm
Height (max.): 77 cm
Height without chimney: 29.7 cm
