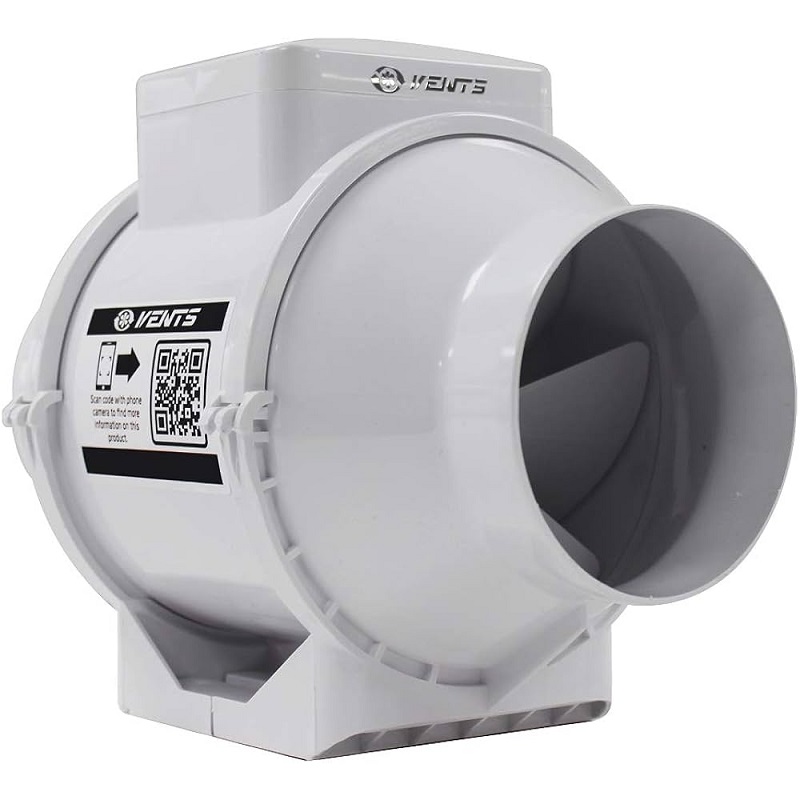

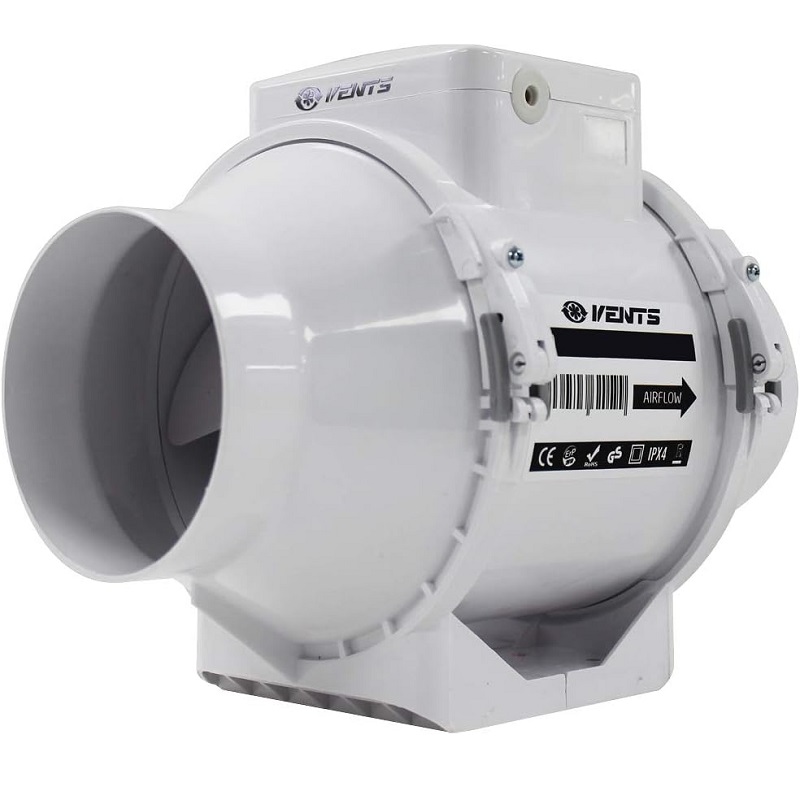

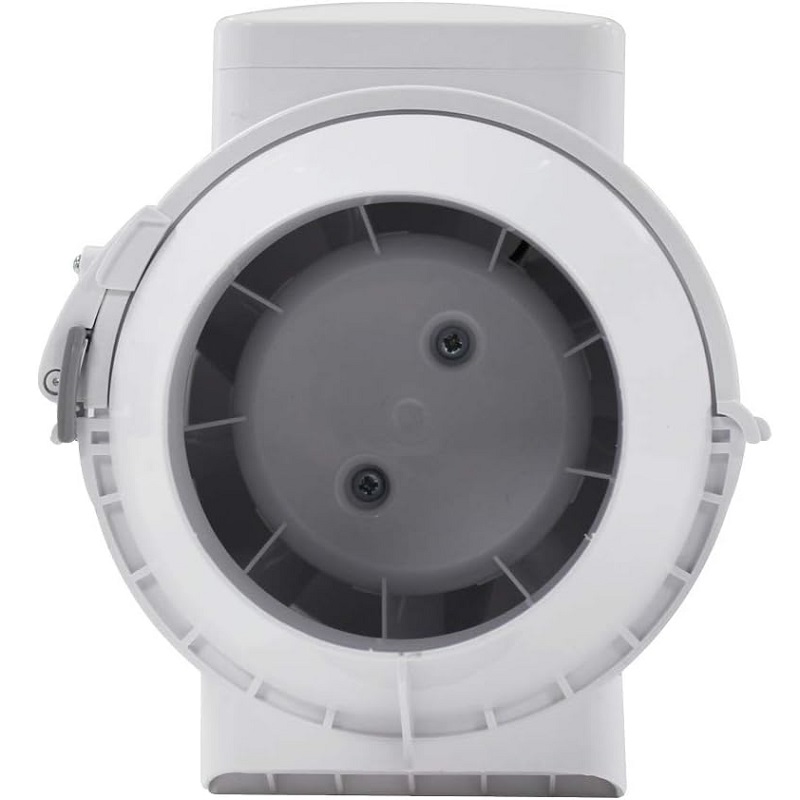

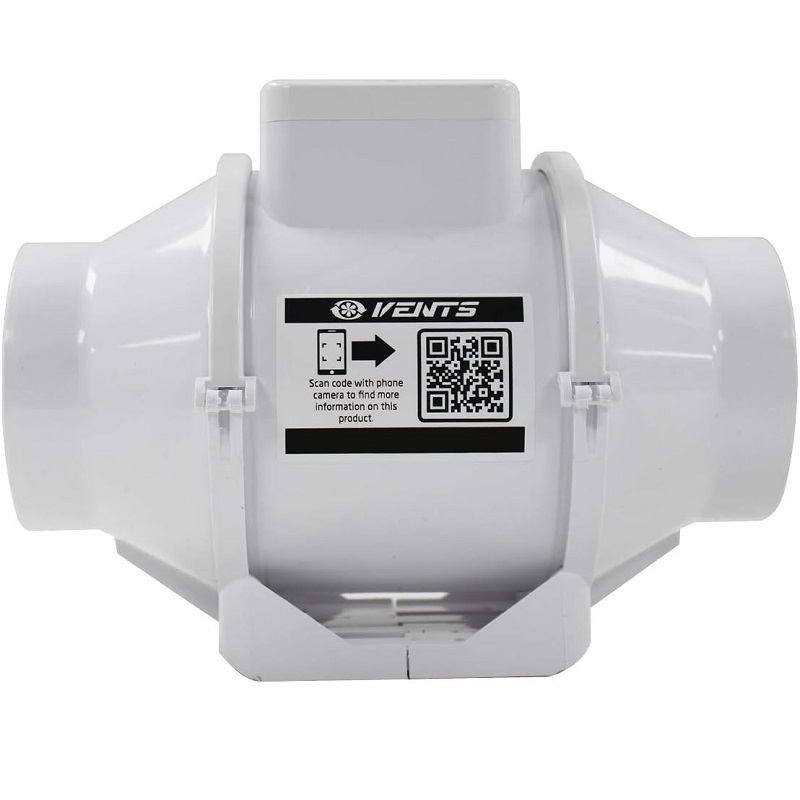

Tecna VENTS TT PRO 160/565 Extractor
TT PRO 160/565 Ventilator is made of low flammable polypropylene.
The inlet valve is equipped with a manifold to allow smooth air inlet to the fan.
The hemispherical impeller shape and specially profiled blades increase the circular air flow rate and increase the pressure and capacity compared to standard axial fans.
The diffuser, the specially profiled impeller and the guide vanes at the outlet of the fan casing distribute air flows in such a way as to achieve the best combination of high performance
Application: ventilation systems requiring high pressure and low noise level
Ideal for extracting air from damp rooms in residential and commercial buildings
Article number: 160/565
Motor removable for cleaning and maintenance
Delayed trigger relay (3-20 min): The device switches off after the set delay time has elapsed
Housing material: polypropylene, robust and flame-retardant
Nominal width: 160 mm
Power: 50 W
Current consumption: 0.22 A
Revolutions per minute: 2620
Air flow rate: 565 m³/h
Sound pressure Lp-3m: 46 dB(A)
Motor with ball bearings
Mounting: all positions
Max. temperature for continuous operation: 60°C
Protection rating: IPX4
Height: 247 mm
Width: 220.1 mm
Depth: 289 mm
Pipe connection diameter: 158 mm
Weight: 3.25 kg
TT PRO 160/565 Ventilator is made of low flammable polypropylene.
The inlet valve is equipped with a manifold to allow smooth air inlet to the fan.
The hemispherical impeller shape and specially profiled blades increase the circular air flow rate and increase the pressure and capacity compared to standard axial fans.
The diffuser, the specially profiled impeller and the guide vanes at the outlet of the fan casing distribute air flows in such a way as to achieve the best combination of high performance
Application: ventilation systems requiring high pressure and low noise level
Ideal for extracting air from damp rooms in residential and commercial buildings
Article number: 160/565
Motor removable for cleaning and maintenance
Delayed trigger relay (3-20 min): The device switches off after the set delay time has elapsed
Housing material: polypropylene, robust and flame-retardant
Nominal width: 160 mm
Power: 50 W
Current consumption: 0.22 A
Revolutions per minute: 2620
Air flow rate: 565 m³/h
Sound pressure Lp-3m: 46 dB(A)
Motor with ball bearings
Mounting: all positions
Max. temperature for continuous operation: 60°C
Protection rating: IPX4
Height: 247 mm
Width: 220.1 mm
Depth: 289 mm
Pipe connection diameter: 158 mm
Weight: 3.25 kg
