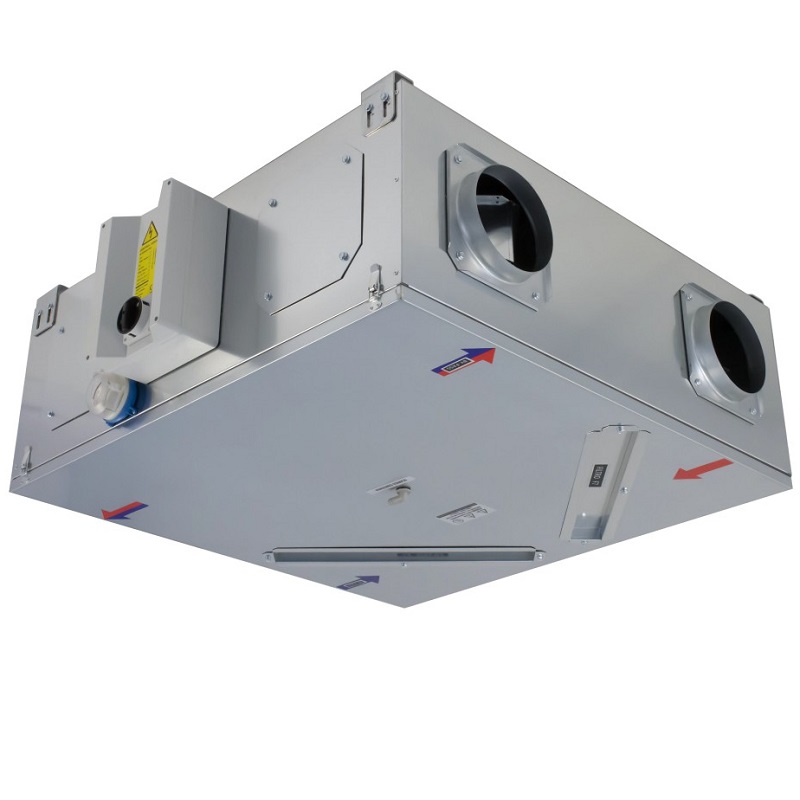

Tecna RCU 700 EC/H heat recovery unit flow rate 700 m³

Tecna RCU 700 EC/H heat recovery unit flow rate 700 m³

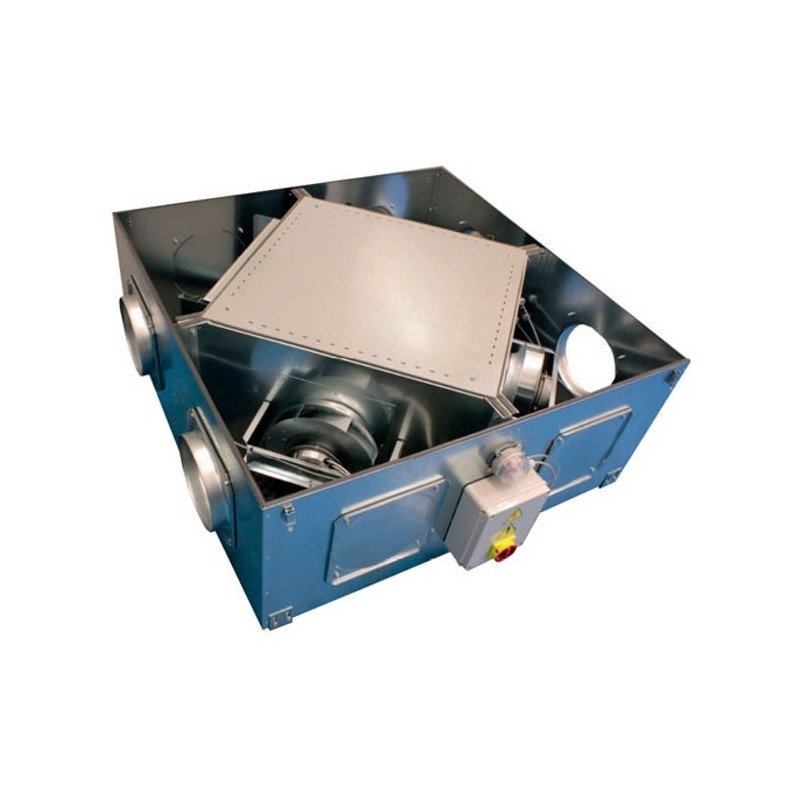

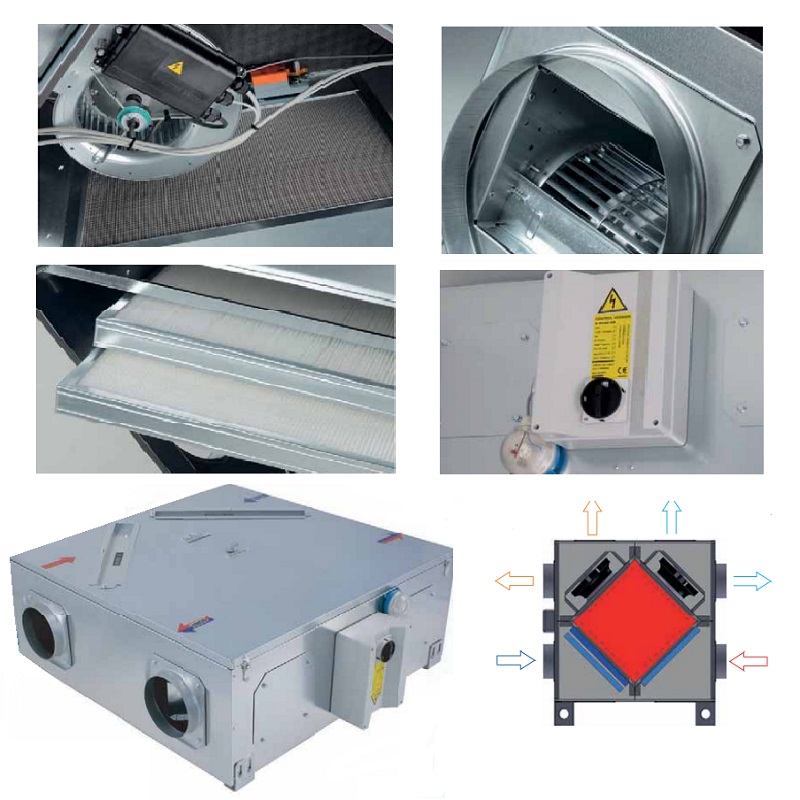

The recuperators integrate high efficiency cross-flow exchangers (minimum 73% in dry air and 80% in humid air),

Manually operated motorized diversion gate
Equipped with high efficiency single-phase EC fans up to model 2300 and AC fans up to model 3000.

Air inlet and outlet connections for the circulator, configurable and repositionable by the installer
Electrical control panel, installed on board with IP55; All models can be installed outdoors with the appropriate protective roof.

Exterior cladding in galvanized sheet metal. Double galvanized steel panel with a thickness of 25 mm and equipped with thermal and acoustic insulation in expanded polyurethane on the filter inspection side.

It comes standard with a differential pressure switch to measure the saturation level of the discharge filters.
As standard, it comes with a condensate collection tray and a condensate drain tube.
Register to be able to change filters
Equipped with double RITE filtration (F7+F8) and (F7+F9) as an option

Flow rate 710 [m3 /h
Input electrical power 246 W
Specific indoor ventilation power of ventilation components 1076
Forward speed with a design flow of 1090
Nominal external pressure (ext) 37
Cabin sound power 51 dB (A)
Mouth diameter 150
Motor power W 2x123
Minimum efficiency 71%
ModBus RS485
Height 375 mm
Width 1000mm
Depth 1000 mm
Weight 64 kg
