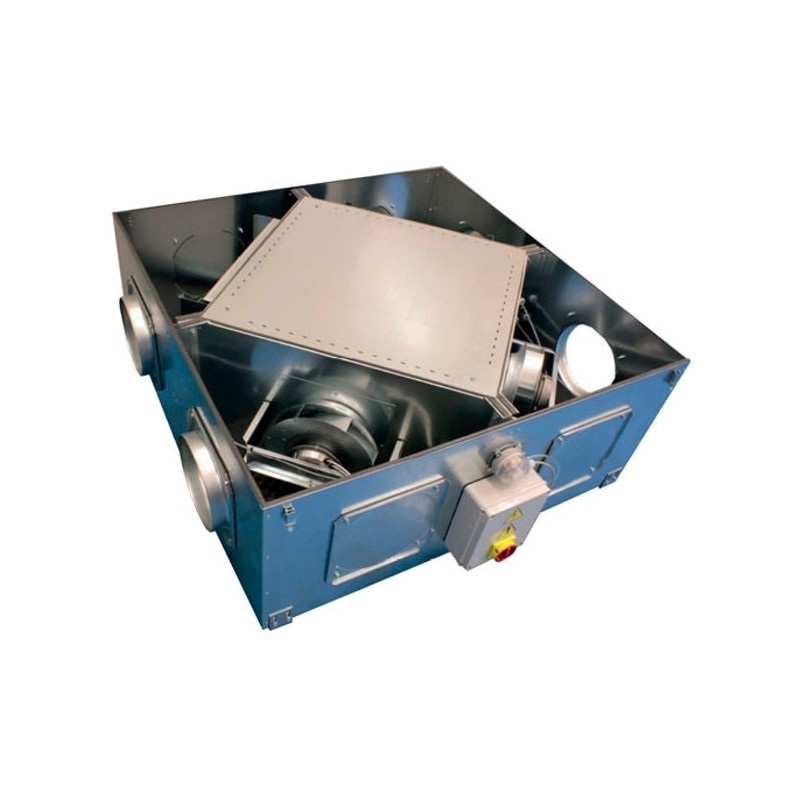

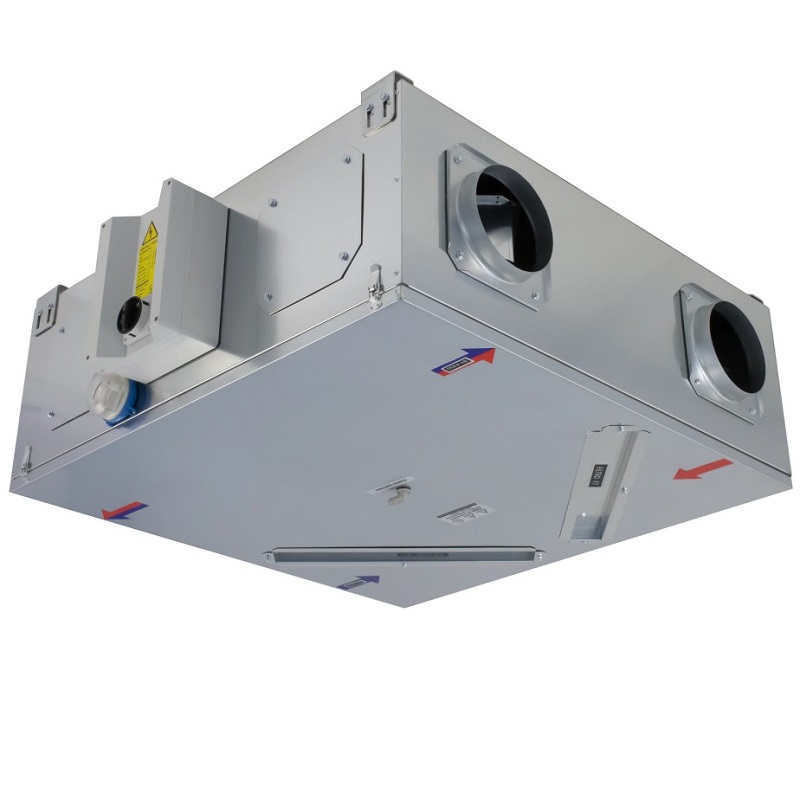

Tecna RCU 2300 EC/H heat recovery unit flow rate 2300 m³
Nominal data refers to one configuration (FT card series)
in which the fans operate with a setting voltage of 10 [V] and in which two microfiber glass filters are installed: an F7 filter on the input side and an F7 filter on the output side.
The “flow/pressure” graph refers to the inlet.
Bidirectional (UVB) non-residential ventilation unit (UVNR).

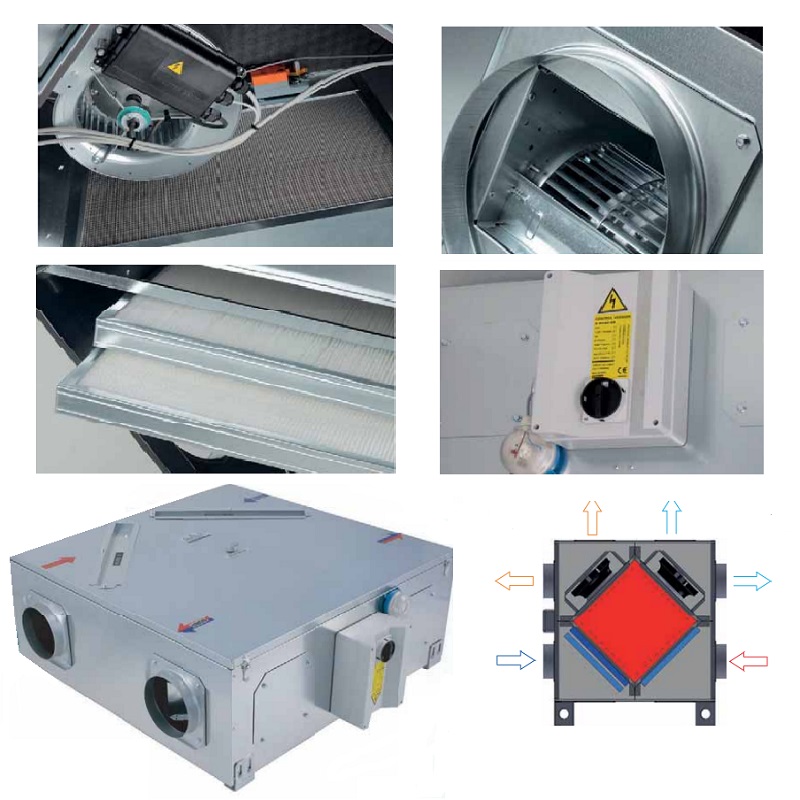

Air/air heat recovery system.
Type of operation: 1O V setting.

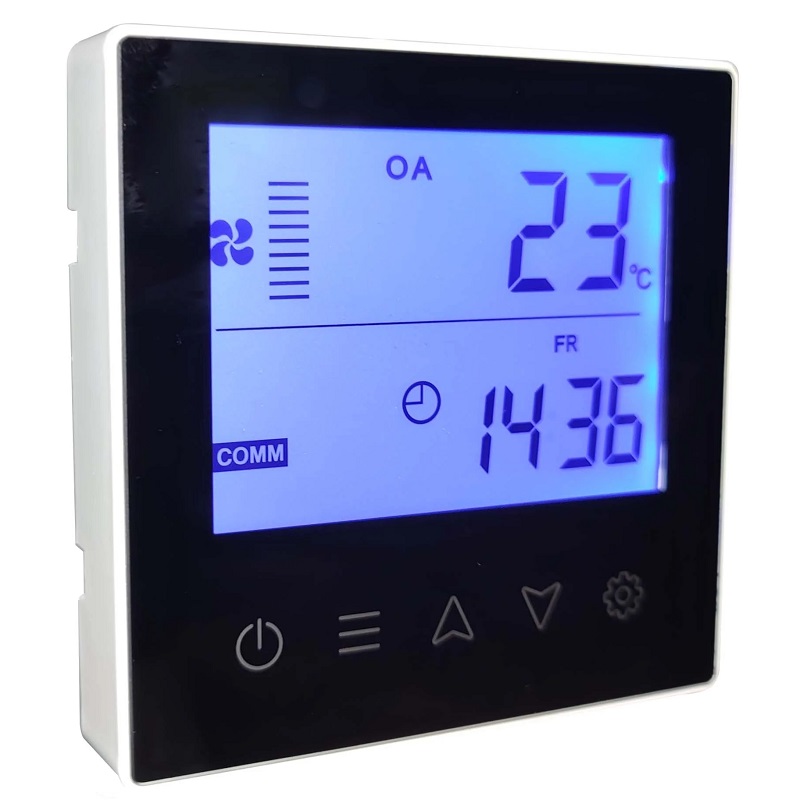

Motorized diversion gate that can be controlled automatically and/or manually via control screen
Equipped as standard with two probes to measure indoor and outdoor air temperatures.
Equipped with a differential pressure switch to control the level of FRQWDPLQDomRGRV
All accessories and additional features depend on the control type chosen
Nominal flow 2300 [m /h]
Input electrical power 1633 W
Specific internal ventilation power of two ventilation components 1326 W
Frontal speed with nominal flow 0.7 [m/s
Remaining internal pressure for inlet of two ventilation components (int) 264 [Pa]
Modbus RTU, via RS485 port
Cabin sound power 56 dB (A)
maximum energy (L)2x816
Dimensions (mm) 1250x1250x550
Weight (kg) 148
