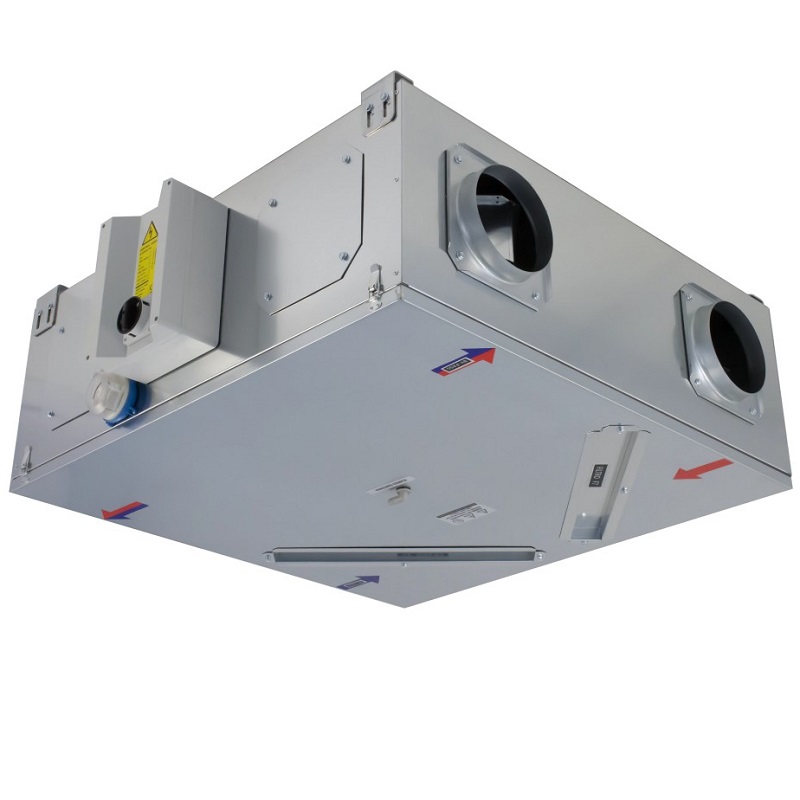

Tecna RCU 2000 EC/H heat recovery unit flow rate 2100 m³
The nominal data refers to a configuration (FT board series) in which the fans operate with a setting voltage of 10 [V] and in which two microfiber glass filters are installed: an F7 filter on the input side and an F7 filter on the input side. exit.
The “flow/pressure” graph refers to the inlet.
Bidirectional (UVB) non-residential ventilation unit (UVNR).

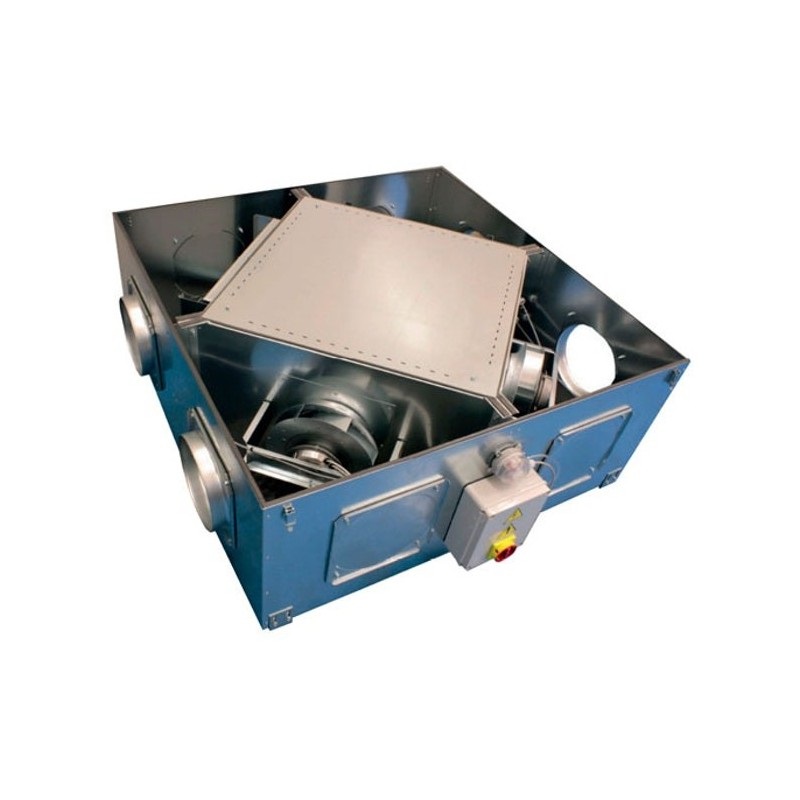

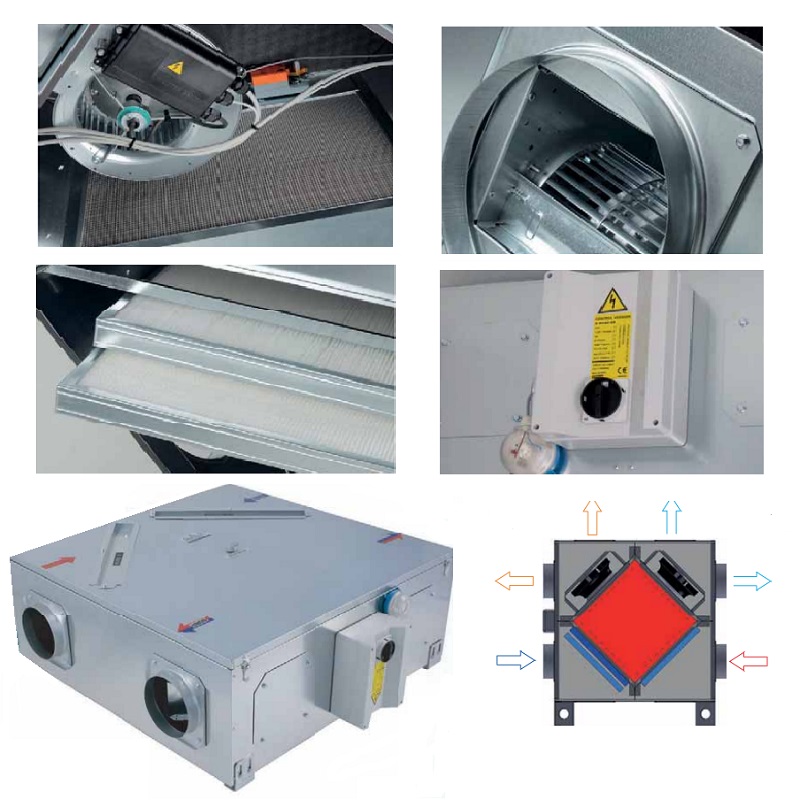

Air/air heat recovery system.
Type of operation: 1O V setting.

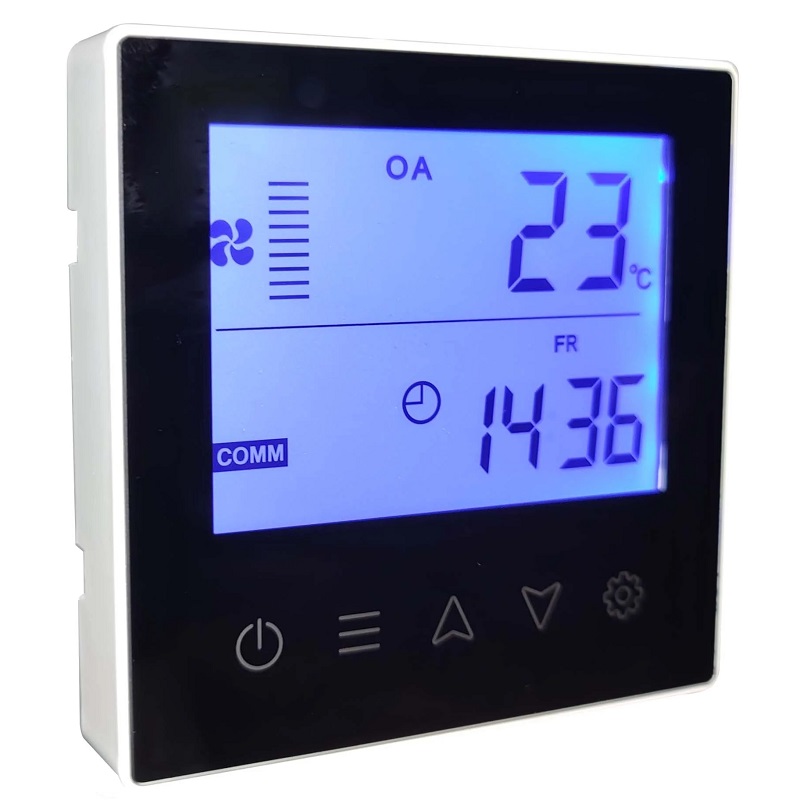

Motorized diversion gate that can be controlled automatically and/or manually via control screen
Equipped as standard with two probes to measure indoor and outdoor air temperatures.
Equipped with a differential pressure switch to control the level (FRQWDPLQDomRGRV²OWURV)
All accessories and additional features depend on the control type chosen.
Caudal Maxi 2100 m3/h
Filters F7
Bocas diameter 315 mm
Power Motor 2x425 W
Minimum efficiency 71%
Mouth 315
Sound pressure, measured at 1 (m) and 3 (m) from the machine cabin
ModBusRS485
Filter per side, dimensions: 500 x 625 x 48 mm
Viola 1200 mm
Ancho 1200mm
Deep 525 mm
Weight 148 kg
