Tecna RCU 1600 EC/H heat recovery unit flow rate 1600 m³

Tecna RCU 1600 EC/H heat recovery unit flow rate 1600 m³

Nominal data refers to one configuration (FT card series)
in which the fans operate with a setting voltage of 10 [V] and in which two microfiber glass filters are installed: an F7 filter on the input side and an F7 filter on the output side.

The “flow/pressure” graph refers to the inlet.
Bidirectional (UVB) non-residential ventilation unit (UVNR).

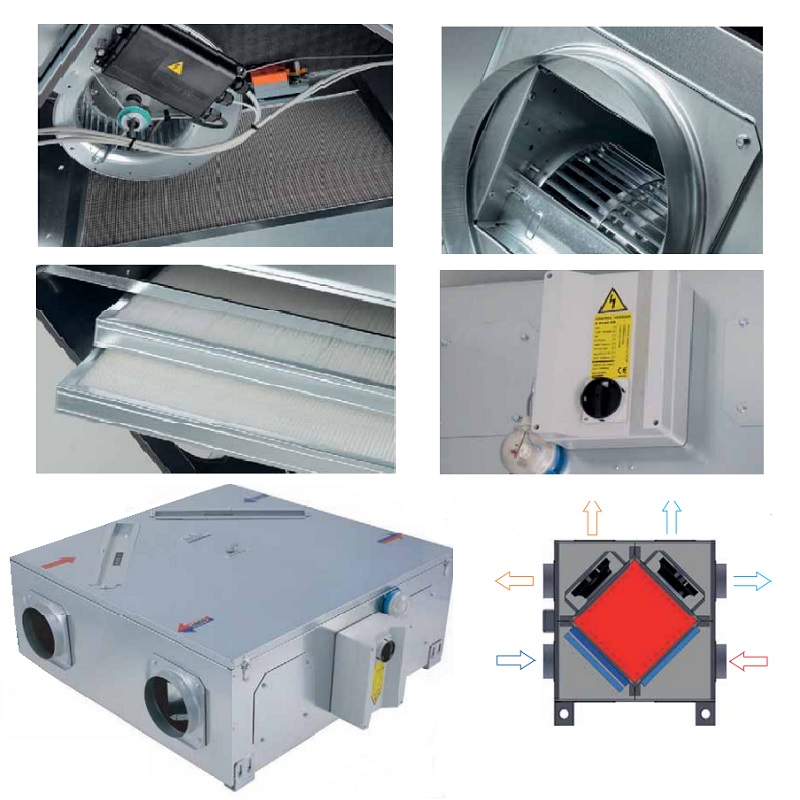

Air/air heat recovery system.
Type of operation: 1O V setting.
Motorized diversion gate that can be controlled automatically and/or manually via control screen
Equipped as standard with two probes to measure indoor and outdoor air temperatures.
Equipped with a differential pressure switch to control the level
All accessories and additional features depend on the control type chosen.

Maximum air flow 1600 (m3/h)
RCE-EC horizontal series.
Single-phase power supply

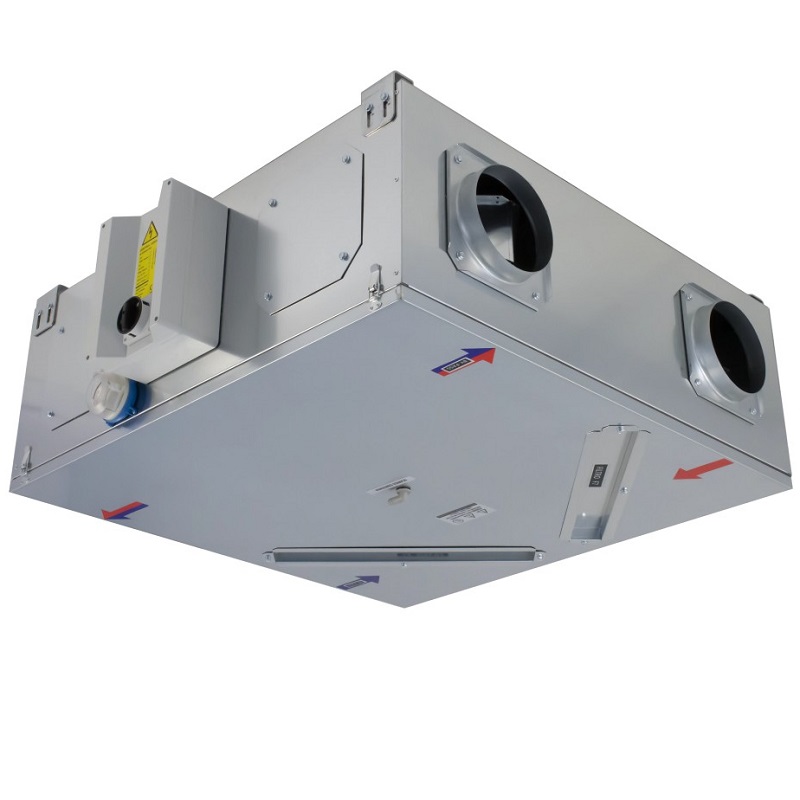

Allows installation in false ceilings with easy access to filters.

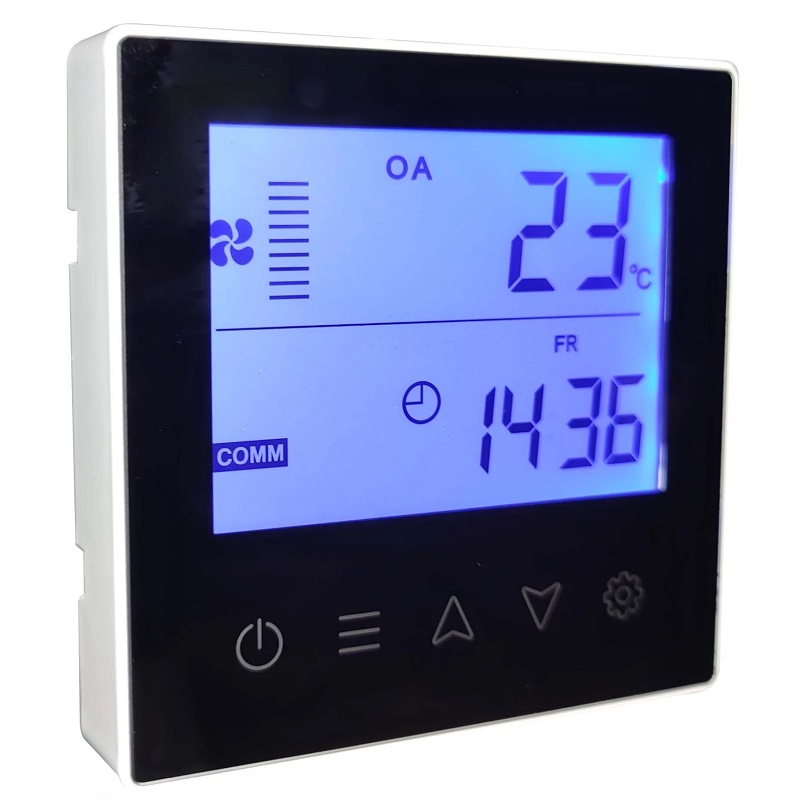

LCD wall control included.

Compact design.
EC inverter motors.

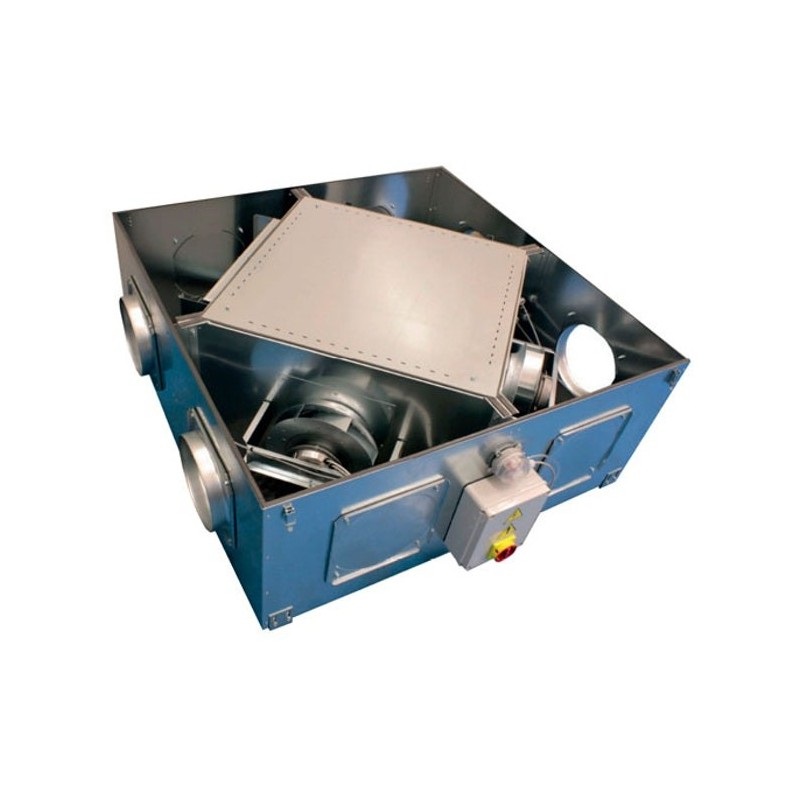

Aluminum plate heat exchanger.
Possibility of filters according to RITE.
Standard motorized by-pass and digital control panel.
Inlet and return temperature sensors.
Indication of dirty filters
RCE-EC horizontal ventilation series
Thermal performance (%)73
Power consumption (W) 970
Height 525mm
Width 1200mm
Depth 1200mm
Weight 132 kg
