Tecna RCU 1200 EC/H heat recovery unit flow rate 1200 m³

Tecna RCU 1200 EC/H heat recovery unit flow rate 1200 m³

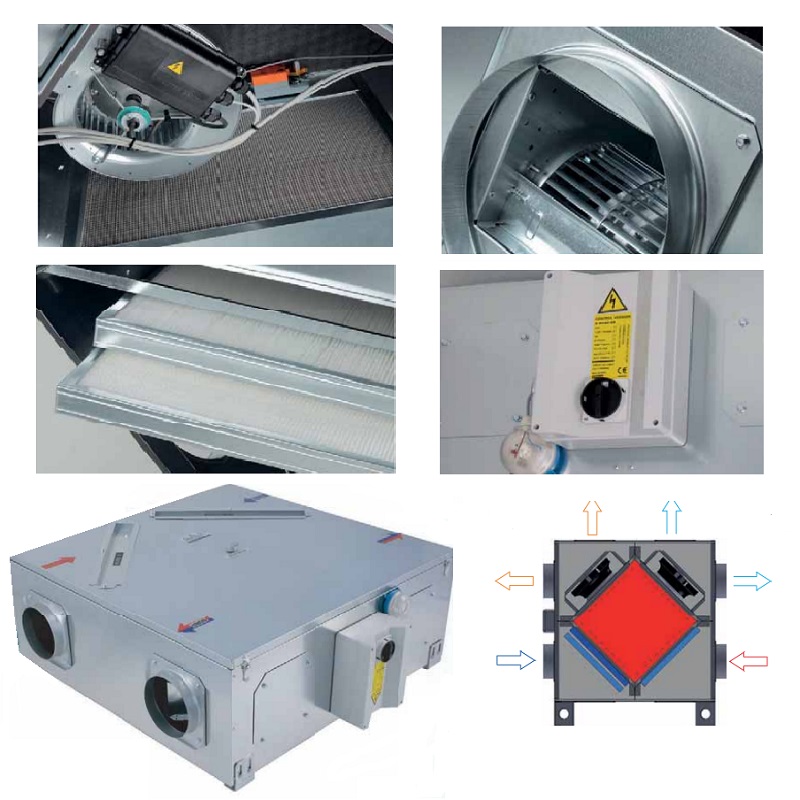

The Tecna RCE-EC series range of heat recovery units is available in horizontal and vertical versions. In both versions, the heat recovery units are built with sandwich panel envelopes with 25 mm PU or mineral wool insulation; In addition, from size RCE 7100, they incorporate a tubular structure in extruded aluminum.

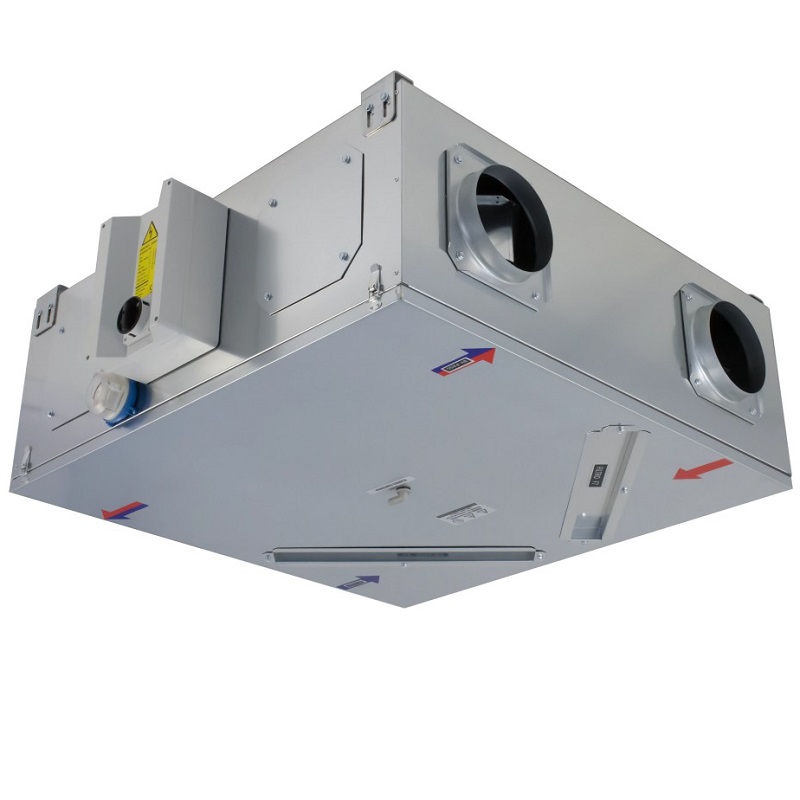

In the horizontal version; Designed for indoor installation and ceiling mounting, filter replacement dampers are located at the bottom of the equipment up to size RCE 5400-EC/H, from size RCE 6500- EC/H. These registers are located on the side of the equipment.
Compact and lightweight design.
Sandwich panel envelopes with 25 mm PU or mineral wool insulation

EC inverter motors.
Double filtration for RITE compliance.

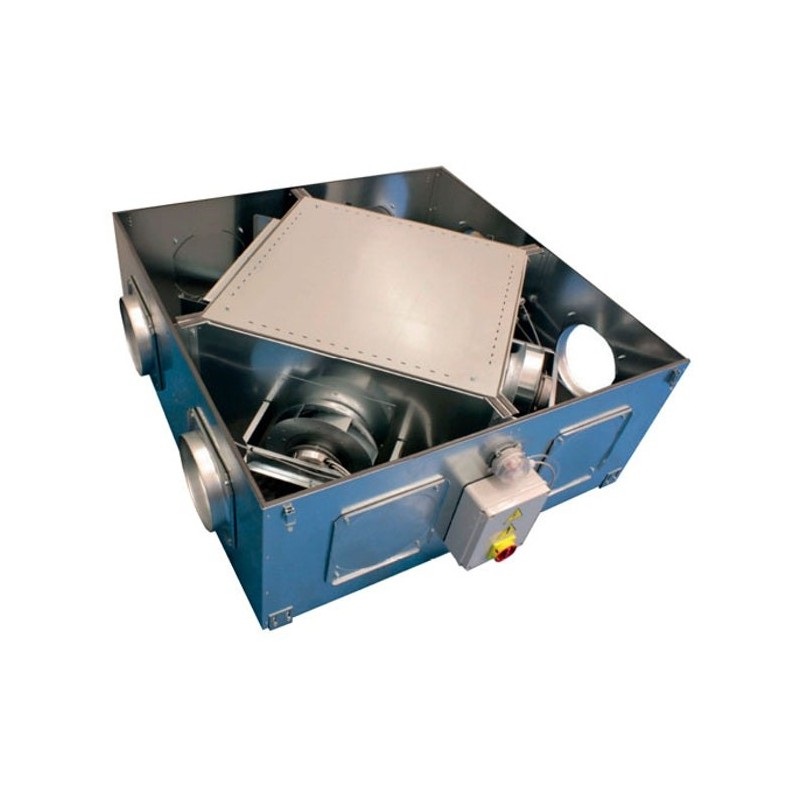

Aluminum plate heat exchanger.
Motorized bypass as standard.
Inlet and return temperature sensors.
Signaling of clogged filters by differential pressure switch.
Minimum efficiency: 73%.

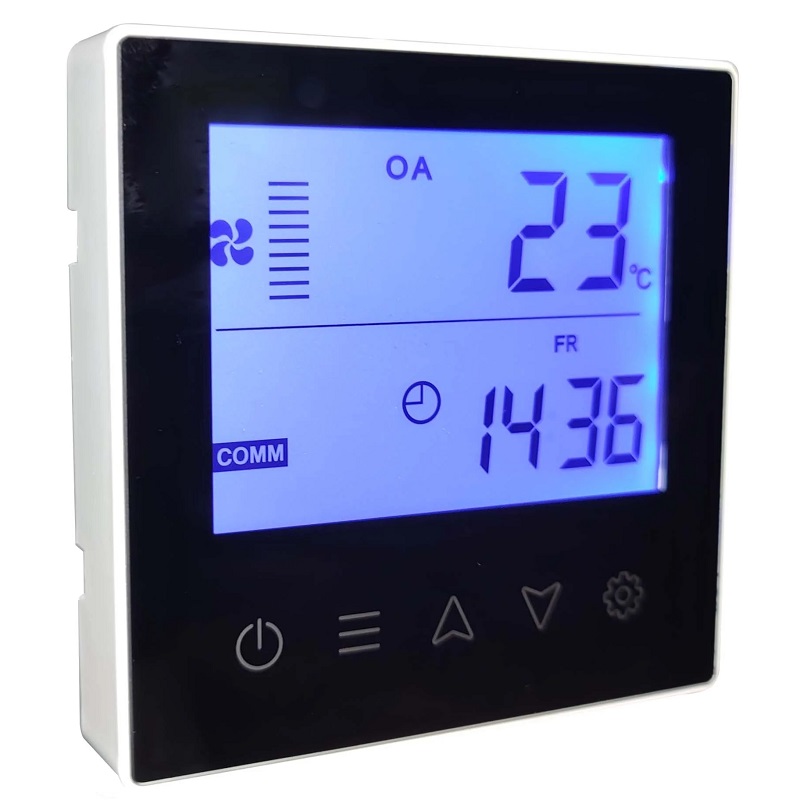

Control with LCD screen included as standard.
Extensive control possibilities thanks to wall control and remote control with liquid glass display included as standard.
By CO2 probe.
Via BMS with Modbus protocol.

Maximum flow 1200 m3/h
Minimum efficiency 71%
Mouth diameter 180
F7 filters
Motor power 2x274 W
Height 375 mm
Width 1000mm
Depth 1000mm
Weight 96 kg
