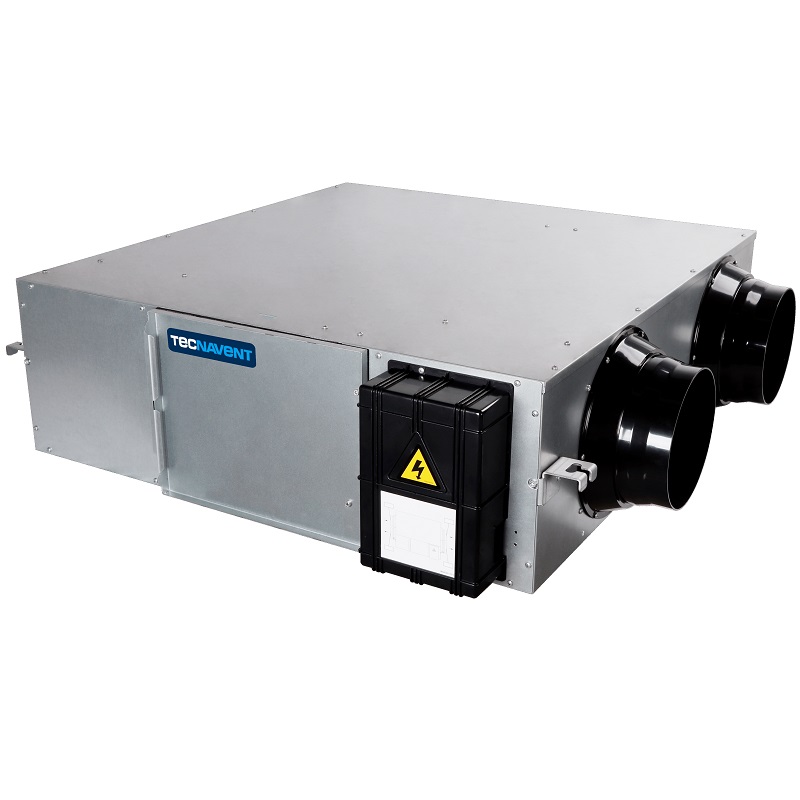

Tecna RCH 1000 EC/H heat recovery unit flow rate 1200 m³

Tecna RCH 1000 EC/H heat recovery unit flow rate 1200 m³

A ventilation solution with enthalpy recovery ideal for buildings in which improving energy efficiency and reducing their carbon footprint are of particular importance. Schools, universities, student and elderly residences are some of the buildings in which their installation is very adequate.
Available in horizontal version up to 2,000 m3/h, they are equipped with EC Inverter motors, a by-pass gate, fireproof and acoustic insulation and F9 filtration on delivery.
Availability of optional WiFi module

F9 pulse filtration.
EC inverter motors.
ERP ready
Compact and lightweight design.
Smart control with LCD display included as standard. With extensive control possibilities: via CO2 probe and BMS with Modbus protocol. Constant flow independent of pressure via Modbus.
Temperature probes for inlet, outlet, return and extraction.
Signaling of clogged filters by differential pressure switch.
Optional WiFi module available for APP control

Air flow (m3 /h) 1000
Heating 62-75%
Cooldown 52-70%
Noise.Db(A) 43
Supply voltage 220 ~ 240V/1Ph/50Hz
Power (W) 327
Power cable 2x1.5mm2+T
Control cable 3x0.5 mm2
BLDC Fan Type Fan Motors
Fan speeds (suction) 10 Fan speed control
Optional CO2 sensor control (ON/OFF control with adjustable range)
Optional CO2 sensor control (ON/OFF control with adjustable range)
Fire stop Yes (1 connection available for No Voltage: Closed = off)
Duct diameter 242
Size (WxHxD) 1134x388x1134
Weight (kg) 61
