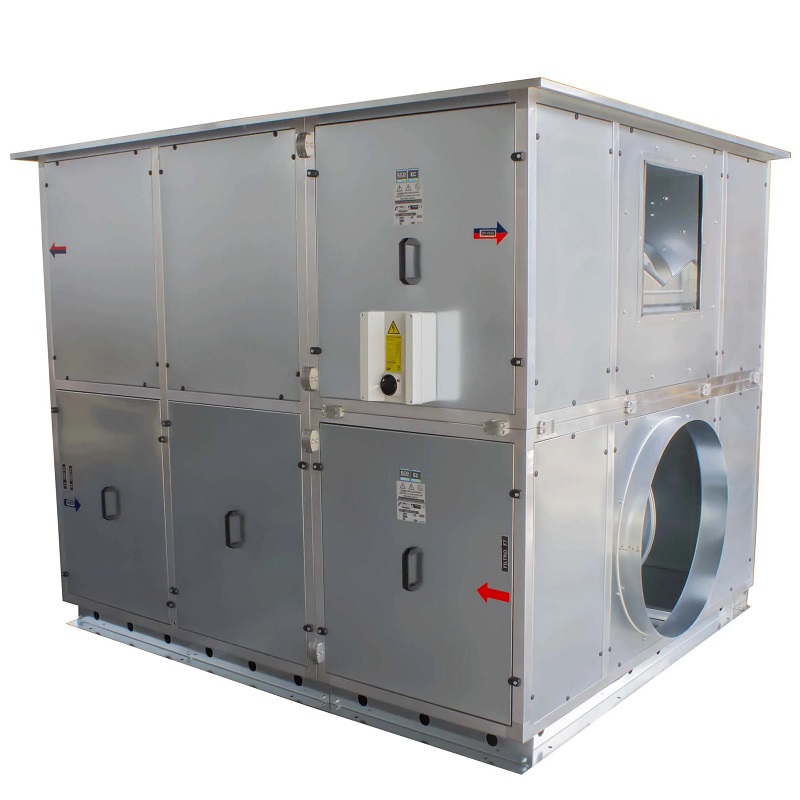

Tecna RCE 12000 EC/V heat recovery unit flow rate 12000 m³/h
They include as standard a wall control with LCD screen, from which you can manage manual/automatic modes and control the rotation speeds of each fan, the bypass damper or an external water coil.
It has several connections, both analog and digital, to expand the automatic operation options by connecting accessories such as CO2 probes, which allow the recuperator to proportionally and automatically vary the flow rate delivered according to the ppm CO2 concentration of the extraction air.
It can manage up to 32 heat recovery units from the Tecna RCE-EC series using the Modbus RTU protocol, via the RS485 port, in addition to being integrated via this communication protocol in a superior BMS regulation.
Double filtration F7+F8 for RITE compliance.
Envelopes in sandwich panels with 25 mm PU or mineral wool insulation.
The equipment is supplied as standard with a roof provided for this purpose.
From size RCE 7100, they incorporate a tubular structure in extruded aluminum.
Aluminum plate heat exchanger.
Motorized bypass as standard.
Inlet and return temperature sensors.
Signaling of clogged filters by differential pressure switch
Commercial/industrial use by a recycler
Single-phase power supply
Maximum flow 12000 m3/h.
Dimensions length 2330 mm
Dimensions depth 1900 mm
Dimensions height 2005 mm
Mouths 800 mm
Maximum motor energy 2×2000 W
Weight 1200 kg
