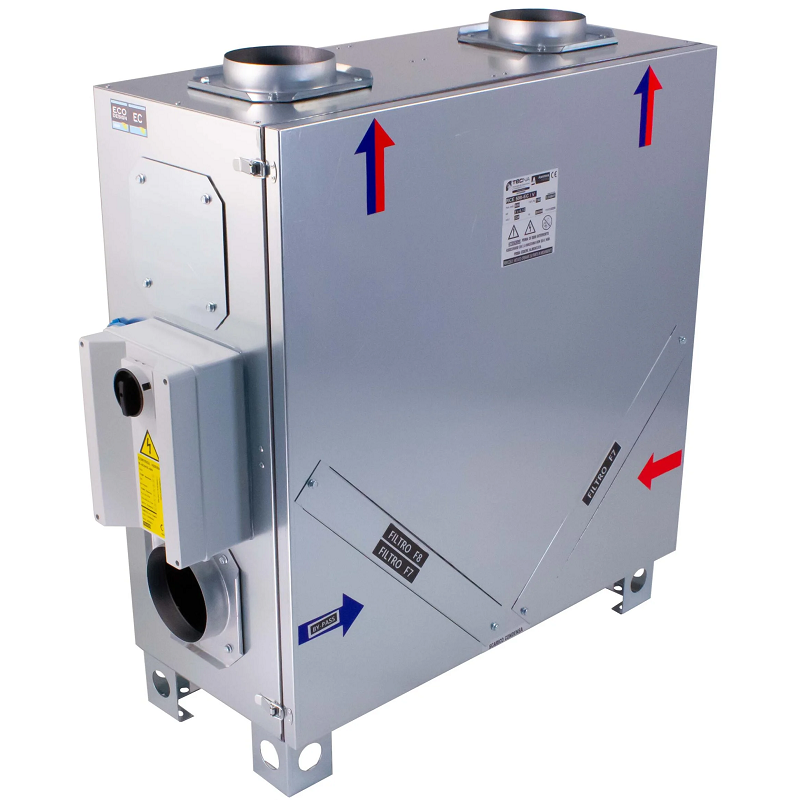

Tecna EC/V /F7+F7+F8 heat recovery unit, 500 flow rate 500 m³

Tecna EC/V /F7+F7+F8 heat recovery unit, 500 flow rate 500 m³

Double filtration F7+F8 for RITE compliance.
Envelopes in sandwich panels with 25 mm PU or mineral wool insulation.
The equipment is supplied as standard with a roof provided for this purpose.
From size RCE 7100, they incorporate a tubular structure in extruded aluminum.

Aluminum plate heat exchanger.
Motorized bypass as standard.
Inlet and return temperature sensors.
Signaling of clogged filters by differential pressure switch.

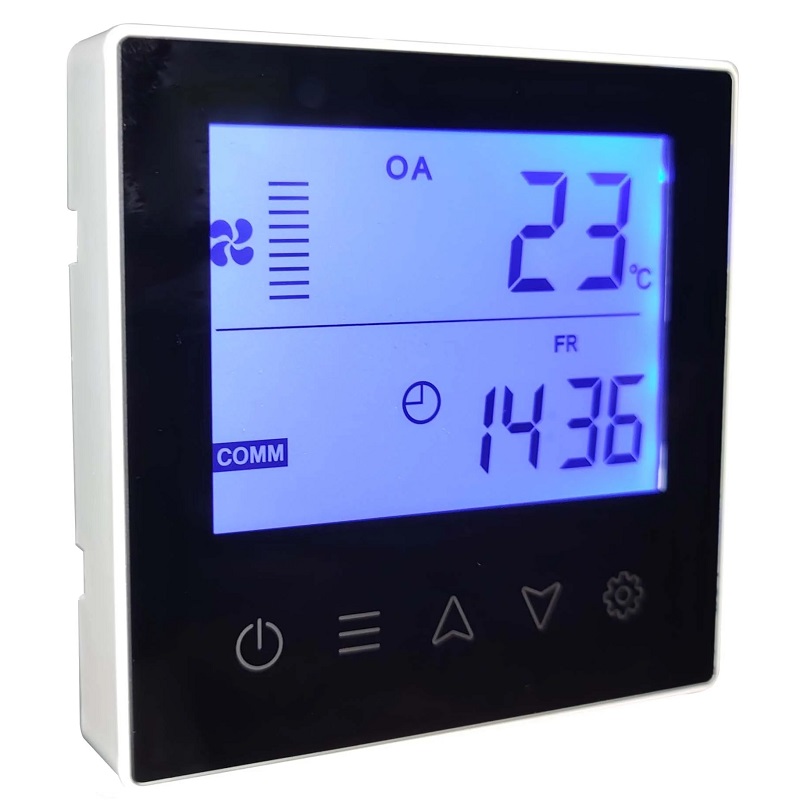

They include as standard a wall control with LCD screen, from which you can manage manual/automatic modes and control the rotation speeds of each fan, the bypass damper or an external water coil.

It has several connections, both analog and digital, to expand the automatic operation options by connecting accessories such as CO2 probes, which allow the recuperator to proportionally and automatically vary the flow rate delivered according to the ppm CO2 concentration of the extraction air.

It can manage up to 32 heat recovery units from the Tecna RCE-EC series using the Modbus RTU protocol, via the RS485 port, in addition to being integrated via this communication protocol in a superior BMS regulation.

Maximum flow m3/h 550 m3/h
Mouth diameter 150 diameter
Motor power W 2x125
Height 365 mm
Width 750 mm
Depth 550 mm
Weight 68 kg
F7 filters
