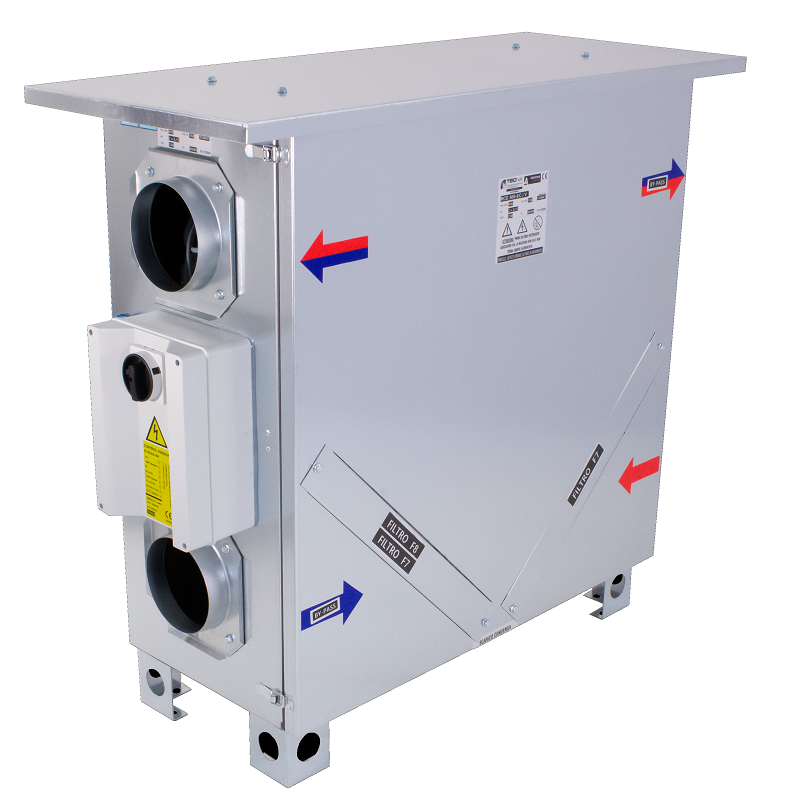

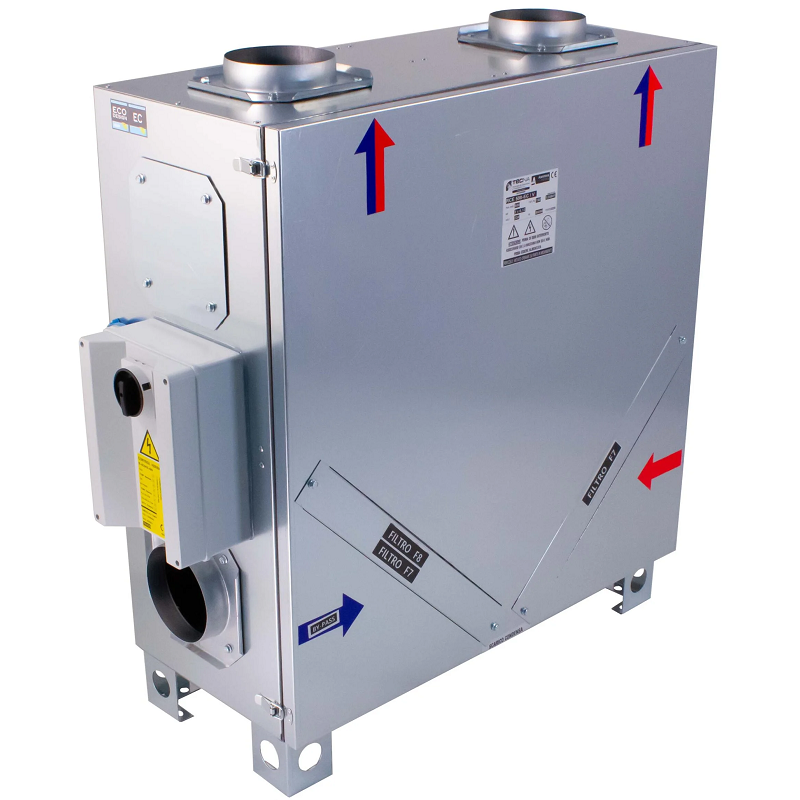

Tecna EC/V /F7+F7+F8 heat recovery unit, 4500 flow rate 4500 m³

Tecna EC/V /F7+F7+F8 heat recovery unit, 4500 flow rate 4500 m³

The Tecna RCE-EC series range of heat recovery units are designed and built in accordance with the ErP directive, so the thermal efficiency of heat recovery in all models is above 73%.

This is a series very suitable for ventilation with heat recovery in small and medium-sized public environments, such as bars, cafes, restaurants, cinemas, theaters, offices, schools... The vertical version, available up to 12,000 m3/h, It is equipped with feet, allowing it to be installed both indoors and outdoors, including a removable roof. Also available in horizontal version.

Double filtration RITE F7+F8
Sandwich panel envelope with 25 mm insulation
EC inverter motors.
ERP ready
Compact and lightweight design.
Extensive control possibilities using probes and BMS with Modbus protocol.

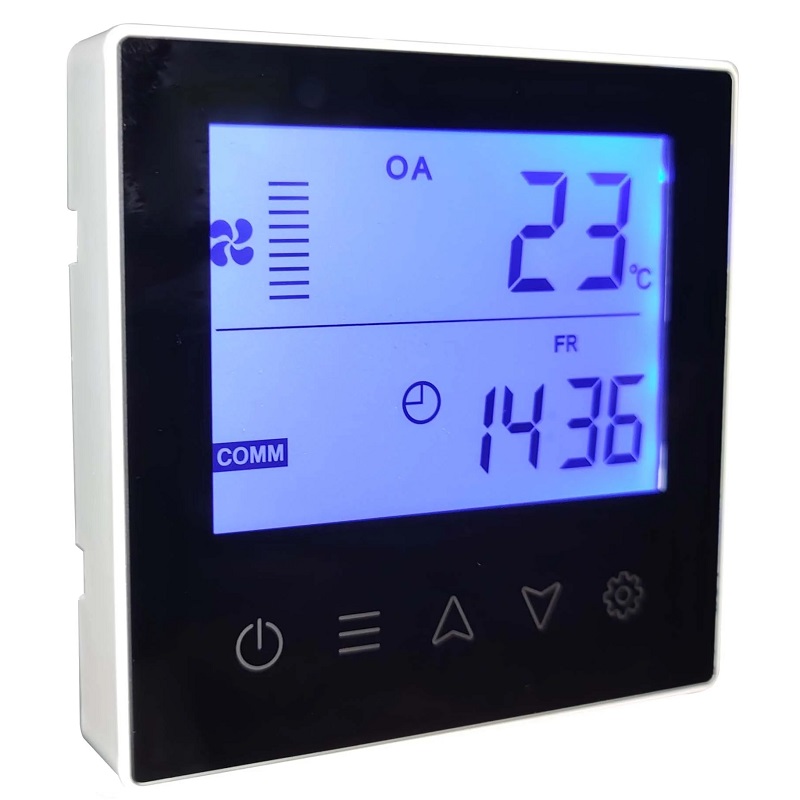

Standard wall control with LCD screen included in the price.

It can manage up to 32 Tecna RCE-EC series heat recovery units using the Modbus RTU protocol, via the RS485 port.

Envelope made of sandwich panels with 25 mm insulation, certified: ERP Ready.

RCE-EC vertical series.
Prepared for outdoor installation.
Includes roof and legs.
LCD wall control included.
Compact design.
EC inverter motors.
Aluminum plate heat exchanger.
Possibility of filters according to RITE.
Standard motorized by-pass and digital control panel.
Inlet and return temperature sensors.
Indication of dirty filters.
Connection for CO2 probe (see price of probe accessories). code 73EV002300

Commercial/industrial use
Single-phase power supply
Maximum air flow 4500 (m3/h)
RCE-EC vertical ventilation series
Thermal efficiency 73%
Power consumption 2580 W
Single-phase power supply
Height of indoor unit 1450 mm
Width of indoor unit 1350 mm
Depth of indoor unit 775 mm
weight 294 kg
