Tecna EC/V /F7+F7+F8 heat recovery unit, 1600 flow rate 1600 m³

Tecna EC/V /F7+F7+F8 heat recovery unit, 1600 flow rate 1600 m³

The Tecna RCE-EC series range of heat recovery units are designed and built in accordance with the ErP directive, so the thermal efficiency of heat recovery in all models is above 73%.

This is a series very suitable for ventilation with heat recovery in small and medium-sized public environments, such as bars, cafes, restaurants, cinemas, theaters, offices, schools...

The vertical version, available up to 12,000 m3/h, is equipped with feet allowing installation both indoors and outdoors, including a removable roof. Also available in horizontal version.

Double filtration RITE F7+F8
Sandwich panel envelope with 25 mm insulation
EC inverter motors.
ERP ready
Compact and lightweight design.
Extensive control possibilities using probes and BMS with Modbus protocol.

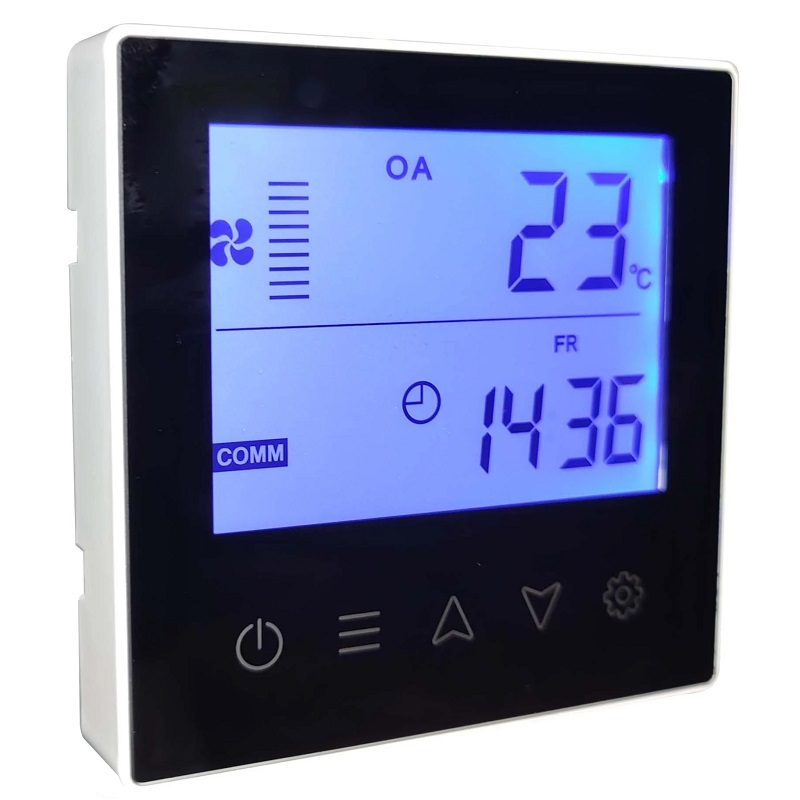

Standard wall control with LCD screen included in the price.

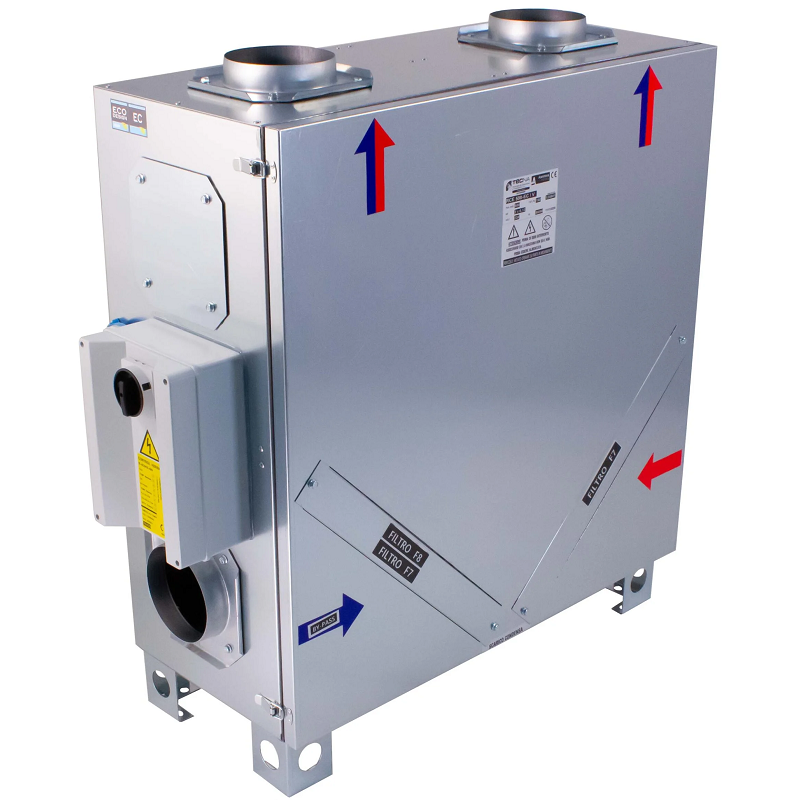

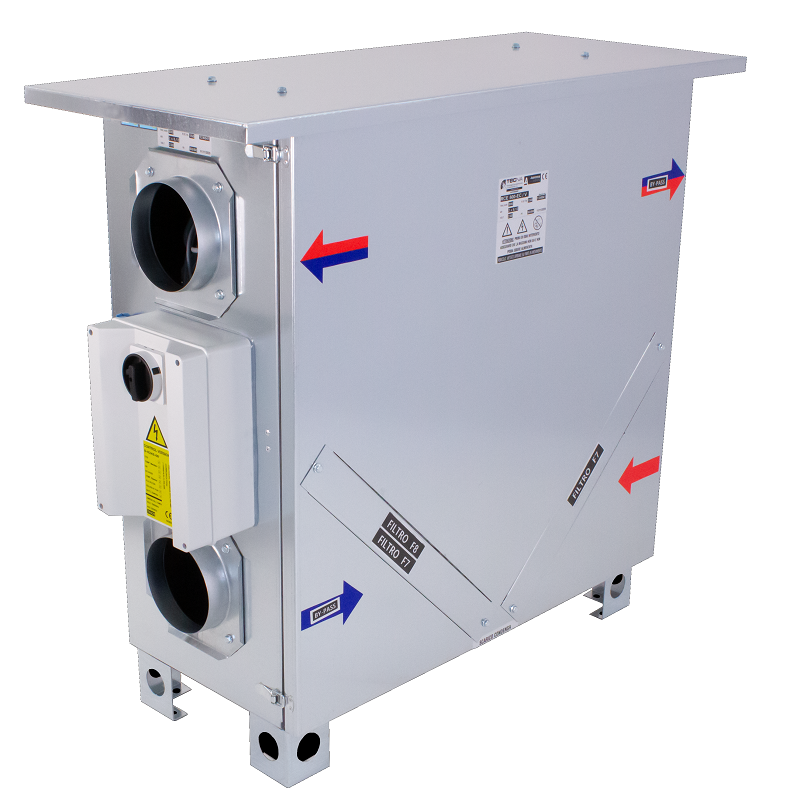

RCE-EC vertical series.
Prepared for outdoor installation.
Includes roof and legs.
LCD wall control included.
Compact design.
EC inverter motors.
Aluminum plate heat exchanger.
Possibility of filters according to RITE.
Standard motorized by-pass and digital control panel.
Inlet and return temperature sensors.
Indication of dirty filters.
Connection for CO2 probe (see price of probe accessories), code 73EV001600

Commercial/industrial use by a recycler
Maximum air flow (m3/h)1600
Single-phase power supply
RCE-EC vertical ventilation series
Thermal performance (%) 73
Power consumption (W) 970 mm
Height of indoor unit 1300 mm
Width of indoor unit 1200 mm
Depth of indoor unit 525 mm
Weight 250 kg
