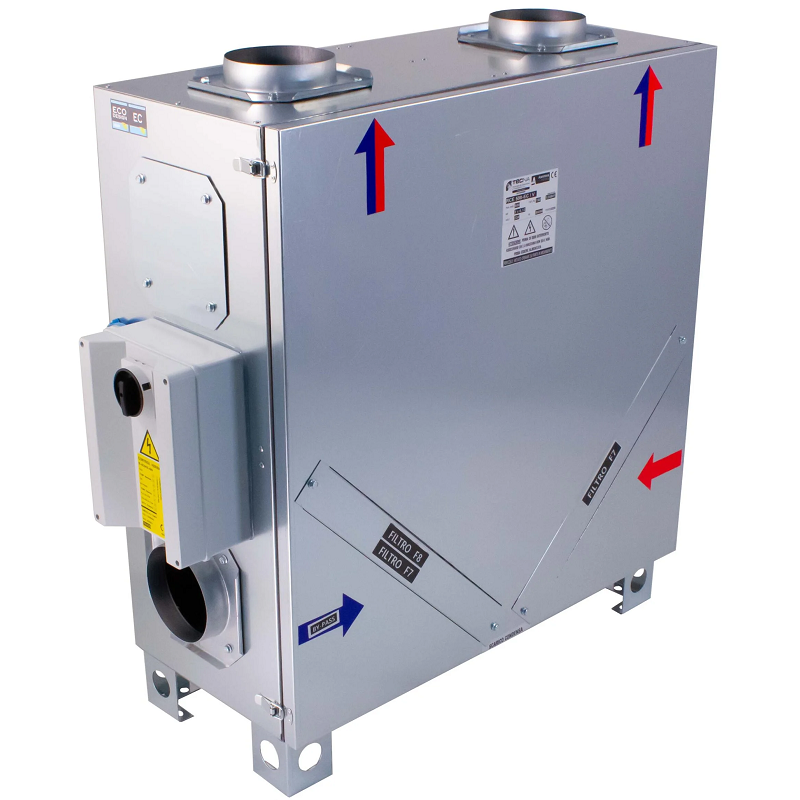

Tecna EC/V /F7+F7+F8 heat recovery unit, 1200 flow rate 1200 m³
RCE-EC vertical series.
Prepared for outdoor installation.

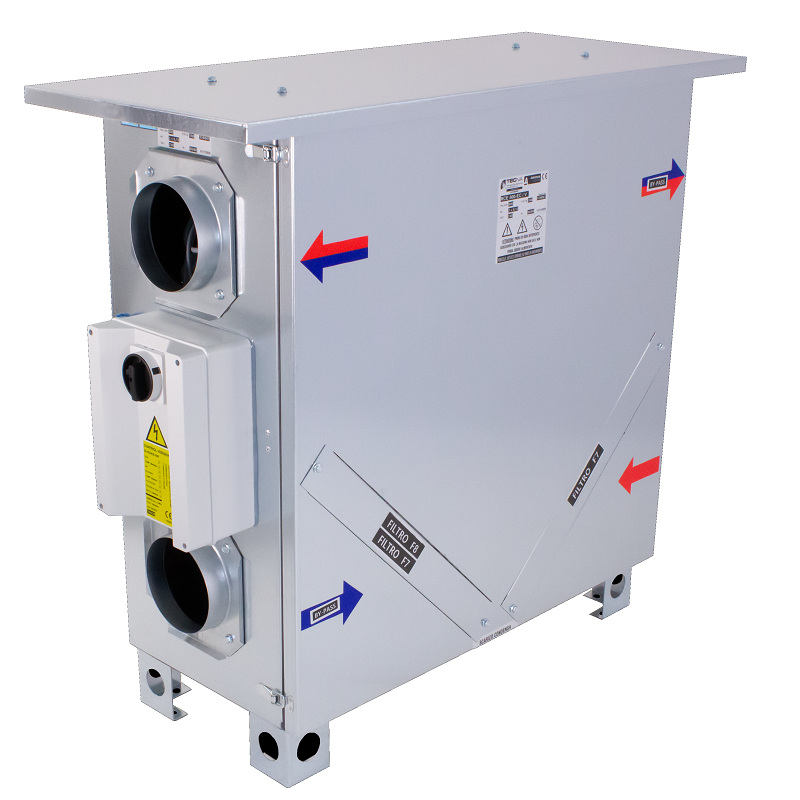

Includes roof and legs.

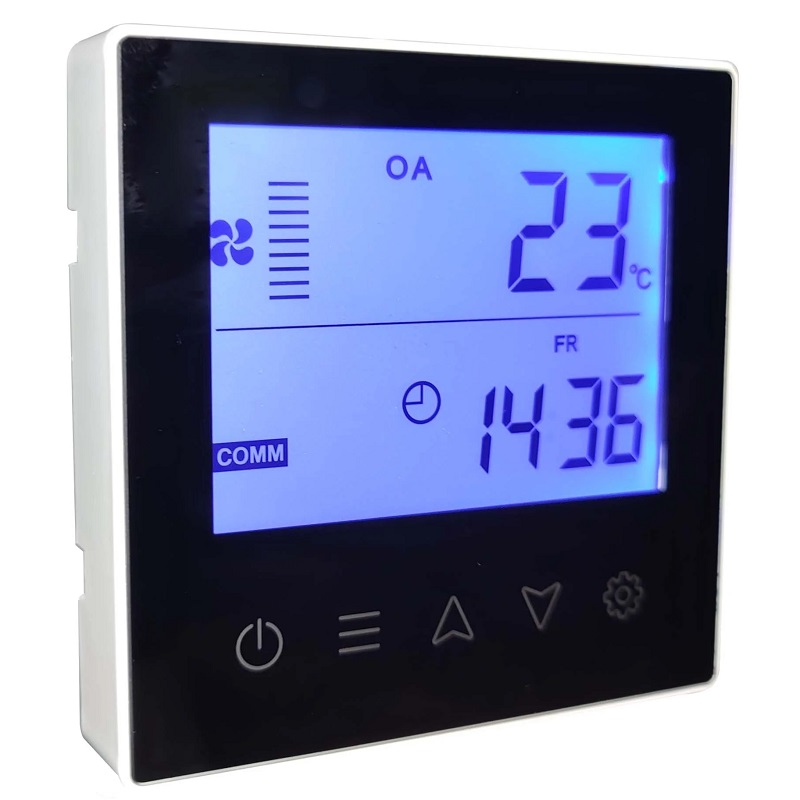

LCD wall control included.
Compact design.
EC inverter motors.
Aluminum plate heat exchanger.
Possibility of filters according to RITE.
Standard motorized by-pass and digital control panel.
Inlet and return temperature sensors.
Indication of dirty filters.
Connection for CO2 probe (see price of probe accessories), code 73EV001200
RCE-EC vertical series.
Prepared for outdoor installation.
Includes tejadillo and patas.
LCD wall control included.
Compact design.
EC inverter motors.
Aluminum plate interchanger.
Possibility of filters on RITE.
Motorized bypass as standard and digital control quadrant.
Intake and return temperature sensors.
Signaling of sucios filters.
Connection for CO2 sensor (ver precio accesorios sensors), code 73EV001200
Use of the commercial/industrial collector
Caudal Max Air Area (m3/h)1200
Single-phase electrical power supply
Ventilation Series RCE-EC vertical
Thermal performance (%) 73
Electric consumption (W) 548 mm
Alto unit interior 1110 mm
Ancho unidad interior 1000 mm
Interior unit base 380 mm
Weight 104 kg
