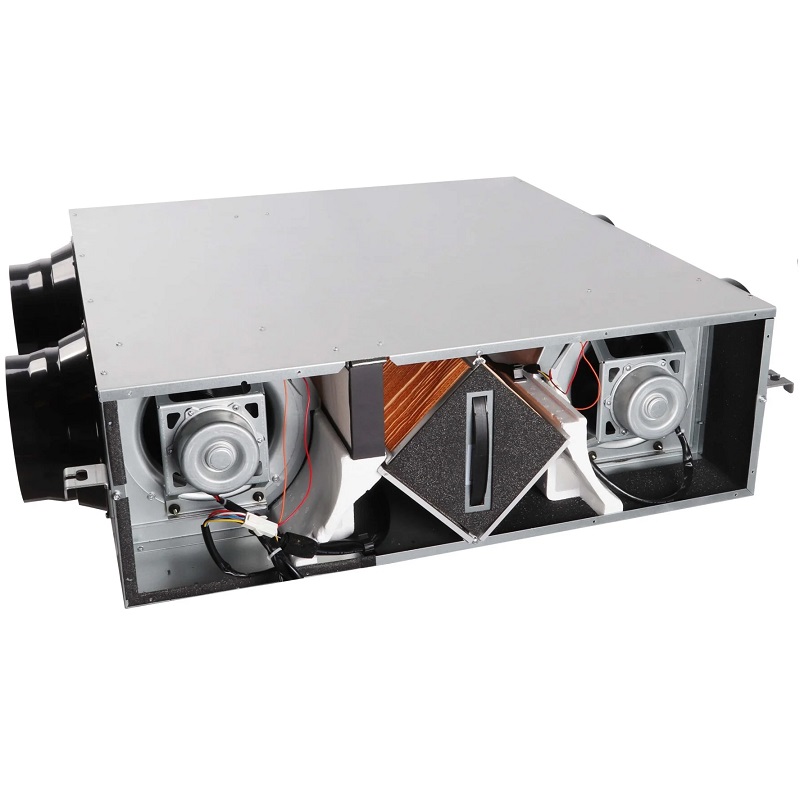

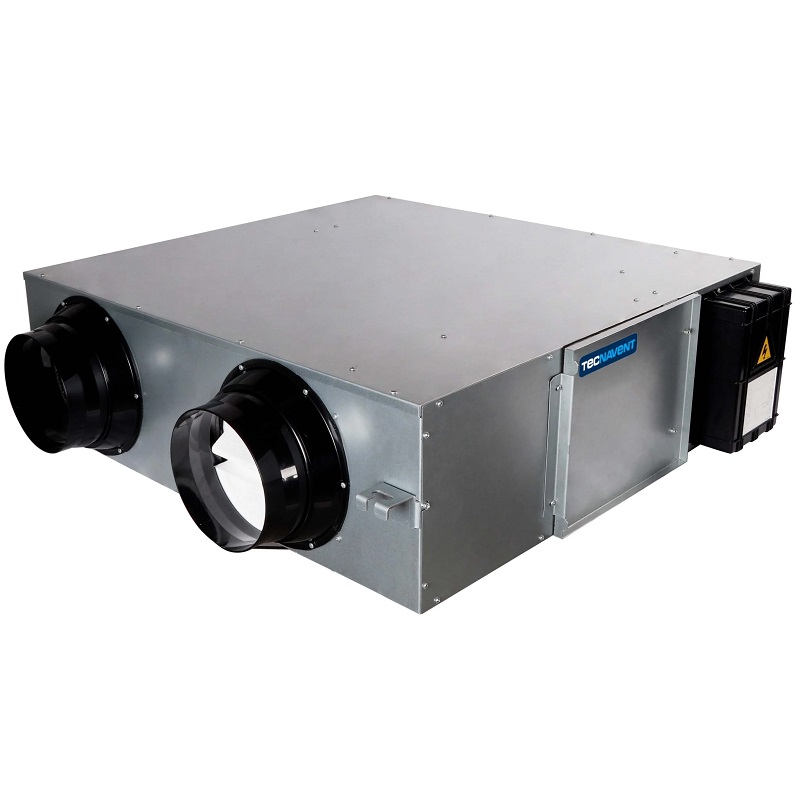

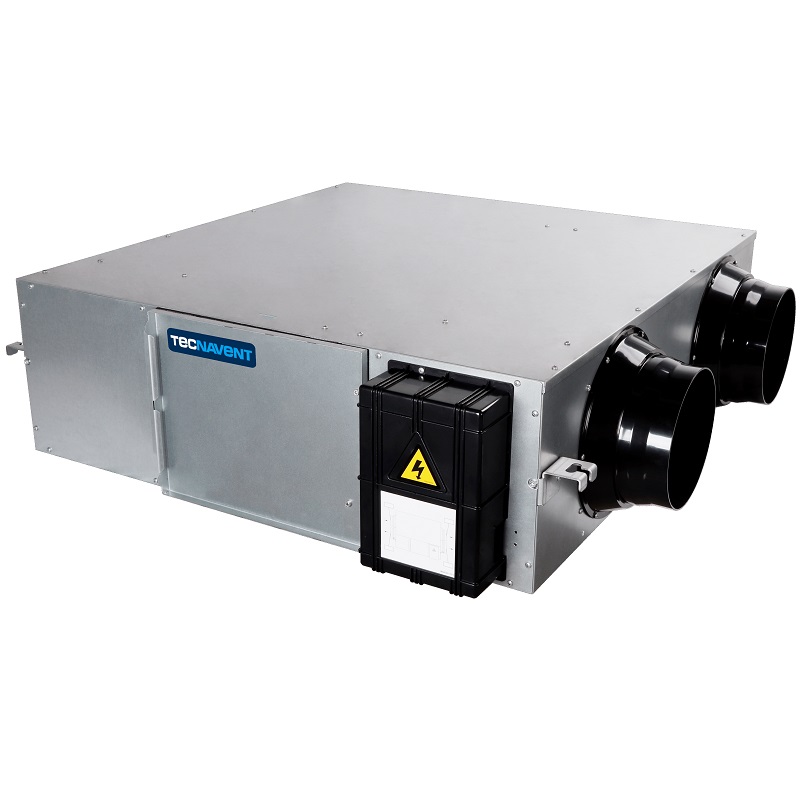

Tecna CH 500 EC/H heat recovery unit flow rate 500 m³/h
A ventilation solution with enthalpy recovery ideal for buildings in which improving energy efficiency and reducing their carbon footprint are of particular importance. Schools, universities, student and elderly residences are some of the buildings in which their installation is very adequate.
Available in horizontal version up to 2,000 m3/h, they are equipped with EC Inverter motors, bypass damper, fireproof and acoustic insulation and F9 filtration in delivery.
Availability of optional WiFi module
F9 pulse filtration.
EC inverter motors.
ERP ready
Compact and lightweight design.

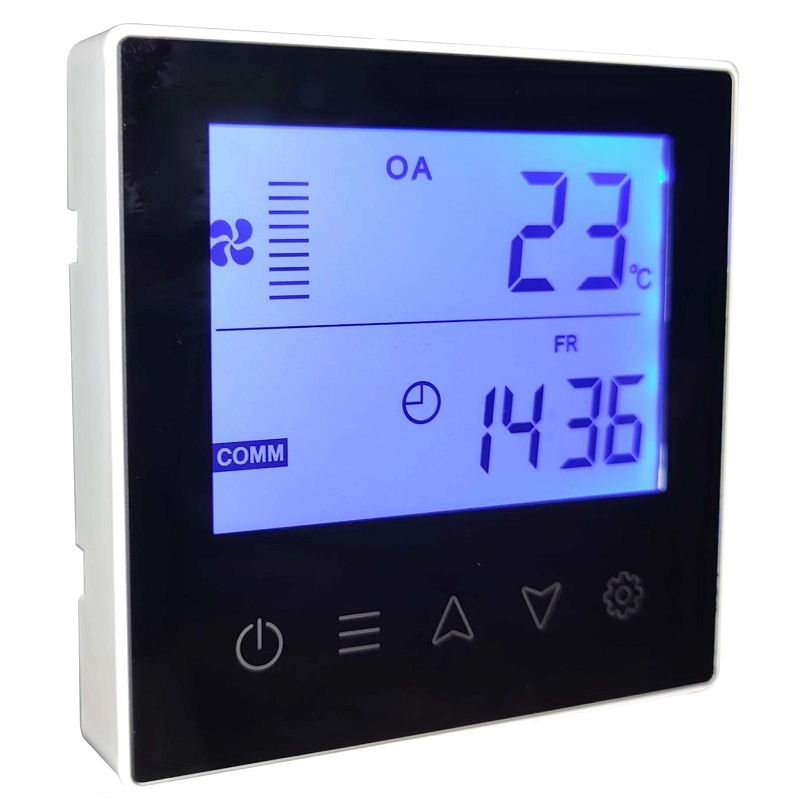

Smart control with LCD display included as standard. With extensive control possibilities: via CO2 probe and BMS with Modbus protocol. Constant flow independent of pressure via Modbus.
Temperature probes for inlet, outlet, return and extraction.
Signaling of clogged filters by differential pressure switch.
Optional WiFi module available for APP control
Air flow (m3 /h) 500
Defrost Yes (Automatic with adjustable range) CO2
BLDC Fan Type Fan Motors
Effective temperature (%) 76-84
Noise.Db(A) 39
Power 140 (W) 200-50/60 Hz
Sound power at 1.5 m 39 (dB A
Power (W) 162
Duct size 194
Supply voltage 220 ~ 240V/1Ph/50Hz
Size (WxHxD) 902x280x867
Weight 34 (kg
