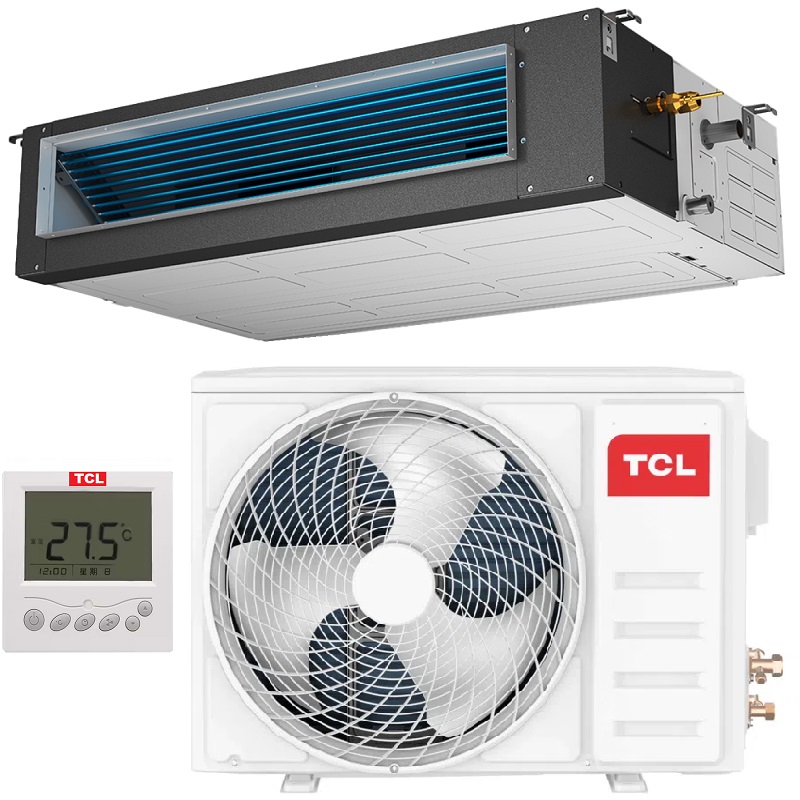

TCL M18D1W2 5.0 kW (230V) R32 Ducted Air Conditioner

TCL M18D1W2 5.0 kW (230V) R32 Ducted Air Conditioner

Long pipe design, the pipe length of the inverter unit can reach 25m and 10m height difference between the indoor unit and the outdoor unit, reducing the limitations of the installation location, the optional built-in drainage pump can lift water up to 1200mm, so it is very suitable for installation and improves drainage efficiency.

The static pressure can reach 100Pa, and the duct can be connected to provide comfortable flow to multiple zones, the maximum intake of 15% of the fresh air volume makes the indoor air healthier and more comfortable, the high-efficiency DC fan motor and the optimized air duct design enable 35dB quiet operation

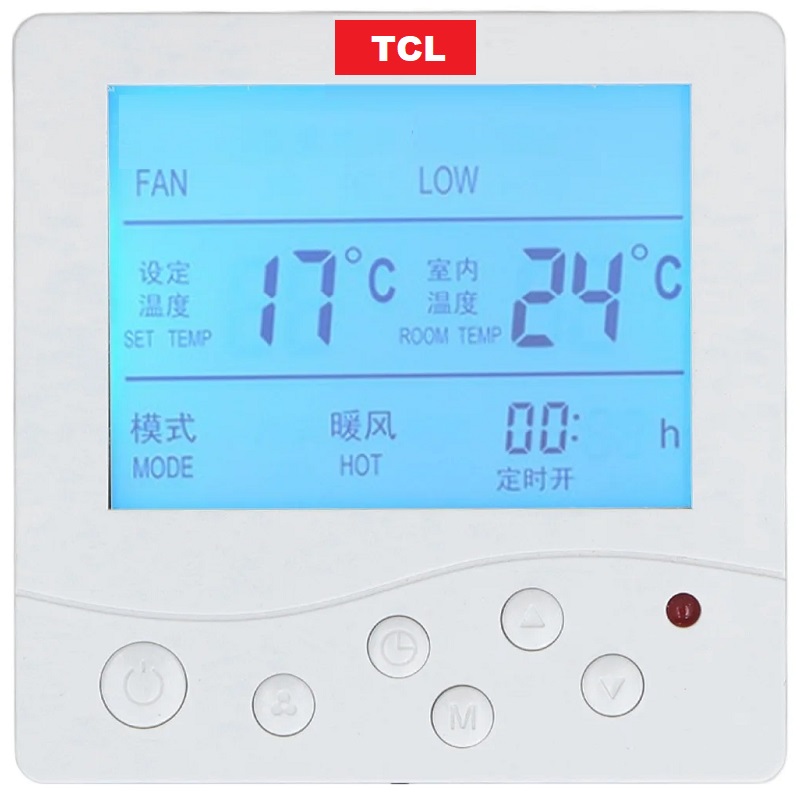

Control Type: Wired Control
Declared Cooling Capacity: 4700 (620~5100) (W)
Declared Heating Capacity: 4700 (760~5320) (W)
Pdesignc: 5000 (W)
Declared SEER: 6.1 (W/W)
Energy Class: A++
Average Pdesignh: 3900 (W)
Average SCOP: 4 (W/W)
Energy Class (Average): A+
Annual Cooling Energy Consumption: 273 (kWh/a)
Average annual energy consumption:1365 (kWh/a)
Moisture removal: 2 (Liters/h)
Indoor noise level (S/H/M/L/Silence): 56/53/48/42/38 (dB(A)
Indoor sound power (standard conditions): 56 (dB(A)
External sound power (standard conditions): 65 (dB(A)
Power supply: 230V/50Hz/1P
Power supply side: Outdoor
Voltage range: 165~265 (V)
Outdoor cooling operating current (A): 6.8 (1.6~12.0)
Outdoor heating operating current: 6.0 (1.7~12.0) (A)
Cooling power consumption outdoor: 1480 (200~2150) (W)
Power consumption for outdoor heating: 1390 (230~2150) (W)
Refrigerant type/charge/GWP/CO2 equivalent: R32/0.96 kg/675/0.648 tons
Compressor: Rotary
Indoor air circulation (cooling/heating): 850 (m³/h)
Outdoor air circulation: 2600 (m³/h)
External static pressure (nominal: 25 (Pa)
External static pressure (range): 0-100 (Pa)
Gas connection pipe: 3/8" (inch)
Liquid connection pipe: 1/4" (inch)
Application area: 20~35 (m²)
Maximum length of refrigerant pipe: 25 (m)
Maximum height difference: 10 v
Operating temperature range: 16-31 (℃)
Indoor ambient temperature range (℃)
Cooling: 17-32 / Heating: 0-30 (℃)
Outdoor ambient temperature range (℃)
Cooling: -15-53 / Heating: -20-30 (℃)
Outdoor ambient temperature range (℃)
Cooling: -15-53 / Heating: -20-30 (℃)

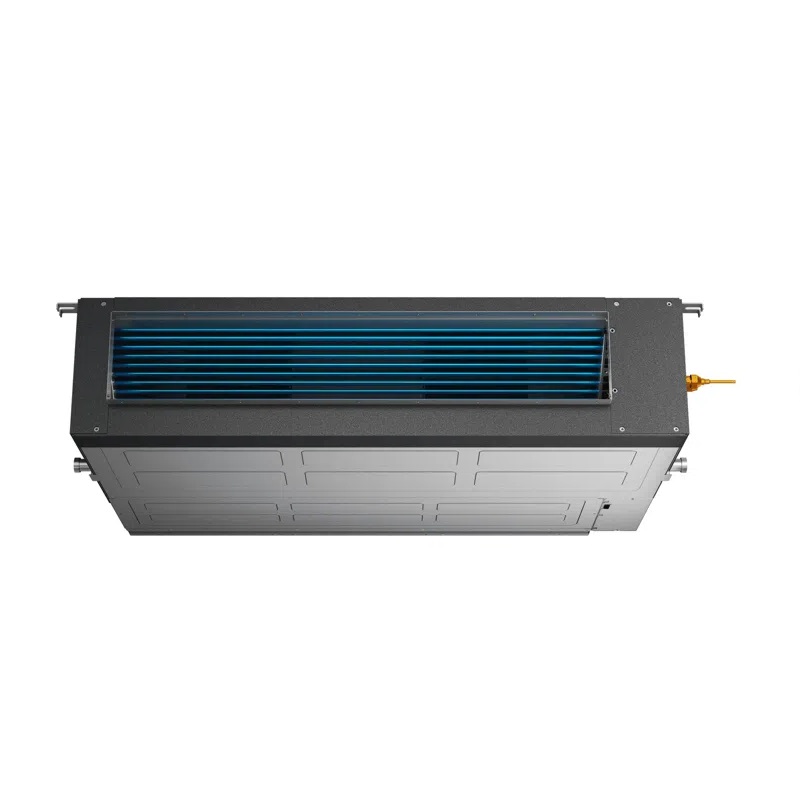

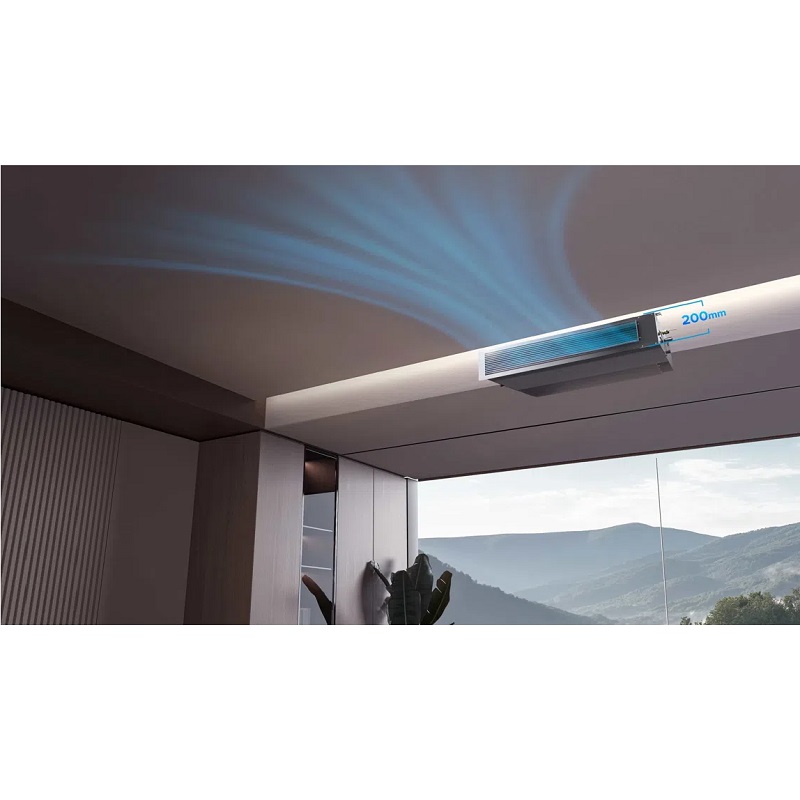

Internal net dimensions (W x H x D): 920×200×490 (mm)

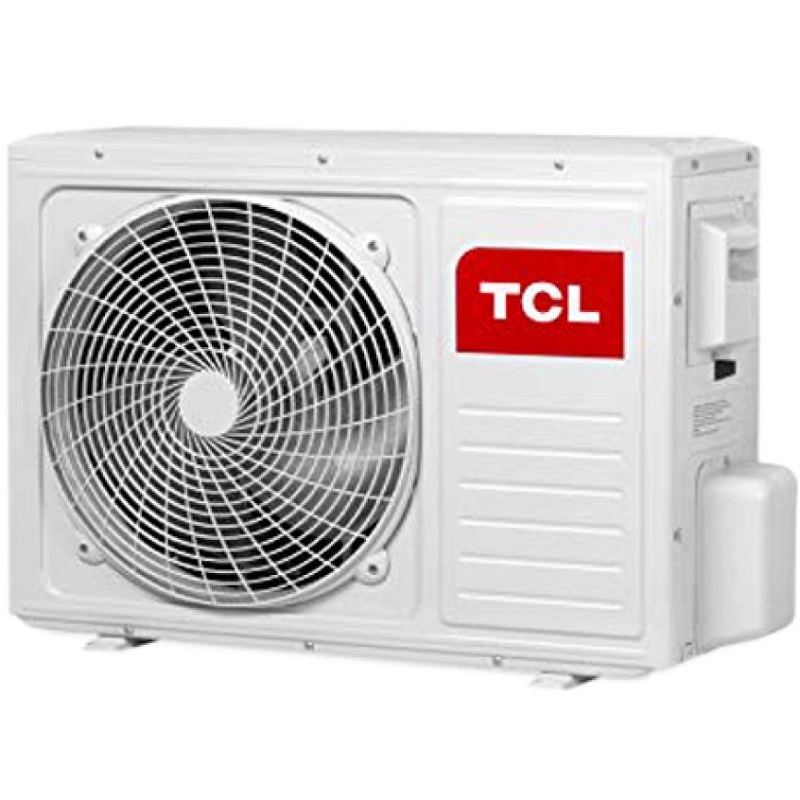

External net dimensions (W x H x D): 853×602×349 (mm)
Inner net weight: 18 (kg)
Outer net weight: 30 (kg)
Inner packaging dimensions (W x H x D): 1120×250×555 (mm)
Outer packaging dimensions (W x H x D): 890 × 628 × 385 (mm)
Inner gross weight: 21 (kg)
Outer gross weight: 32.5 (kg)
