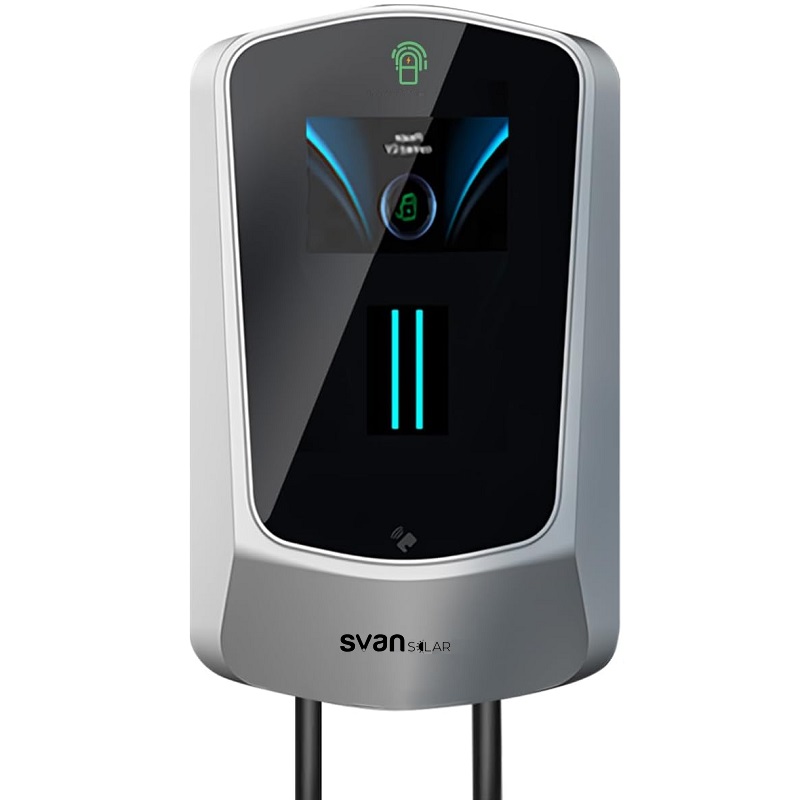

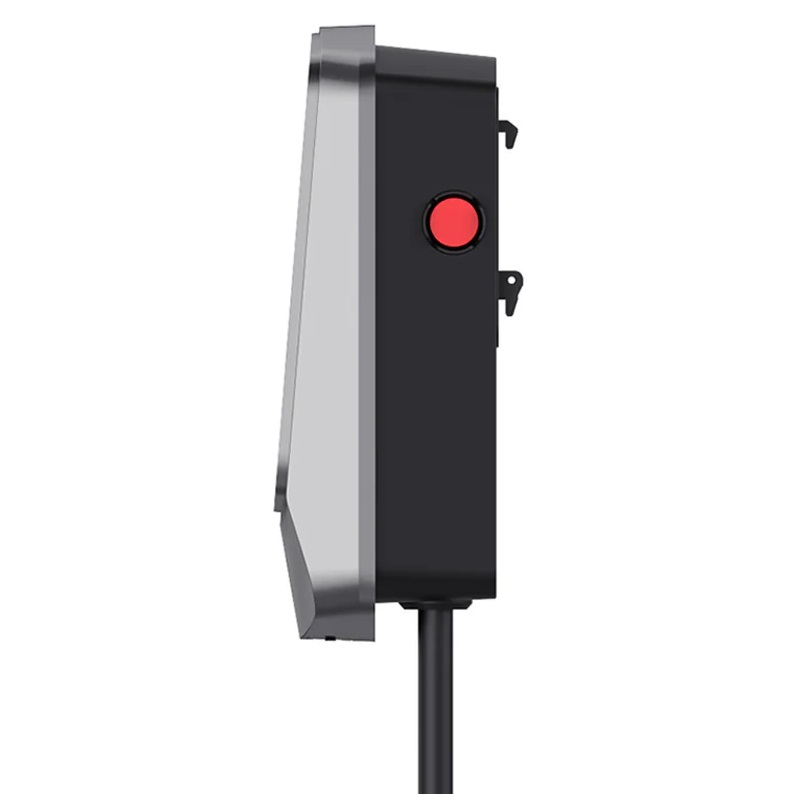

Svan Solar SEVC7K01 7kW Vehicle Charger / Single Phase (WiFi and Bluetooth)
Charger for electric vehicles with Svan Solar SEVC7K01 connection, universal and with a single electrical outlet. It is compatible with OCPP 1.6 and has an integrated dynamic load balancing. It has a charging capacity of up to 7 Kw in single-phase connection, they are innovative devices that allow fast and safe charging of electric vehicles.
This Svan Solar charger can be wall mounted and can also be installed on a single base or on the base model suitable for installing two chargers
Fast charging
Input voltage: 230 V AC
Input frequency: 50 Hz
Output voltage: 230 V AC
Maximum output power: 7 KW
Maximum output current: 32 A
Logo and logo lighting
Status indicator (indicator flashes when charging)
Power socket (plug holder for wired version)
Electronic board
Mounting bracket
Side window-RCD
Side window identification plate
Waterproof cable gland for cable communication
Waterproof cable gland for AC input cables
Fast charging cable: 5 meters
Leakage protection type: A + DC 6 mA.
Weight: H.295 x W.180 x D.120

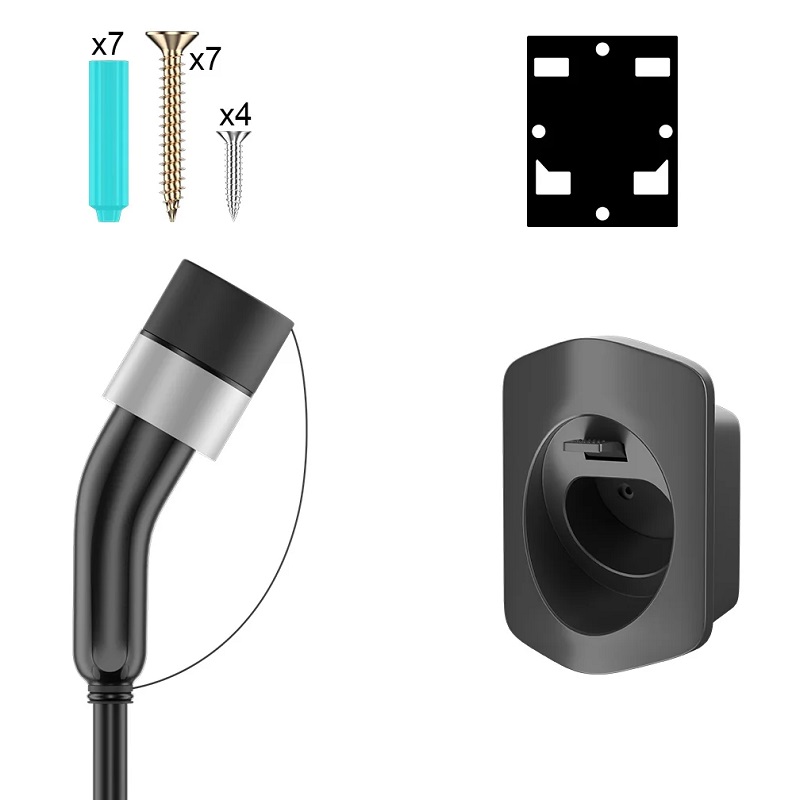

Packing list
Battery charging
5 meter cable
Plug holder
Screws (for installation)
Instructions
