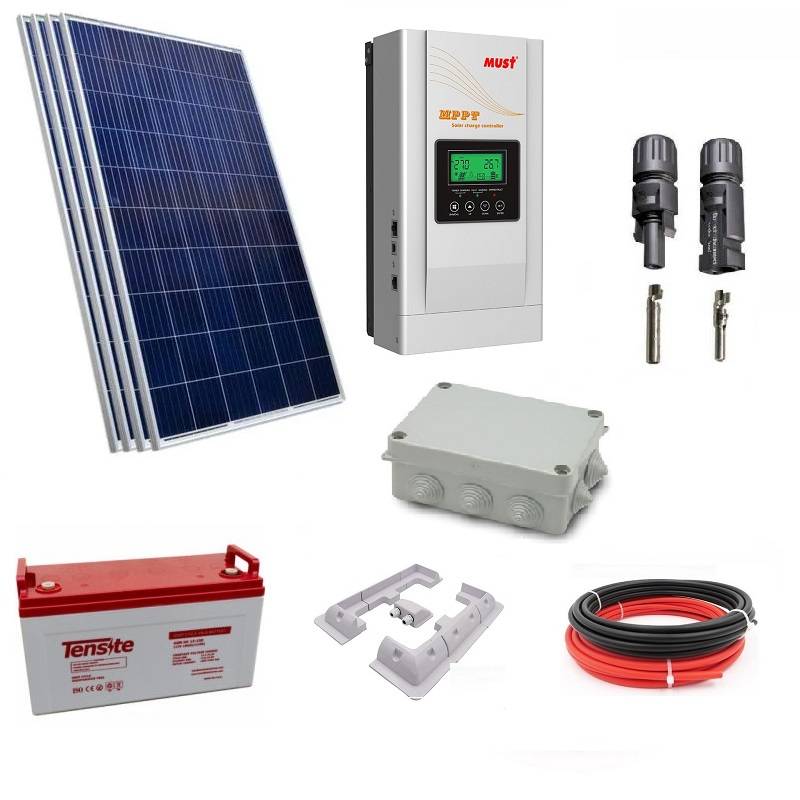

Solar Panel Country Kit 1000W 12V 4000Wh / day

Solar Panel Country House Kit 1000W 12V 4000Wh / day

4 x 200 W 12V Polycrystalline Solar Panels: it has a 25 year guarantee, offers exceptional performance to our 12V kit.

This solar panel is able to supply around 700Wh / day in winter to our solar installation and practically double in summer, 1500Wh / day with a 12V panel only.

Includes 1 meter of cable for each pole with their connectors.

It is the most powerful panel available for 12V installations, over 11A.

This photovoltaic module
Comes with an assembled aluminum frame ready to attach to any structure.

1 x Must Solar 1000W 12V inverter + Charger + Charge Controller:
Offers a very useful solution for isolated photovoltaic systems, because it allows to integrate to integrate to integrate the system in the same device, which also integrates an LCD screen which will allow you to see the state of charge and the voltage of the batteries

Less amperes entering in real time from the solar panels and battery output panels, in addition to having a small diagram on the same screen that will allow you to see how the power is flowing.

See if it's coming from the batteries, panels, or a back-up generator that we may have connected. The inverter is a pure sine wave

The battery charger has a maximum load of 20A and also incorporates a 50A PWM charge controller. The inverter warranty is 2 years.

1 x AGM battery 1x AGM battery 300Ah 12V Tensite: this battery with AGM technology has one of the best value for money for your solar kit and is one of AGM's largest monoblock models.

Prepared for slow downloads regularly, its average life is over 700 cycles, however, without abusing deep discharges and with use of the 30% we will double the battery life by easily beating from afar all 1200 cycles.

Thanks to its AGA, it does not need maintenance without danger for you to work in unventilated spaces as it is sealed.

The battery has screw terminals and practical side handles
be able to transport it easily. Perfect for small sunroom applications and to use as a service battery in large caravan installations.

1 x Structure This type of structure is suitable for surfaces already inclined and correctly oriented.

Ready to be fixed on a metal or concrete surface this structure has the profiles, anchors and pressers to hold the solar panels.

It can be located in a simple and it will be necessary to take into account the solidity of the surface where it is planned to be fixed (beams, concrete, etc.).

It includes all the material to the and mount the solar panels, except for what is necessary for the anchoring of the structure itself to the roof or to the ground, since it will be according to this surface.

In the packaging of the structure is attached the assembly manual.

5 meters of red PV ZZ-F 6 mm2 cable and 5 meters of black cable
PV ZZ-F of 6mm2. from the Top Cable brand.

10 meters of Red PV Cable ZZ-F 16mm2 and 10 meters of Black Cable 16mm2 PV ZZ-F to the charge controller.

It has double halogen-free rubber coating with great resistance to chemicals, oils, rays
ultraviolet light and resists immersion in water.

It is a flexible class 5 cable prepared for low voltage up to 1000V.

Its conductor is electrolytically tinned copper, and thanks to the design of its materialux, it can be installed in all kinds of environmental conditions: wet and dry areas, outdoor installation, buried, or even submerged in water (AD8) , without compromising the life of the cable.

Solar Home Kit 1000W 12V 4000Wh / day
The 1000W 12V 4000 Wh / day Solar Kit is a suitable kit
for when we want to have a solar energy system for abundant consumption during the day
TV
Lighting
Work tools,
Computers etc.
Thanks to the 4 panels it integrates.
In months of low solar production
The battery capacity may be just enough to keep a refrigerator going for days in bad weather.
We recommend that it be A +++ type and small in size
This kit is installed with all panels in parallel with the divider which is included
It also includes a roof structure and electrical accessories to let the kit perform flawlessly.
Energy production:
Solar Kit Country House 1000W 12V 4000Wh day
Energy captured in one day:
2,400 Wh / day in winter and 5,600 Wh / day in summer.
The production estimate was taken with a minimum of 3 hours of peak sunshine for the winter, while in the summer
7 hours of sun were taken
Consumption:
Common examples this kit can cover
Distributer:
1 x Refrigerator A +++
4 x 10W Led Lights for 4h / day
2 x Mobile charges for 3h / day
1 x Flat TV 50W for 4h / day
1 x Laptop for 4h / dayr
1 x Ordinateur portable pour 4h/jour
