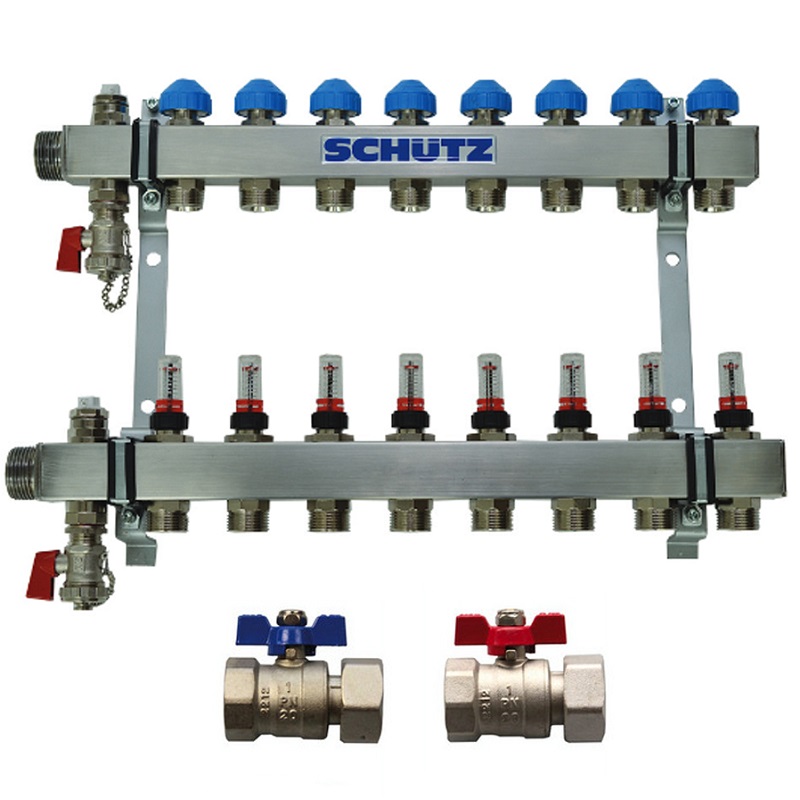

Schutz floor heating collector

Schutz floor heating collector

Schutz floor heating sensors are designed to integrate optimally into cabinets and with other elements of each system. Thanks to their compact dimensions and the vertical movement between blowing and return, they take up very little space. is another advantage of the 90-3 type collector.

Characteristic
Made of stainless steel
Easy to assemble flat face connection technology
Connection to the primary circuit by 1" external thread, right/left or mixed side
With integrated drain and purge valve
Patented purge
Hydraulically optimized dimensions (35 x 35 x 1.5 mm), models from 2 circuits to 14 circuits
Eurokonus type connections
SCHÜTZ has its own R&D
Can be installed in cabinets as low as 90mm deep

Measure
2 circuits: 170 mm.
3 circuits: 220 mm.
4 circuits: 270 mm.
5 circuits: 320 mm.
6 circuits: 370 mm.
7 circuits: 420 mm.
8 circuits: 470 mm.
9 circuits: 520 mm.
10 circuits: 570 mm.
11 circuits: 620 mm.
12 circuits: 670 mm.
13 circuits: 720 mm.
14 circuits: 770 mm.
