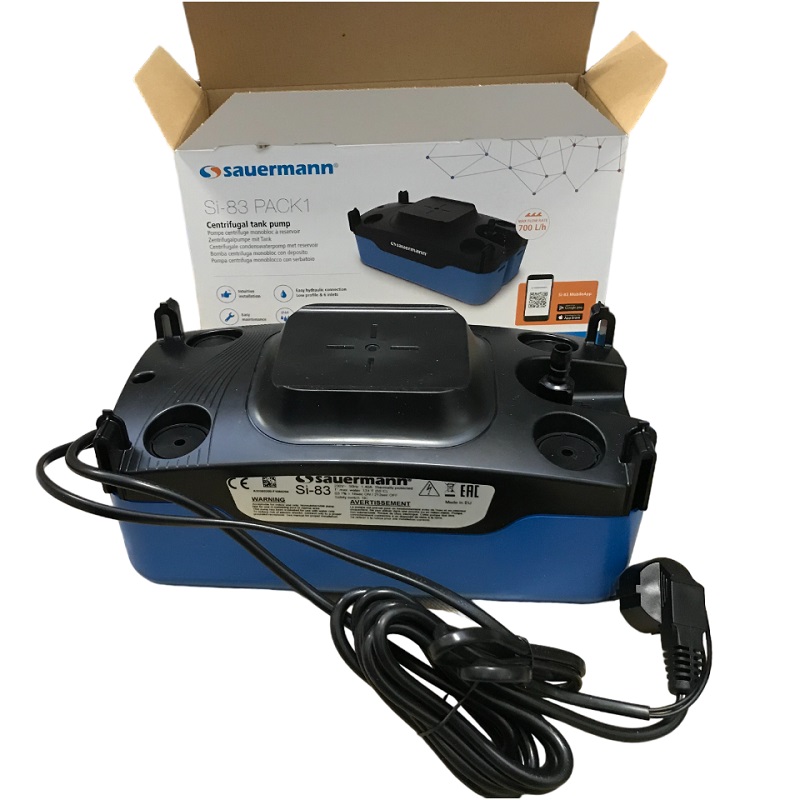

Sauermann SI-83 Condensate Pump

Sauermann SI-83 Condensate Pump

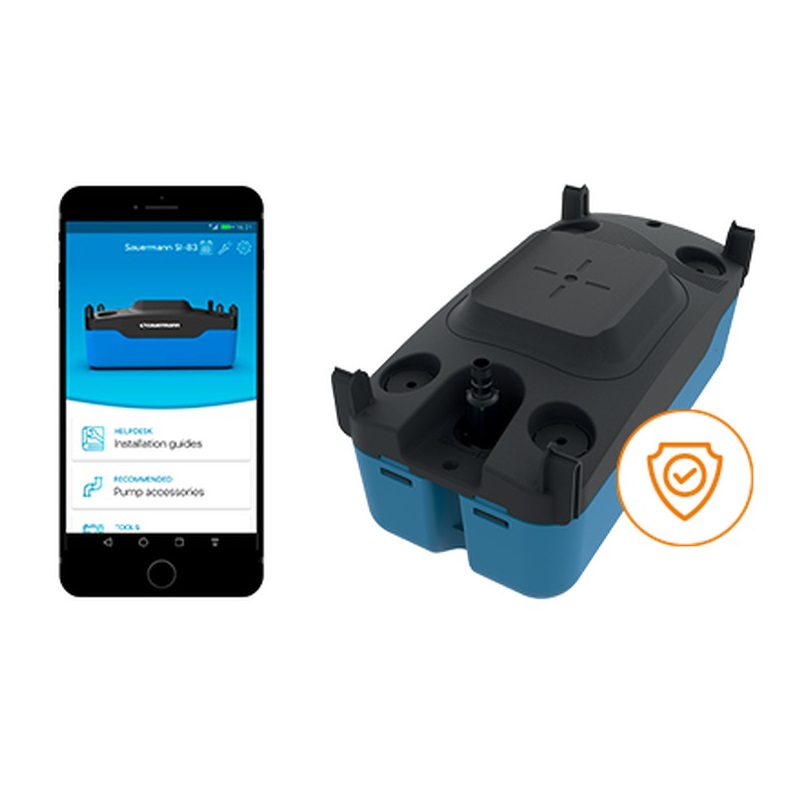

Sauermann engineers redesigned the tank pump from the inside out, making the Si-83 more compact than any other tank pump in its class, while redefining the ease of installing and maintaining a tank pump in the field. The Si-83 even comes with a custom smartphone app that makes installation both simple and intuitive.

The Si-83 is built from rugged materials and components for exceptional durability and reliability. The Sauermann Si-83 tank pump is perfect for residential air conditioners (up to 20 kW / 60,000 BTU) and heating units (73 kW / 250,000 BTU).

Maximum delivery rate: 700 l/hour
Maximum delivery height: 5.4 m
Maximum pressure: 5.7 m
Power supply: 230 V~ 50 Hz - 115 W – 1.4 A
Operating mode: 7% non-continuous
Maximum condensate temperature: 55°C
Maximum condensate acid: pH > 2.5 (Gas condensing boilers / gas condensing boilers)
Protection class: IP44 (splash-proof)
Bathtub volume: 2 litres
Colour: Black, blue
Safety contact
Resistant load 5 A 250 V (SI83CE01UN23, SI83CE04UN23: NC, SI83CE41UN23: NO, SI83CE71UN23: NC/NO)
Motor protection (thermal cut-off point) Yes: 120°C (reset automatic)
Dimensions
Pump L.287 mm x W.146 mm x H.129 mm
Packaging L.315 mm x W.151 mm x H.175 mm
Weight: 1.83 kg
