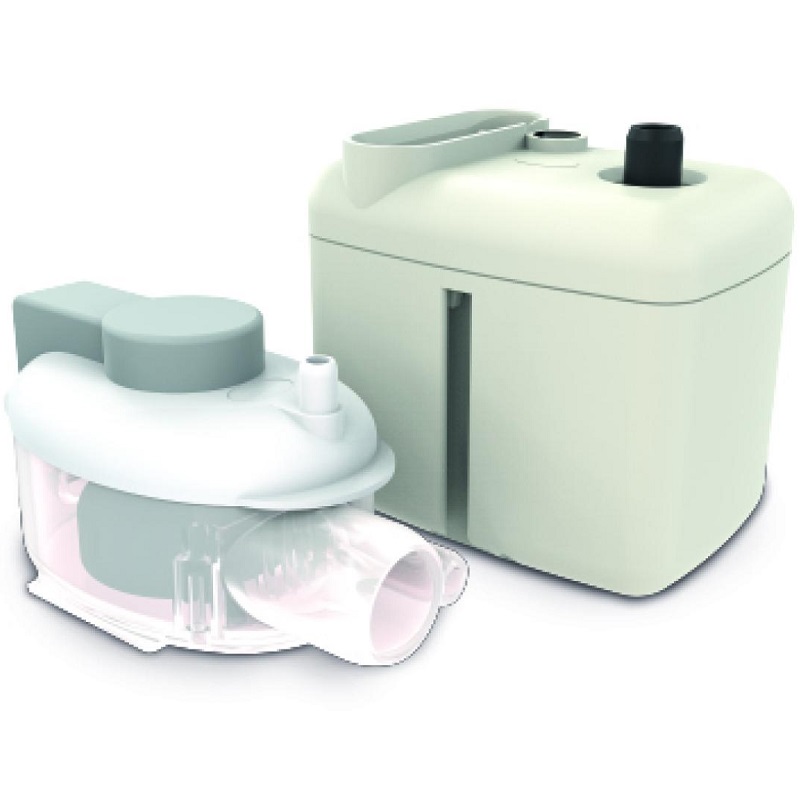

Sauermann SI-27 Condensate Pump
The Si-27 is designed for air conditioning equipment up to 20 kW – 67 kBtu – 5.6 RT, the piston pump technology has been specially designed to evacuate the condensate they produce, totally reliable in all types of environments, the Si-27 offers one of the lowest acoustic levels regardless of the volume of condensate to be evacuated.
For use with any air conditioning unit, up to 20 kW, wall-mounted, suspended ceiling, ducted or fan coil.
Specifications
Maximum flow rate: 20 l/h
Maximum discharge height ga: 10 m
Maximum pressure: 14 mm
Maximum suction height: 3 mm
Insulation class: Double insulation
Power supply: 230 V 50/60 Hz 14 W
Operating conditions: 100% continuous service
Protection: IP20
Safety switch: NO - NC 8 A resistive - 250V
Detection: Blockage detection
Package contents
1 x piston pump
1 x mounting bracket
1 x 1.5 m plug-in power cable
1 x transparent PVC tube Ø 1.5 m int 6 mm - 1 x clip 6
1 x detection unit (SI2958, 1.5m cable)
1 x detection unit installation kit
