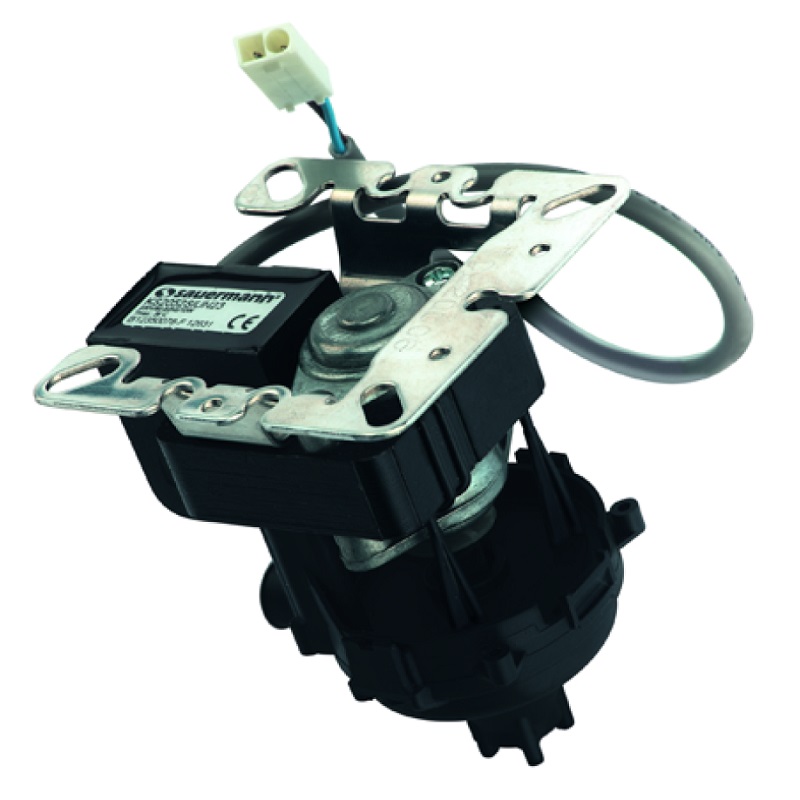

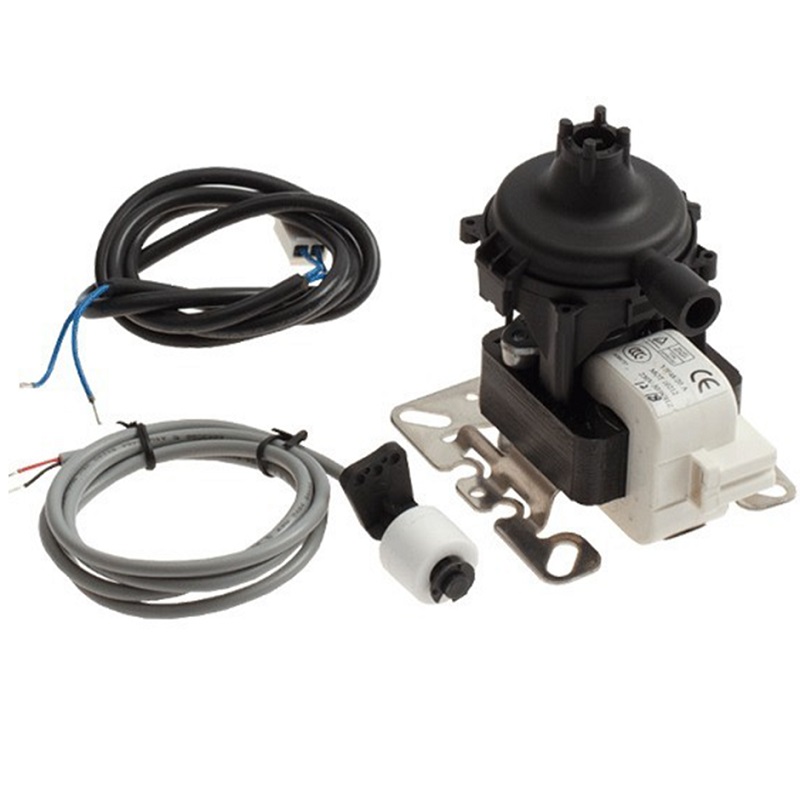

Sauermann SI-2052 Condensate Pump

Sauermann SI-2052 Condensate Pump

Noise level: 22 dB (A)
The pump is easy and quick to install
The pump is improved for greater practicality
Thanks to its versatility, the SI 2052 is suitable for replacing some standard discharge pumps on the market used in cassette air conditioners up to 20 kW, the centrifugal technology inside this pump is specially designed for continuous condensate removal in any type of environment with a very low noise level.

The single-level detection unit can be used as a safety contact (NC) for automatic shutdown of the air conditioning system compressor or as a solenoid valve.

Overmoulded cable
High resistance to pollution created by the general environment
Capable of evacuating small particles
Proven reliability
Quiet operation: 30 dBA
Cable to cable connector to simplify replacement
Improved motor efficiency reducing input power and energy consumption
Universal mounting bracket: allows the pump to replace many pumps on the market

Features
Maximum discharge height: 900 mm (flow rate = 24 l/h)
Sound level on pump installed at 1 m: 30 dBA
Power supply: 230V - 50 Hz - 14W
Safety detection levels: 18 mm
NC safety contact 50 VA resistive 250V
Thermal protection (overheating): Impedance protected
Duty factor: 100%
Continuous operation (On/Off detection device recommended)
IPX4 protection.
Pump dimensions L 88 x W 75 x H 94 mm
Pump diameter 46 mm
