Sauermann OMEGA PACK Condensate Pump
Maximum flow rate: 20 l/h
Maximum head discharge: 10 m
Maximum pressure: 14 mm
Insulation class: Double insulation
Power supply: 230V ~ 50/60Hz - 14W
Operating conditions: 100%
Colour: White
Safety switch: NC 8 A resistive - 250V
Detection: Detection unit
Sound pressure: 22 dBA

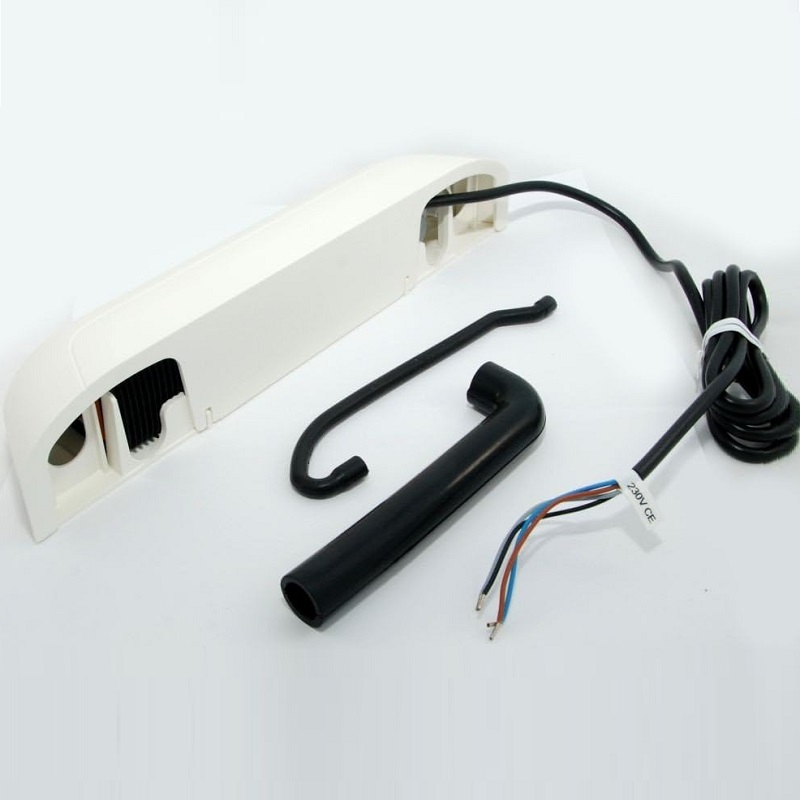

Package contents
1 Si-20 piston pump
1 detection unit, 0.63 m cable
1 2 rubber anti-vibration dampers
1 transparent PVC internal tube. 6 mm - L: 60 mm, equipped with a pre-assembled "safe drainage device"
1 1.5 m power cable: 2 power cables, 2 safety contact cables.
1 2-part housing (back plate and cover)
1 Central detection installation kit: 90° rubber elbow Ø int. 15 x L 152 mm, ventilation pipe Ø int. Øint. 4 x L 75 mm, 3 double wire clamps, 3
1 3 screws and dowels to fix the back plate
Dimensions: 358x85x102 mm
