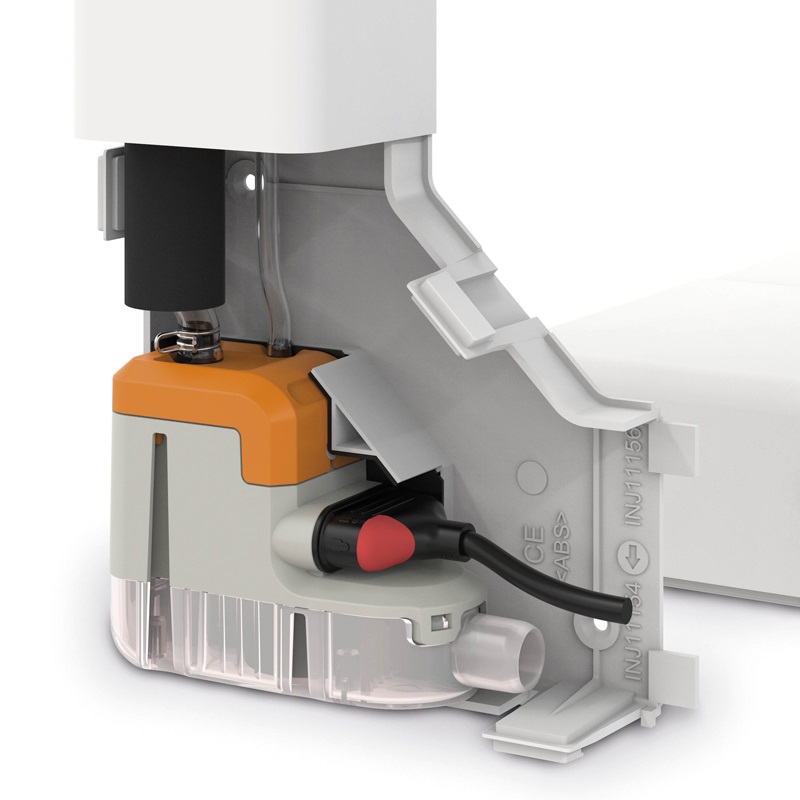

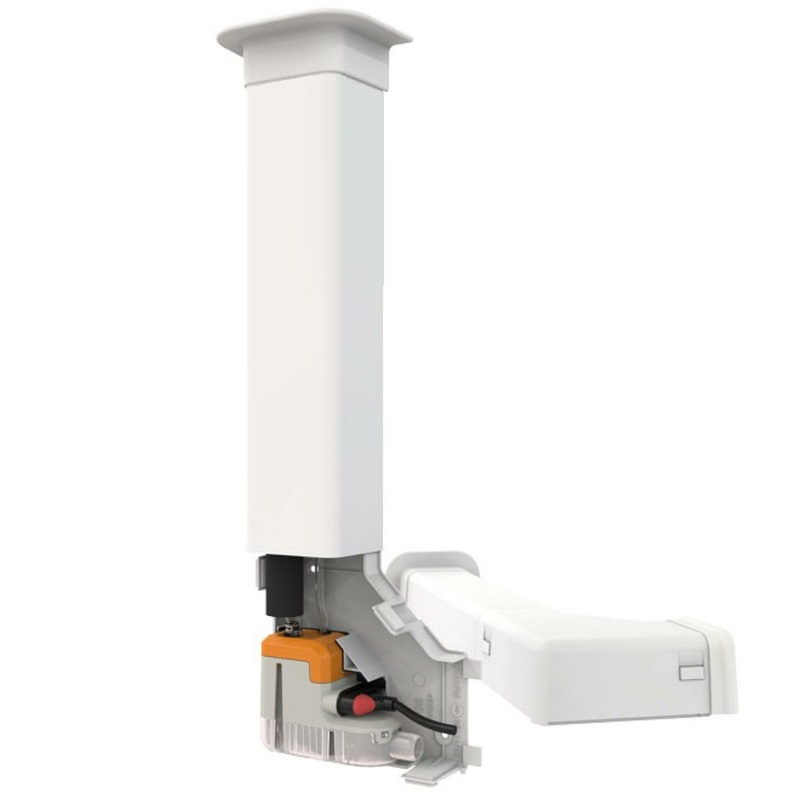

Sauermann DELTA PACK Condensate Pump
Quick assembly and disassembly for easy installation and maintenance
Low operating noise levels at only 22 db(A)
Patented piston pump technology
Maximum flow rate of 20 l/h
Maximum flow rate of 14 m (stop)
PVC hose
1 meter inner diameter Ø 6 mm insulated to 800 mm
Channel angle 2-part rubber hose
50 mm with inner diameter: Ø 15 mm
Double wire terminals: Ø 16 mm and Ø 6 mm
Maximum flow rate: 20 l/hour
Maximum delivery height: 10 m (flow rate = 4 l/h)
Maximum pressure: 14 m (flow rate = 0 l/h)
Insulation class: Double insulation
Power supply: 230 V ~ 50/60 Hz ~ 14 W
Operating mode: 100% - continuous operation
Protection class: IPX4
Safety contact
NC (open) Resistant load 8 A / 250 V
Control
integrated float switch
Noise level at 1 m distance: 22 dBA
Switching point: 18 mm
Switching point: 13 mm
Alarm switching points: 21 mm
Space for refrigerant lines max.
Ø: 3/8" - 5/8" insulated (up to 13 kW)
Signal white RAL 9003

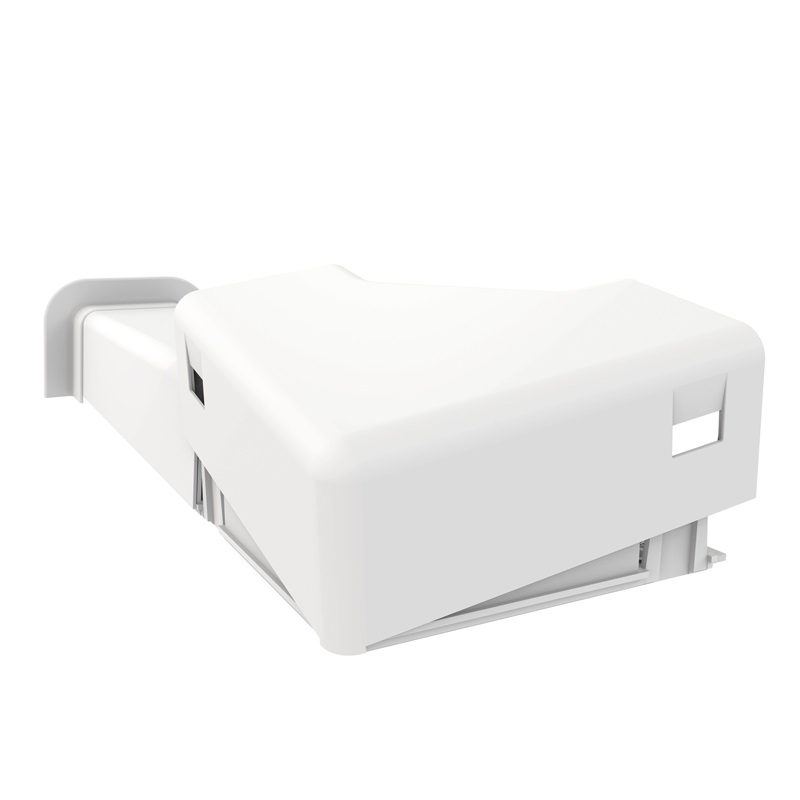

Corner piece dimensions (LxWxH): 130x130x60 mm
Channel dimensions (LxWxH): 750x80x60 mm
Weight: 1.55 kg
