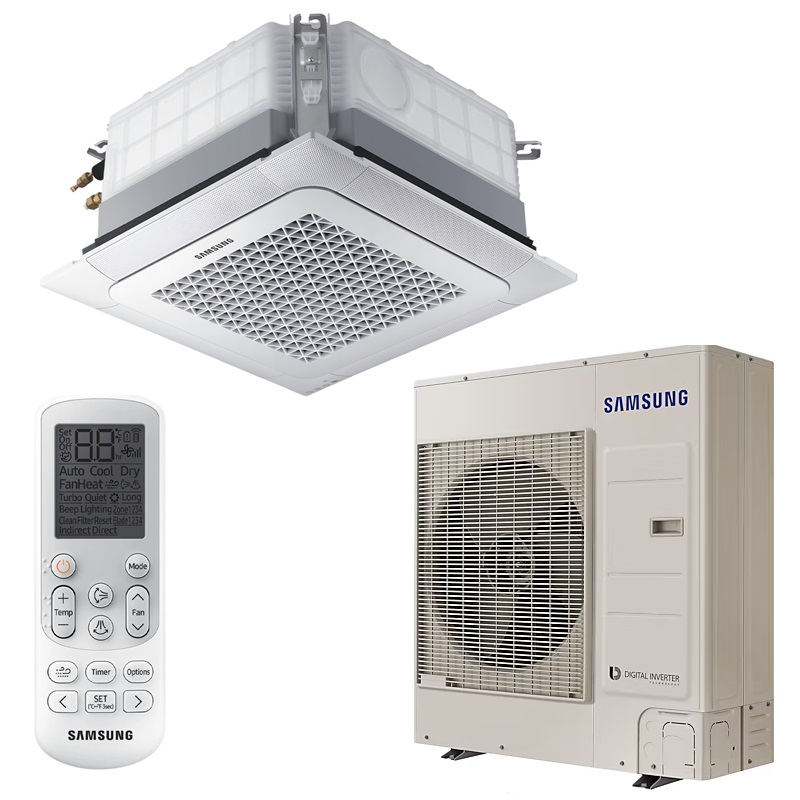

Samsung Cassette Air Conditioner KIT-F-AC071RN4
Windless, Windless cooling effectively maintains comfortable cool levels without the unpleasant sensation of cold wind, Cool air is gently dispersed through 15,672 micro-vents, so you won't be too hot or too cold, Maximize energy savings, Motion detection sensor automatically turns off or changes the set temperature based on room occupancy, and learns occupancy patterns to reduce run time between occupied and unoccupied periods, MDS use is optional
Optimized blades, Larger optimized blades facilitate a wider cooling range and better air circulation in the room, This advanced technology also cools the space much faster, leaving no area untouched, Intelligent and comfortable operation, The 4-way windless mini cassette boasts intelligent and comfortable operation
Nominal cooling capacity: 12.00 kW
Nominal thermal capacity at +7°C: 13.20 kW
Energy efficiency SEER cooling: 6.0/ A+
Thermal energy efficiency SCOP: 4.0/ A+
Air flow rate Indoor unit (A/M/B): 72 m³/min
Sound power Indoor unit: 45/40/35 dB(A)
Outdoor unit: 56/54 dB(A)
Power supply Indoor unit Φ, n.o, V, Hz 1Φ, 2, 220~240 V, 50 Hz
Single phase outdoor unit Φ, n.o, V, Hz 1Φ, 2, 220~240 V, 50 Hz
Relations
Piping connections Liquid pipe ø: 3/8"
Gas pipe ø: 5/8
Min/max pipe length: 50 m
Maximum pipe height: 30 m
Dimensions
Panel model PC4NUNMAN
Net dimensions (H x W x D): 48 x 950 x 950 mm
Weight: 6.3 kg

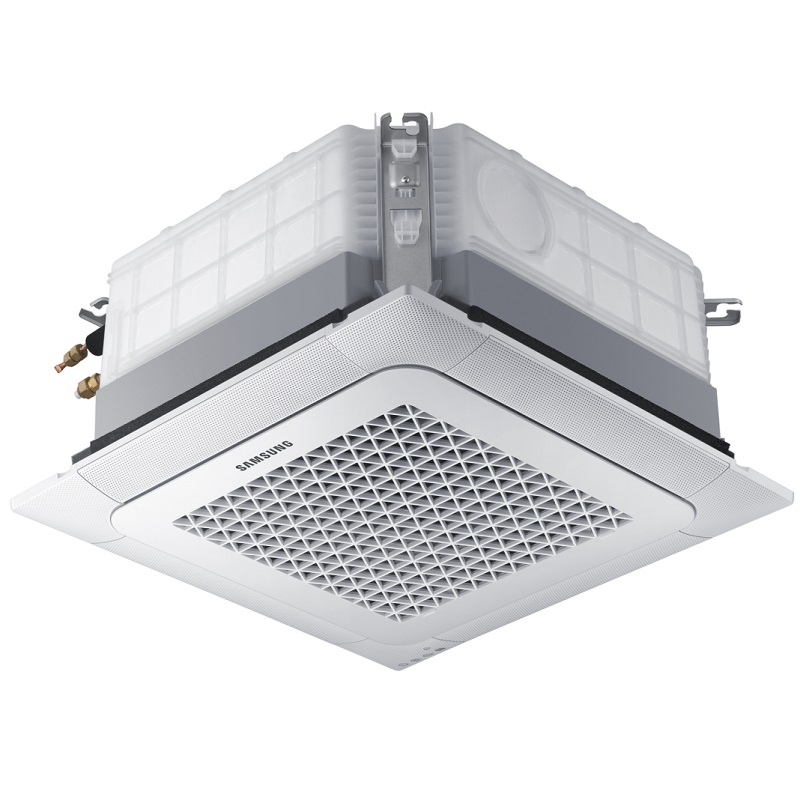

Dimension (H x W x D) Indoor unit: 288 x 840 x 840 mm

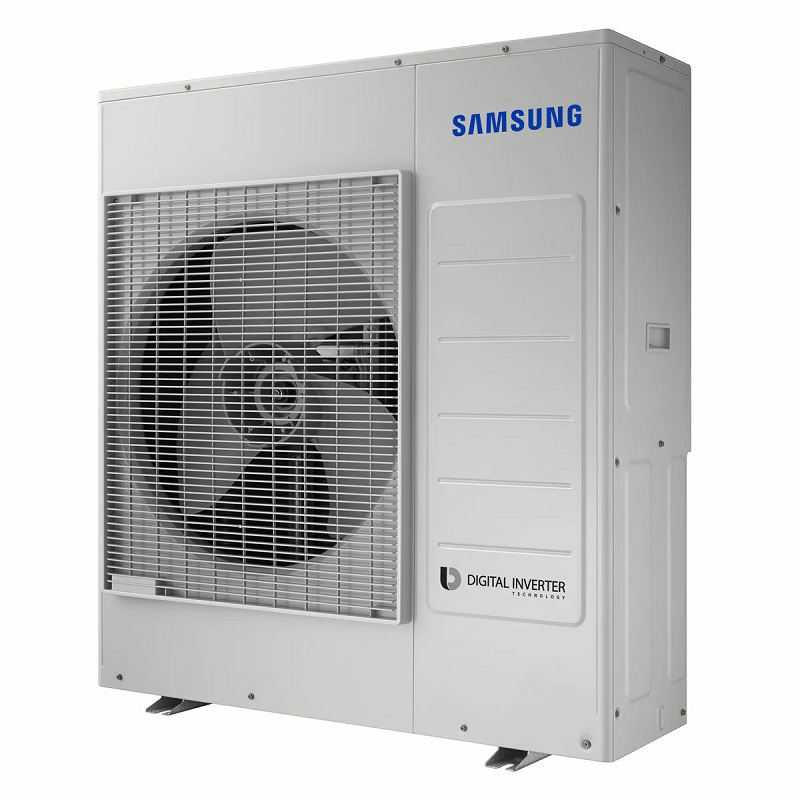

Outdoor unit: 998 x 940 x 330 mm
Indoor unit weight: 18.0 Kg
Outdoor unit weight: 81 Kg
