Samsung AC035RN1DKG/EU + AC035RXADKG/EU Cassette Air Conditioner

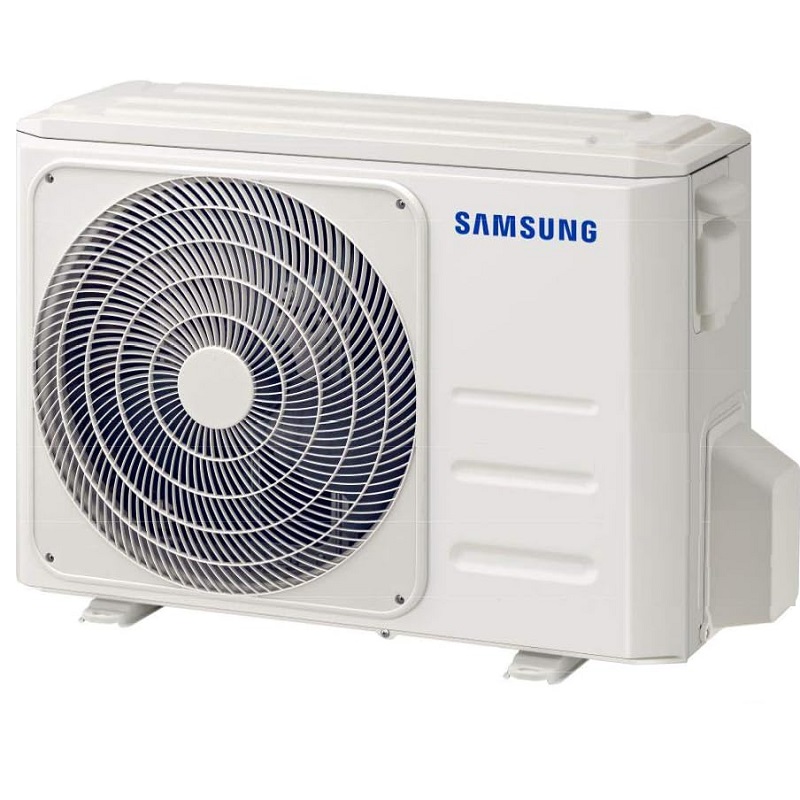

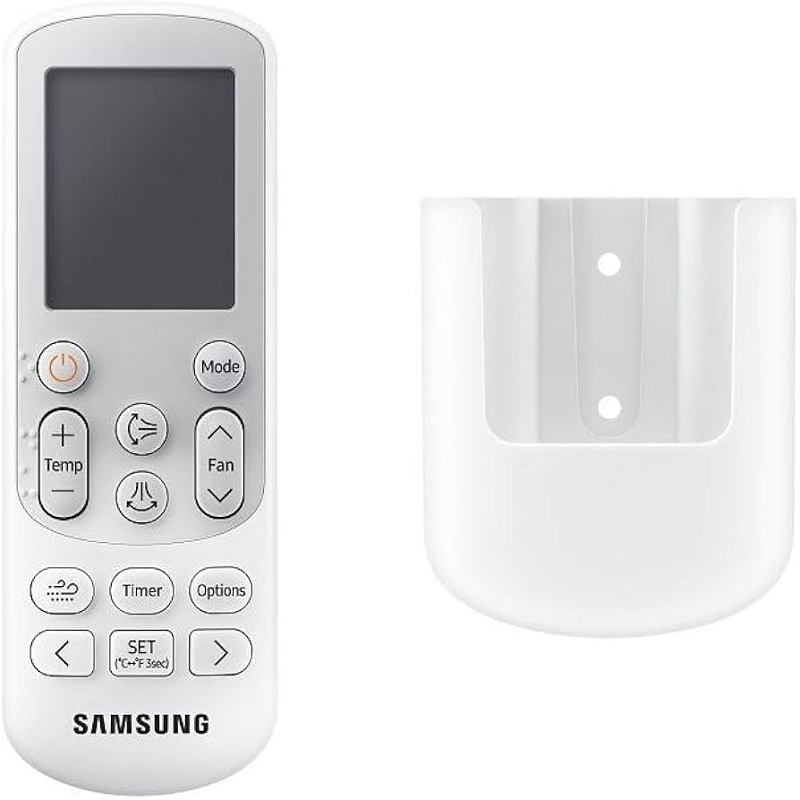

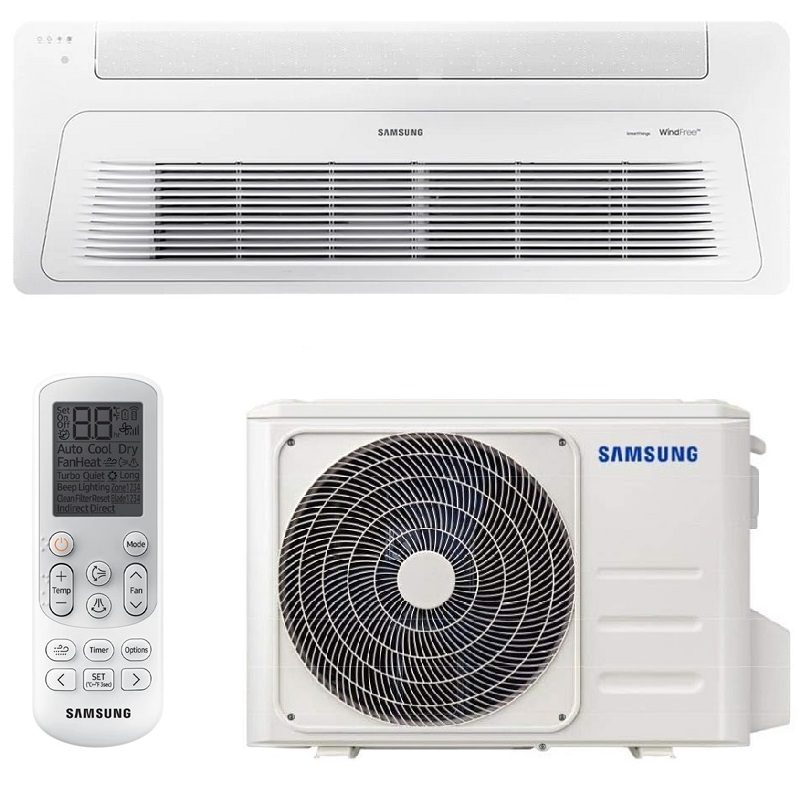

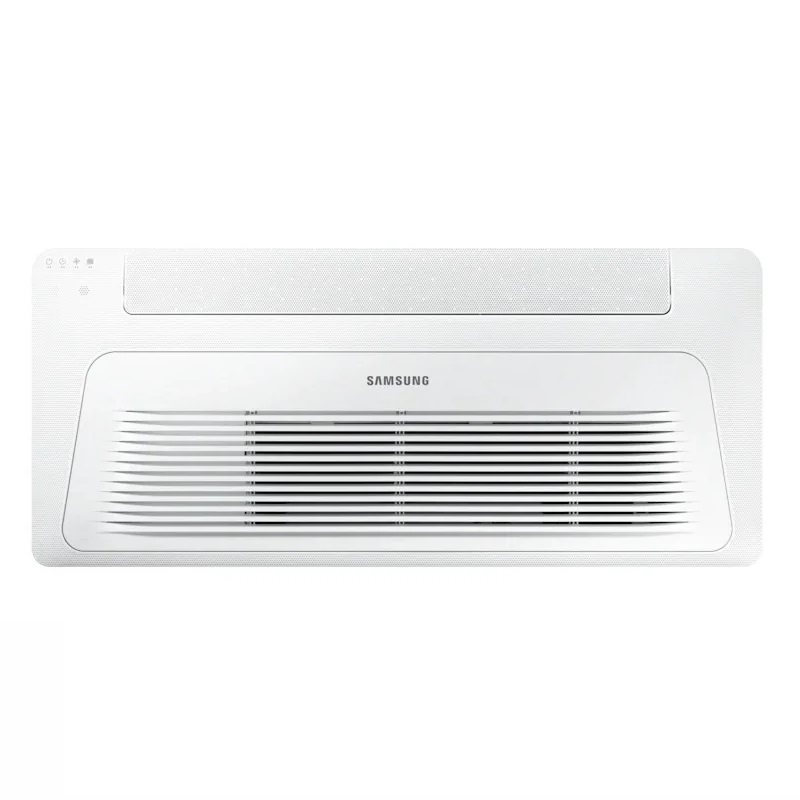

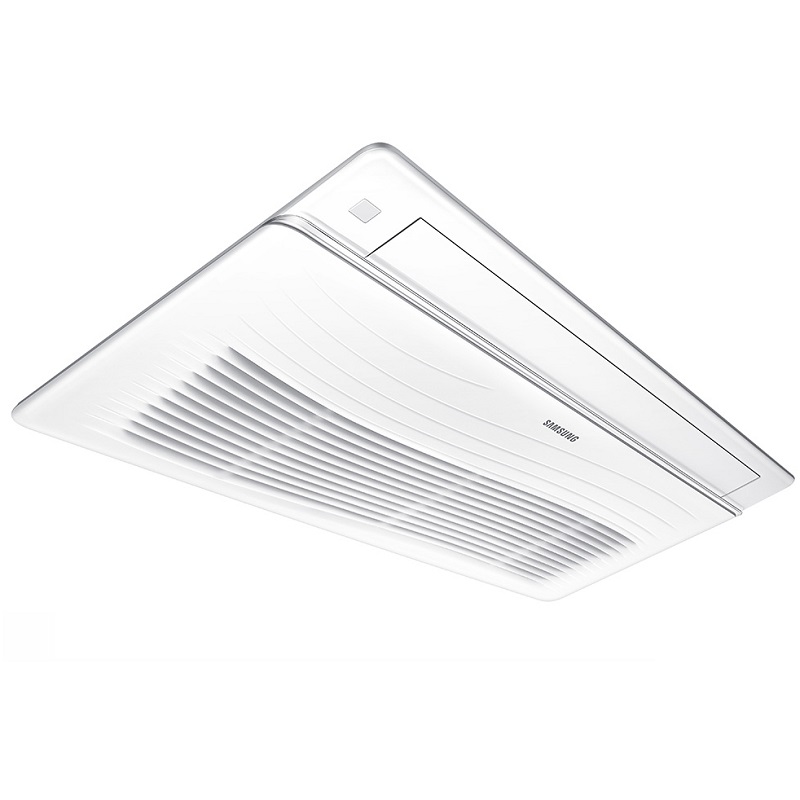

Mono-split Cassette 1-way WindFree air conditioner from Samsung in White, with a heating capacity of 4.0 kWatts and a cooling capacity of 3.5 kWatts, this single-phase unit operates on R32 gas, it is composed of the AC035RXADKG/EU outdoor unit and the AC035RN1DKG/EU indoor unit, the unit can be controlled remotely on a smartphone and tablet thanks to the optional Wi-Fi interface and the "SmartThings" application
Nominal cooling capacity: 3.50 kW
Nominal heating capacity at +7°C kW: 4.00 kW
SEER energy efficiency when cold: 6.2/ A++
SCOP thermal energy efficiency: 4.0/ A+
Flow air flow Indoor unit (A/M/B): 9.0/8.2/7.2 m³/min
Sound power Indoor unit: 35/32/29/28 dB(A)
Outdoor unit: 48/48 dB(A)
Power supply Indoor unit Φ, n.o, V, Hz 1Φ, 2, 220~240 V, 50 Hz
Single phase outdoor unit Φ, n.o, V, Hz 1Φ, 2, 220~240 V, 50 Hz
Piping connections Liquid pipe ø: 1/4"
Gas pipe ø: 3/8"
Min/max pipe length: 3/20 m
Max pipe height: 15 m
Dimensions
Dimensions (height x width x depth)
Indoor unit: 135 x 970 x 410 mm
Outdoor unit: 548 x 790 x 285
Net weight Indoor unit: 9.2 Kg
Outdoor unit: 32.5 Kg
Panel model PC1NWFMAN
Dimensions (height x width x depth): 1,198 x 35 x 500 mm
Weight: 4.3 kg
