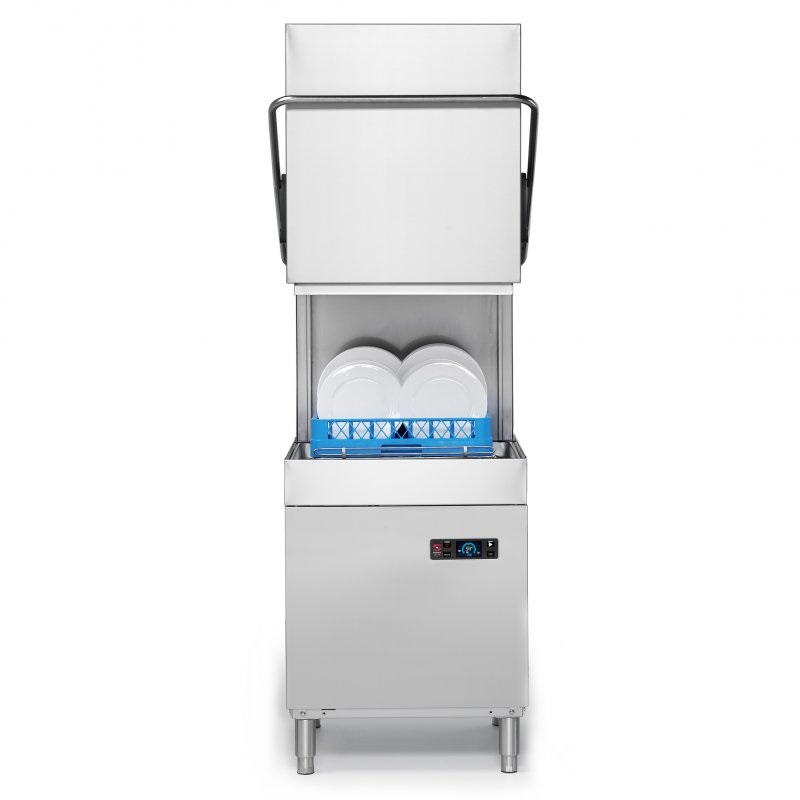

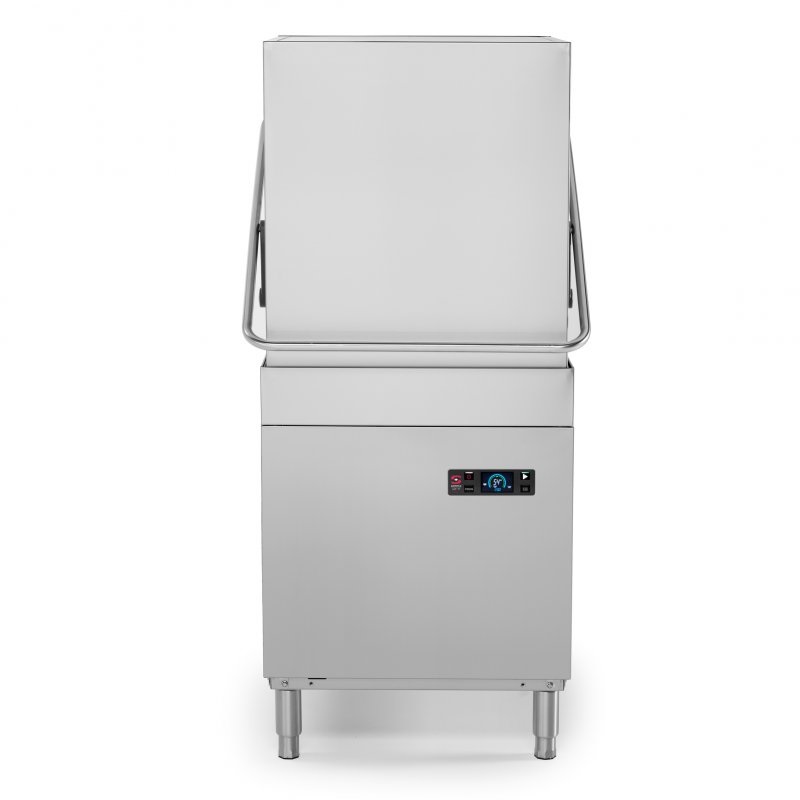

Sammic industrial extractor dishwasher AX-100
New built-in frames
Ergonomic design with rounded corners to prevent dirt build-up and facilitate cleaning.
Compact tank volume (50% water saving compared to the previous range).
Hydroblade wash arm
Improved nozzles for greater washing efficiency.
The "one-piece" design ensures durability and impact resistance.
30% saving in water consumption during washing compared to the previous range.
3-stage filtration system: surface, tank and suction
Preserves the washing water in optimal conditions to maintain constant washing efficiency.
Built to withstand
"Flow" opening mechanism: allows you to lift the bell with less effort
High load capacity 43 cm: suitable for GN 1/1 and Euronorm
Stainless steel surface filters ensure greater stability and resistance to intensive use
Premium dishwashing
Soft start: gradual start of the wash pump to protect fragile objects.
Color LCD screen: intuitive communication of the machine status through messages, color codes and icons.
Special cycles: selection of the appropriate washing program using icons.
Customizable: allows you to adapt the main parameters of the machine to the needs of each user.
Temperature screen
Wash Plus + function: increases the intensity of the wash cycle for greater efficiency
Control panel with IP65 moisture protection.
Basket dimensions: 500 mm x 500 mm
Useful height: 430 mm
Cycles: 6
Cycle duration(s): 60 / 90 / 100 / 150 / 210"
Basket production / hour: 60 / 40 / 36 / 24 / 17
Boiler wash capacity: 8 l
Tank capacity: 25 l
Energy consumption and savings
Water consumption per cycle: 2.8 l
Automatic Eco mode in: 25'
Automatic shutdown if inactive: 120'
Energy consumption
Energy consumption per cycle: 0.22 kWh
Tank filling consumption: 1.07 kWh
External dimensions
Net weight: 102 kg
Wash temperature: 87 °C
Net weight: 102 kg
Pump power: 750 W / 1 HP
Tank power: 2500 W
Boiler power: 7500 W
Total power: 8250 W
Width: 650 mm (width with handle: 725 mm)
Depth: 755 mm (base with handle: 835 mm)
Height: 2000 mm / 1525 mm
External dimensions of the packed machine
760 x 860 x 1530 mm
Gross weight: 113 kg
