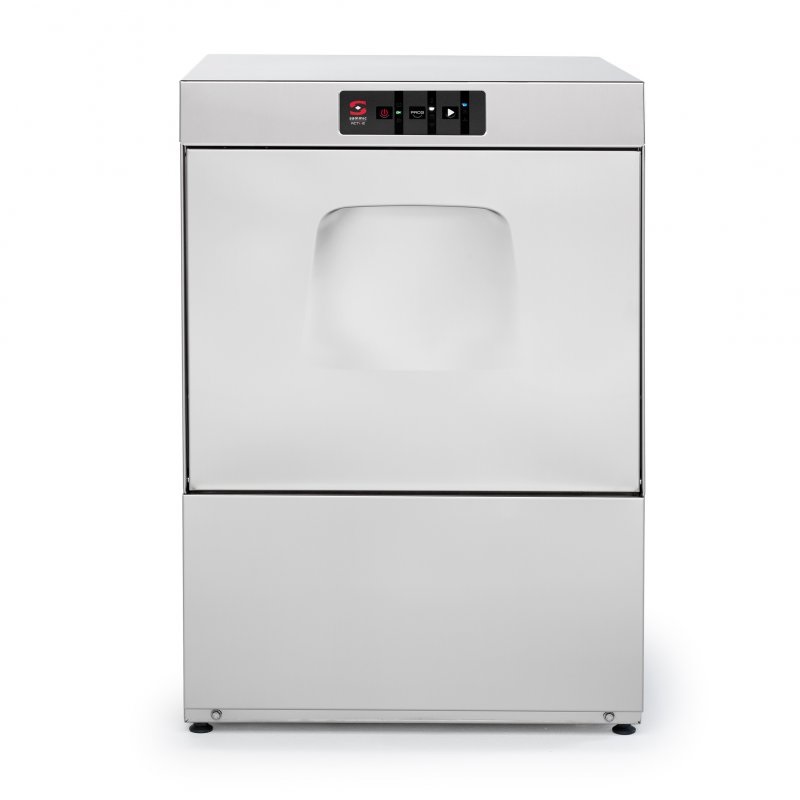

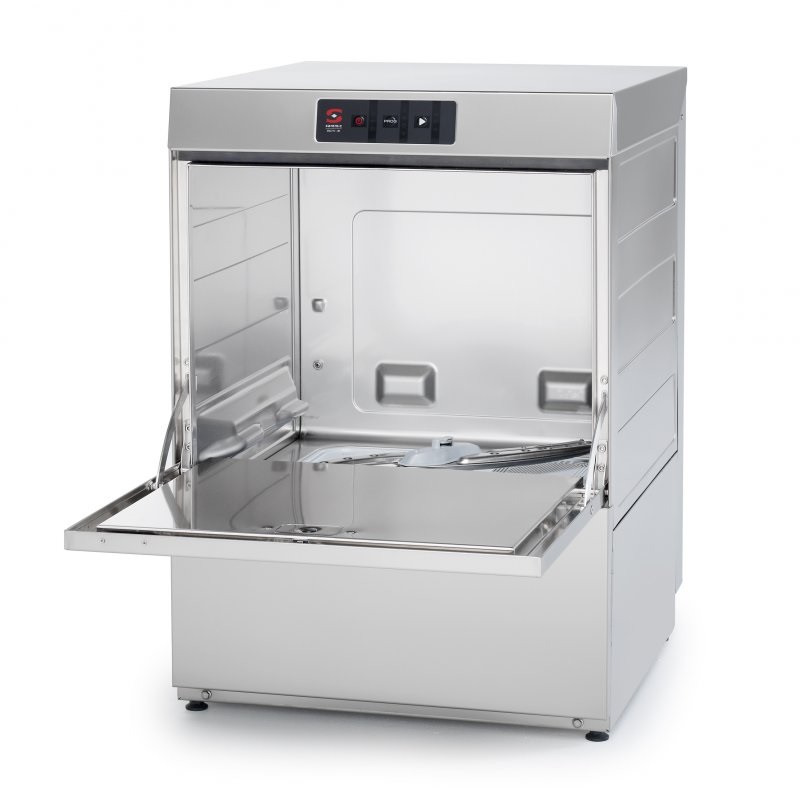

Sammic industrial dishwasher AX-50

Sammic industrial dishwasher AX-50

New recessed frames
Ergonomic design with rounded corners to prevent dirt accumulation and facilitate cleaning.
Compact tank volume (50% water saving compared to the previous range).
Built-in basket rails
Hydroblade™ Wash Arm
Improved nozzles for greater washing efficiency.
The “one-piece” design provides durability and impact resistance.
30% saving in water consumption during rinsing compared to the previous range.

3-stage filtration system: surface, tank and suction
Preserves wash water in optimal conditions to maintain constant washing efficiency.
Thanks to their “easy-on” design, the surface filters can be quickly removed, without the need to dismantle the spray arms.
“Easy-grip” door: new design with handle integrated into the door

The integration of components offers greater resistance and robustness.
Design without rough edges and difficult-to-access areas: prevents dirt deposits and promotes cleaning.
Its ergonomic handle offers a perfect grip, even when hands are wet.

Double-walled door, security microphone and high quality seal

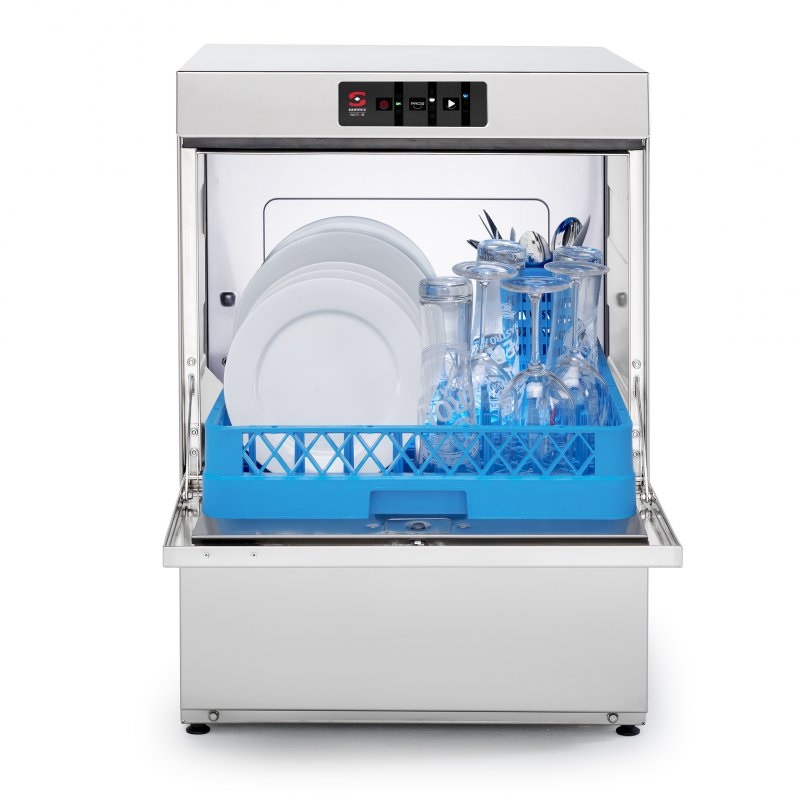

Load capacity of 38 cm: great versatility allowing you to wash a wide range of items: plates, Euronorm trays, GN 1/1 containers and pizza plates diam 39
Warewashing, made simple
Active Xperience: simple and intuitive use
Dedicated cycles: selection of the appropriate washing program using icons.
Electronic control panel with IP65 humidity protection.

Technical characteristics
Basket dimensions: 500 mm x 500 mm
Useful height: 380 mm
Cycle duration(s): 120 / 150 / 210"
Basket production / hour: 30 / 24 / 17
Washing temperature: 55ºC - 65ºC
Rinse temperature: 75ºC - 85ºC
Boiler rinsing capacity: 4.5 l
Tank capacity: 14 l
Water consumption per cycle: 2.7 l
Energy consumption
Energy consumption per cycle: 0.21 kWh
Tank filling consumption: 0.6 kWh

Power
Pump power: 500 W / 0.75 Hp
Tank power: 1800 W
Boiler power: 2800 W
Total power: 3300 W

External dimensions
Width:580mm
Depth: 640mm
Height: 835mm
Net weight: 55kg
Noise level at 1 m: 70 dB(A)
External dimensions of the packed machine
640 x 695 x 960mm
