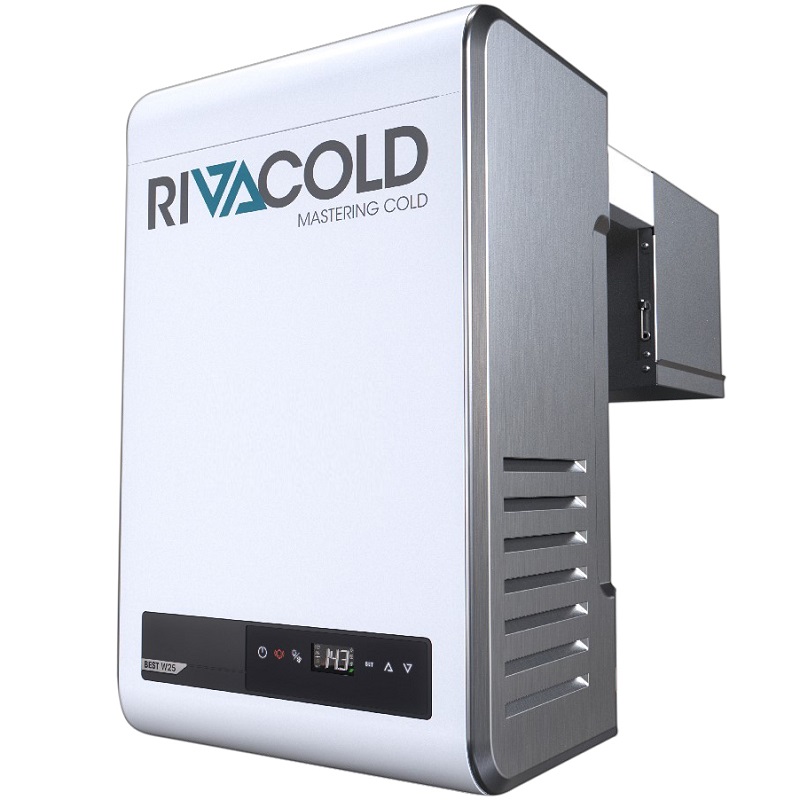

Rivacold BYWS352MA70P11 Propane Monobloc Refrigeration System

Rivacold BYWS352MA70P11 Propane Monobloc Refrigeration System

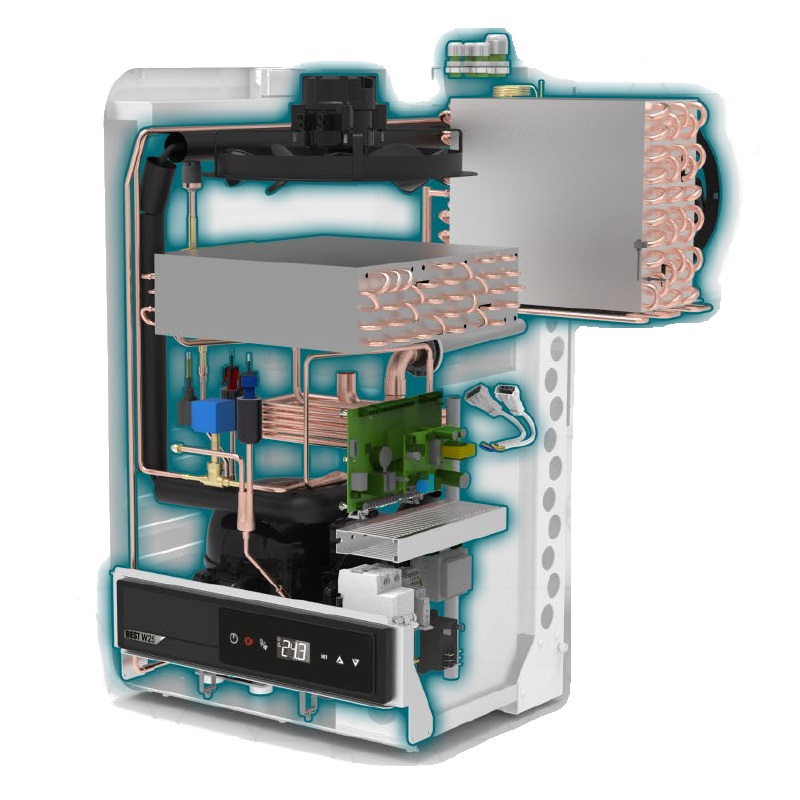

Main components mechanical part
Hermetic compressors with motor thermal protection
Condenser with Ø5mm tubes with internal helical ribs Evaporator with Ø5/16” tubes with internal helical ribs Electronic motor fans in the condenser and evaporator Mechanical thermostatic valve as standard on the entire range
Hot gas defrosting
Condensate water evaporation bucket
R290 refrigerant charge - 150 g per control circuit and electrical part
High pressure side safety pressure switch
Wired door microswitch with cable L= 2.5
Door resistance cable in BT models (L= 2.5 m)
LED camera lamp with cable L= 5 m
Power cable L= 2.5 m with electrical plug wired
Industrial socket (2P + T or 3P + N + T) 16 A
Industrial socket (2P + T) 32 A only in BEWx352MA80P11 and BEWx352LA60P11
Electrical control
Control panel with programmable electronic card according to the different usage requirements
Connection cable for BMS (Modbus RTU protocol) L=5 m Control panel on the machine STRUCTURE
Self-supporting galvanized sheet metal frame
Easily removable fairing to allow quick access to components in case of inspection or maintenance
Fixing kit consisting of screws and washers to fix the monobloc to the chamber wall and a sealing mastic in strips for insulation
Optional
Plug kit supplied for built-in models (WS): 100 mm, 150 mm, 200 mm
Cable extension kit L=5m and L=10m (camera light cable, door resistor and door microphone)
Master & Slave predisposition (cable L=5m)

Product sheet
Compact model
Wall mounting code BYWS352MA70P11
Finished version of the BYWS series
Noise 40.1 dBA 10 m
Air condensation
Hot gas defrosting
MBP application valve expansion
R290 refrigerant
Consumption
Power consumption 1900 W
Current absorption 10.3 A
Condenser
Diameter 350mm
Air flow 2540 m³/h
Evaporator fan n°1
Diameter 350mm
Air flow 2740 m³/h
Aerial boom 8 meters
Hermetic type compressor Number of compressors 2
Embraco brand
Voltage 230/1/50
Displacement 2 X 21 cm³
Dimensions
Width: 711 mm
Depth: 1254 mm
Height: 828 mm
Net weight 92 kg
