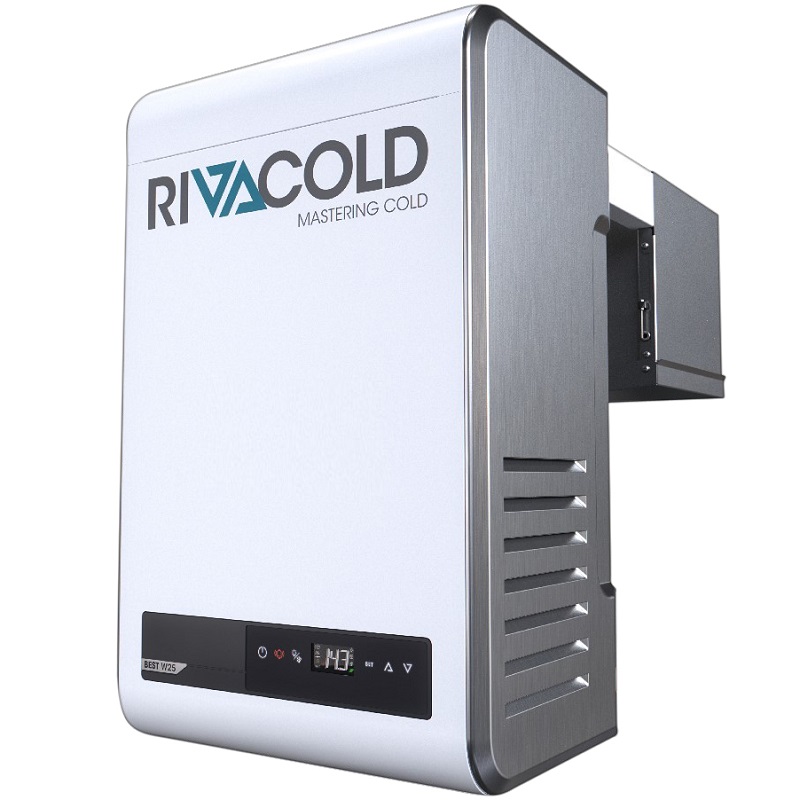

Rivacold BYWS302LA50P11 Propane Monobloc Refrigeration System

Rivacold BYWS302LA50P11 Propane Monobloc Refrigeration System

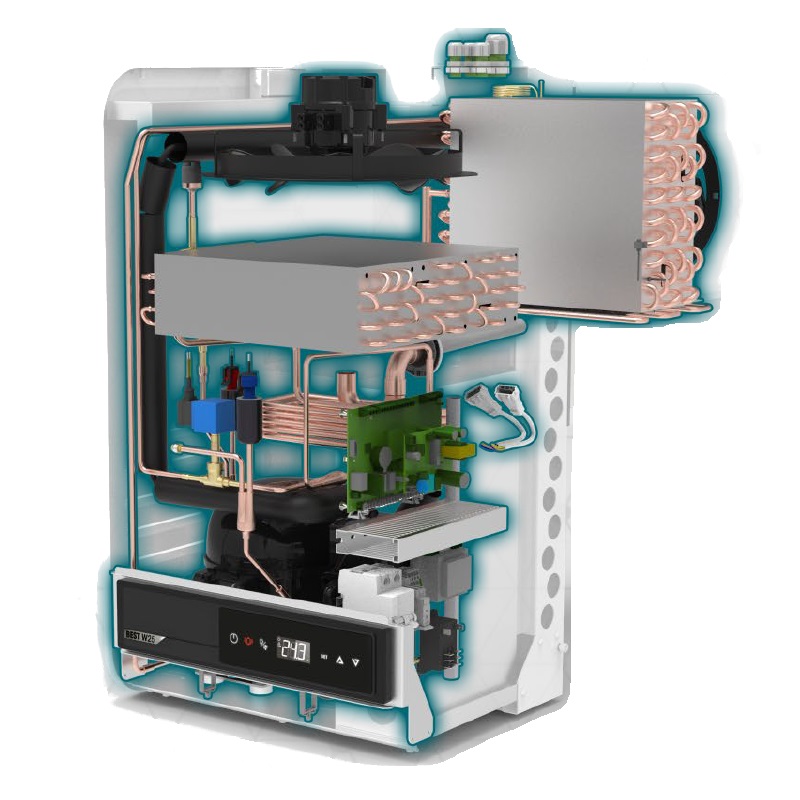

Main components mechanical part
Hermetic compressors with motor thermal protection
Condenser with Ø5mm tubes with internal helical ribs Evaporator with Ø5/16” tubes with internal helical ribs Electronic motor fans in the condenser and evaporator Mechanical thermostatic valve as standard on the entire range
Hot gas defrosting
Condensate water evaporation bucket
R290 refrigerant charge - 150 g per control circuit and electrical part
High pressure side safety pressure switch
Wired door microswitch with cable L= 2.5
Door resistance cable in BT models (L= 2.5 m)
LED camera lamp with cable L= 5 m
Power cable L= 2.5 m with wired electrical plug
Socket industrial (2P + T or 3P + N + T) 16 A
Industrial socket (2P + T) 32 A only in BEWx352LA80P11 and BEWx352LA60P11
Electrical control
Control panel with programmable electronic card according to the different usage requirements
Connection cable for BMS (Modbus RTU protocol) L=5 m Control panel on the machine structure
Self-supporting galvanized sheet metal frame
Easily removable fairing to allow quick access to the components in case of inspection or maintenance
Fixing kit consisting of screws and washers to fix the monobloc to the chamber wall and a sealing mastic in strips for insulation

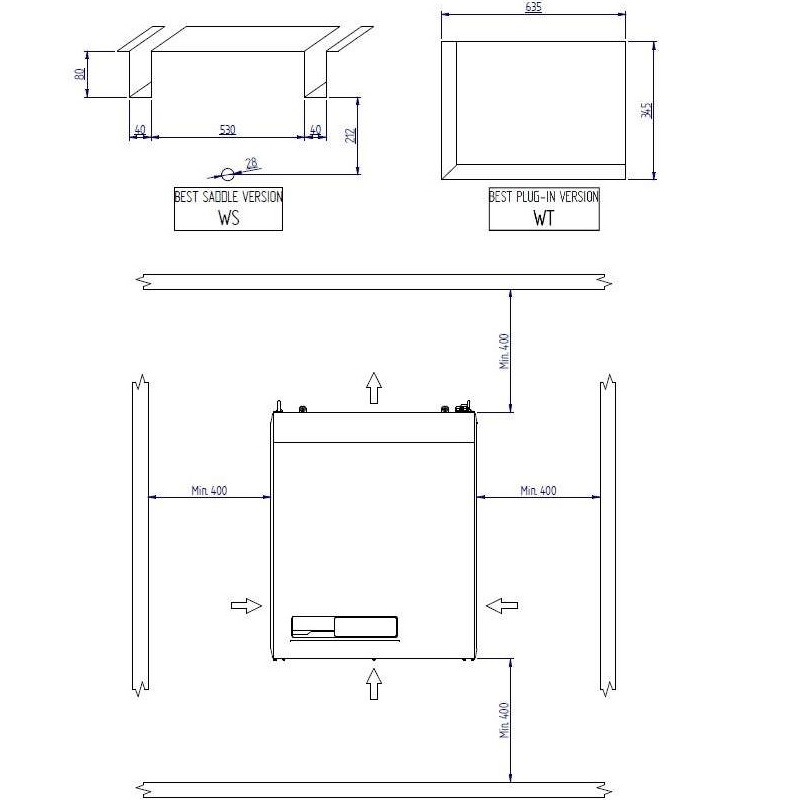

Plug kit supplied for recessed models (WS): 100 mm, 150 mm, 200 mm
Cable extension kit L=5m and L=10m (camera light cable, door resistor and microphone door)
Master & Slave predisposition (cable L=5m)

Product sheet
Compact model
Wall mounting code BYWS302LA50P11 BYWS series
Noise 34.5 dBA 10 m
Air condensation
Hot gas defrosting
Application valve expansion LBP
Refrigerant R290
Consumption
Power consumption 1295 W
Current absorption 7 A
Condenser diameter 300 mm
Air flow 1200 m³/h
Evaporator fan n°2
Diameter 200mm
Air flow 1000 m³/h
Aerial boom 6.5 m
Hermetic compressor
N° compressors 2
Embraco brand
Voltage 230/1/50
Displacement 2 X 21 cm³
Dimensions
Width: 671 mm
Depth: 975 mm
Height: 828 mm
Net weight: 81 kg
