Rivacold BYWS251MA05P11 Propane Monobloc Refrigeration System

Rivacold BYWS251MA05P11 Propane Monobloc Refrigeration System

The main objective when designing the BEST Monoblock was to maximize the COP, increase the cooling capacity while reducing energy consumption in all working conditions.

Rivacold has completely developed a new software to guarantee efficiency, reliability and management flexibility, with the aim of guaranteeing always stable operating conditions, the BEST range can be controlled and managed by the new APP My I.D, where you can both control and manage all connected units.

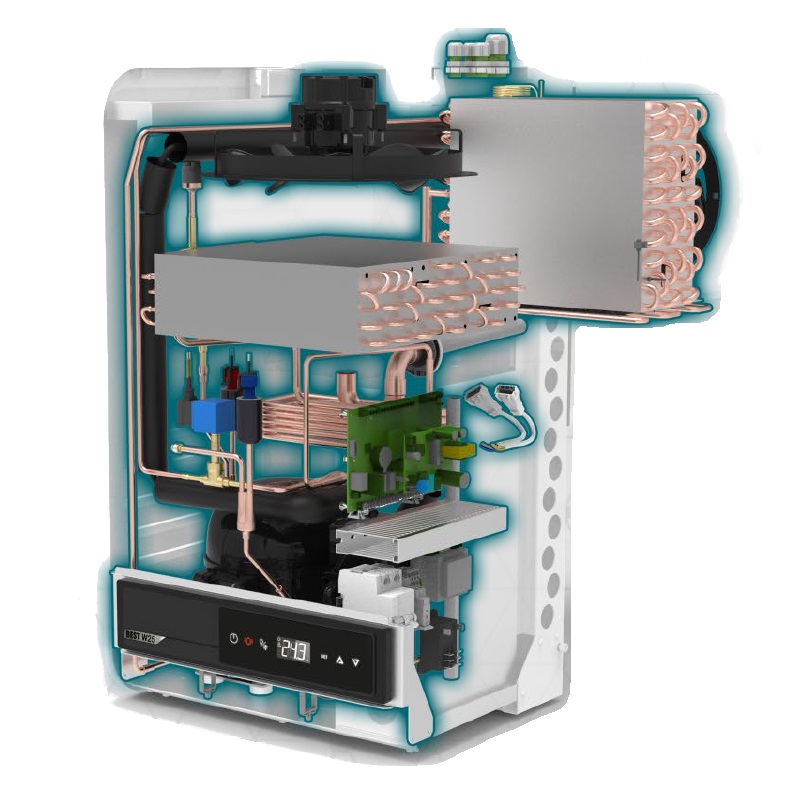

Hermetic compressors with thermal motor protection Condenser with Ø5mm tubes with internal helical grooves Evaporator with Ø5/16” tubes with internal helical grooves Electronic motor fans in the condenser and evaporator Mechanical thermostatic valve as standard on the entire range Hot gas defrosting

Condensate water evaporation bucket
R290 refrigerant charge ≤ 150g per circuit
Control and electrical circuit
High pressure side safety pressure switch
Wired door microswitch with cable L= 2.5
Door resistance cable in BT models (L= 2.5 m)
LED camera lamp with cable L= 5 m
Power cable L= 2.5 m with wired electrical plug
Industrial socket (2P + T or 3P + N + T) 16 A
Industrial socket (2P + T) 32 A only in BEWx352MA80P11 and BEWx352LA60P11
Electronic control
Control panel with programmable electronic card according to the different usage requirements
Connection cable for BMS (Modbus RTU protocol) L=5 m
Control panel on the machine STRUCTURE
Self-supporting galvanized sheet metal frame
Easily removable fairing to allow quick access to components in case of inspection or maintenance
Fixing kit consisting of screws and washers to fix the monobloc to the chamber wall and a sealing mastic in strips for insulation
Option
Plug kit supplied for recessed models (WS): 100mm, 150mm, 200mm
Cable extension kit L=5m and L=10m (camera light cable, door resistance and door microphone)
Master & Slave predisposition (cable L=5m)

Product sheet Type Compact
Wall mounting Code BYWS251MA05P11
BYWS Series Version Finish Noise 31.1 dBA 10 m
Condensation Air
Hot gas expansion valve
Application: MBP
Refrigerant: R290
Consumption
Power consumption: 360 W
Current consumption: 2 A
Condenser
Diameter: 254 mm
Air flow: 600 m³/h
Evaporator
Number of fans: 1
Diameter: 200 mm
Air flow: 500 m³/h
Air boom: 6.5 m
Compressor type Hermetic
Number of compressors 1
Brand: EMBRACO
Voltage: 230/1/50
Displacement: 6.9 cm³

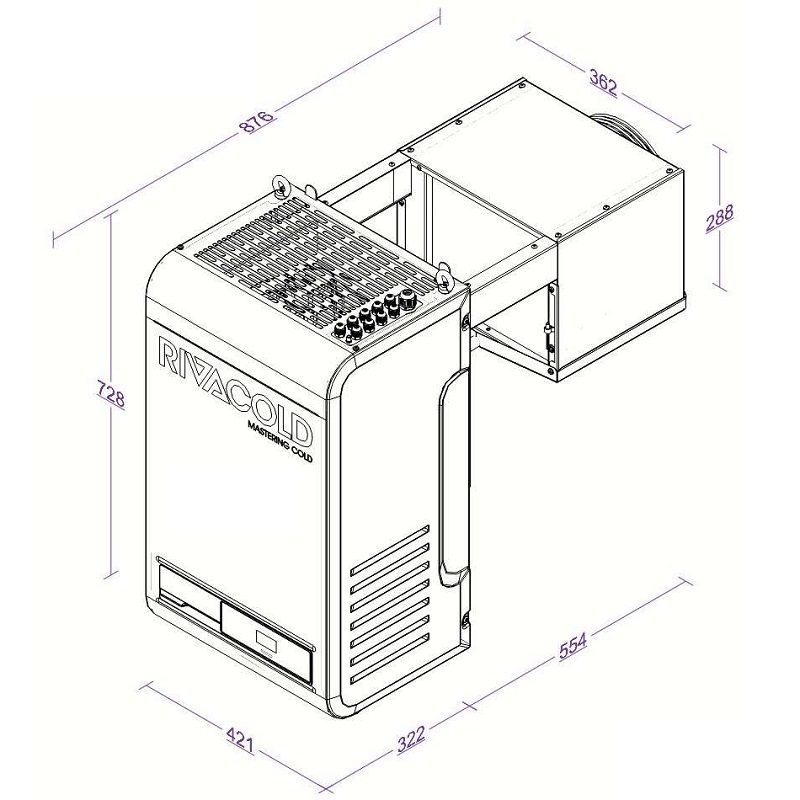

Dimensions
Width: 421 mm
Depth: 876 mm
Height:728mm
Net weight: 42kg
