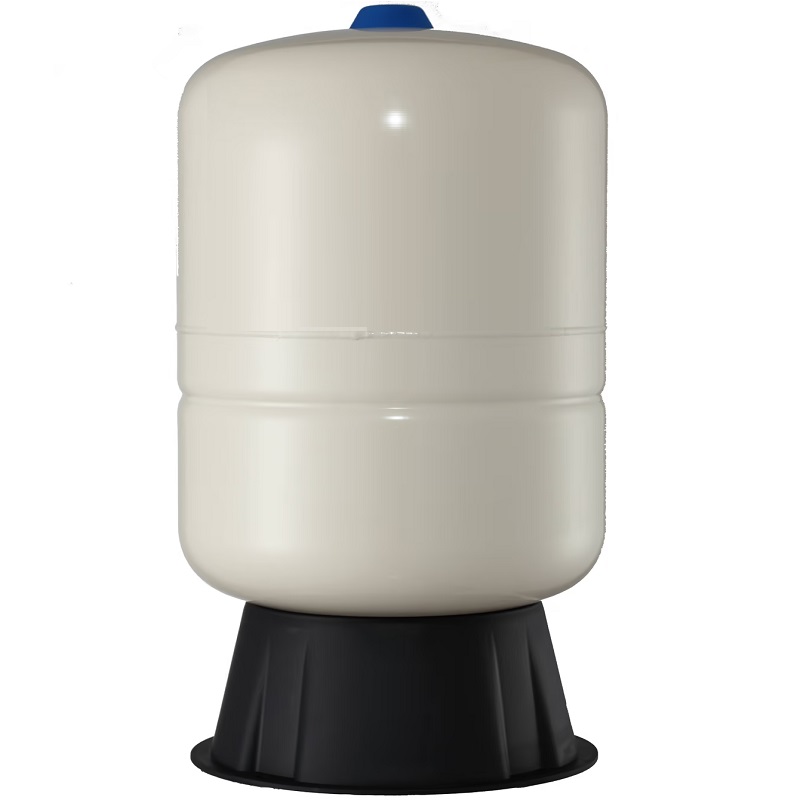

Seiwater PWB-60LV 60-liter hydropneumatic tank

Seiwater PWB-60LV 60-liter hydropneumatic tank

Ideal for a wide variety of applications, including reverse osmosis, pressure units, and extensive industrial applications, with a single diaphragm design. Standard System
1" connection, equipment precharge: 1.9 bar, set to the appropriate pressure for reverse osmosis applications, maximum working pressure: 10 bar, inner liner
Made of virgin polypropylene and exterior with two layers of epoxy-based polyurethane, maximum working pressure: 10 bar Max.

Product Description
Maintenance-free
Diaphragm design
Patented stainless steel water connection
Virgin polypropylene liner
Two-part polyurethane finish, epoxy paint
O-ring sealed air valve cap
In-line models equipped with a reinforced connection plate (RCP)
Capacity: 2 to 150 liters / 0.5 to 40 gallons
Maximum working pressure: 10 bar / 150 psi
Factory precharge: 1.9 bar / 28 psi
Maximum operating temperature: 90°C / 194°F
Seiwater hydropneumatic tanks are high-quality, versatile pressure tanks.
Suitable for many applications:
Pressure booster systems
Well systems
Irrigation systems
Thermal expansion
Hydronic heating expansion
Hydraulic water hammer arrestors
Dimensions and weights
Height: 620 mm
Diameter: 389 mm
Weight: 11.3 kg
