Récupérateur de chaleur Tecna RCU 500 EC/H débit 500 m³

Tecna RCU 500 EC/H heat recovery unit flow rate 500 m³

The Tecna RCE-EC series range of heat recovery units are designed and built in accordance with the ErP directive, so the thermal efficiency of heat recovery in all models is above 73%. This is a series very suitable for ventilation with heat recovery in small and medium-sized public environments, such as bars, cafes, restaurants, cinemas, theaters, offices, schools...

In the horizontal version; designed for installation inside buildings and ceiling mounting; Filter replacement registers are located at the bottom of the equipment up to size RCE 6500-EC/H, from size RCE 7100-EC/H these registers are located on the side of the equipment.

Double filtration RITE F7+F8
Sandwich panel envelope with 25 mm insulation
EC inverter motors.
ERP ready
Compact and lightweight design.
Extensive control possibilities using probes and BMS with Modbus protocol.
Standard wall control with LCD screen included in the price.

Flow rates from 500 m3/h
Ventilation series: RCE-EC
Thermal performance (%): 73
Power consumption: 250

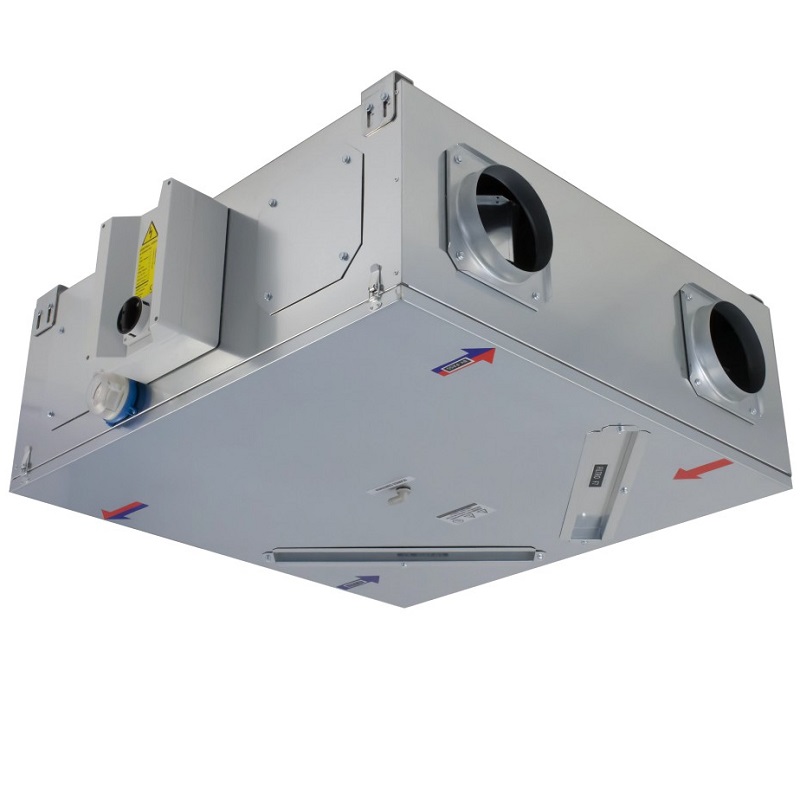

RCE-EC horizontal series.
Allows installation in false ceilings with easy access to filters.
LCD wall control included.
Compact design.
EC inverter motors.

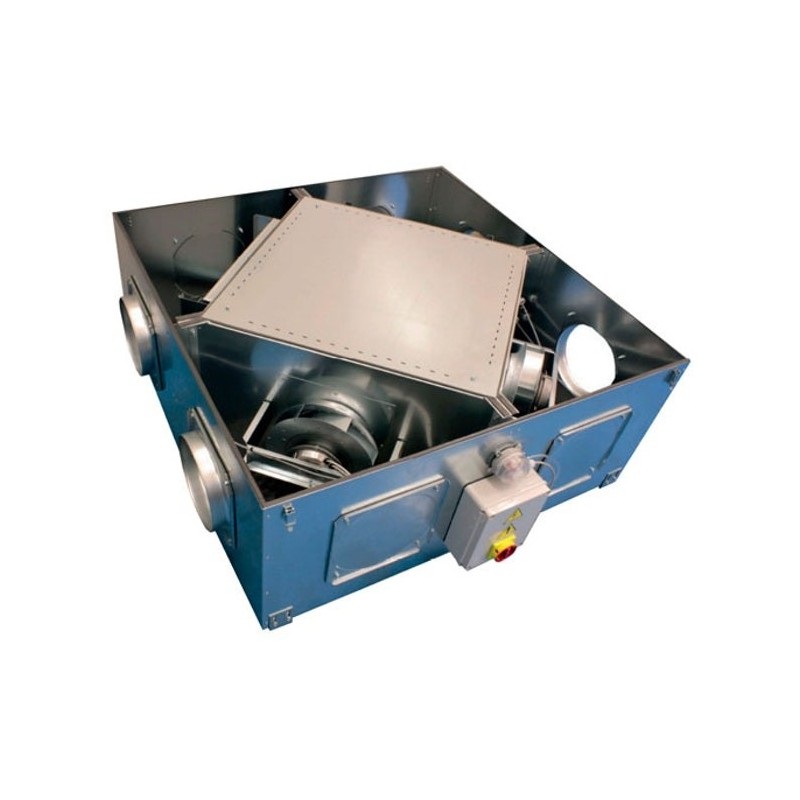

Aluminum plate heat exchanger.
Possibility of filters according to RITE.
Standard motorized by-pass and digital control panel.
Inlet and return temperature sensors.
Indication of dirty filters.
Model RCE-EC H (Filter F7 in each suction and F8 in insufflation)
Mouths (mm.) 150
Wattage 230-1-50/60 Hz, 2x125
Dimensions L x Depth x H (mm.) 900x900x400
