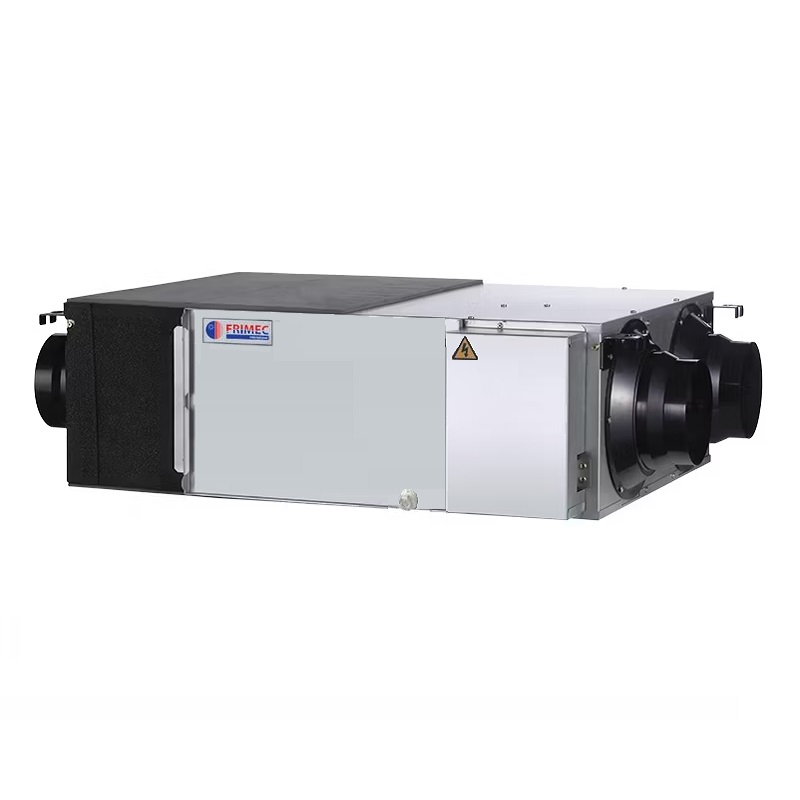

Frimec RCF8DMTHA Heat Recovery Unit, Flow Rate 2200 m³/h
Frimec RCF horizontal heat recovery unit with two filters (one pre-filter + F9 or F7 depending on the model) on the intake side. This horizontal version offers a flow rate of 650 to 3400 m³/h. These heat recovery units, available in five different sizes, are suitable for heat recovery in public spaces such as cafes, restaurants, and small and medium-sized establishments.
Operating status memory
Automatic control and bypass included
Weekly programming
Fans with DC motors
Display with temperature visualization
Dirty filter pressure switch with warning signal

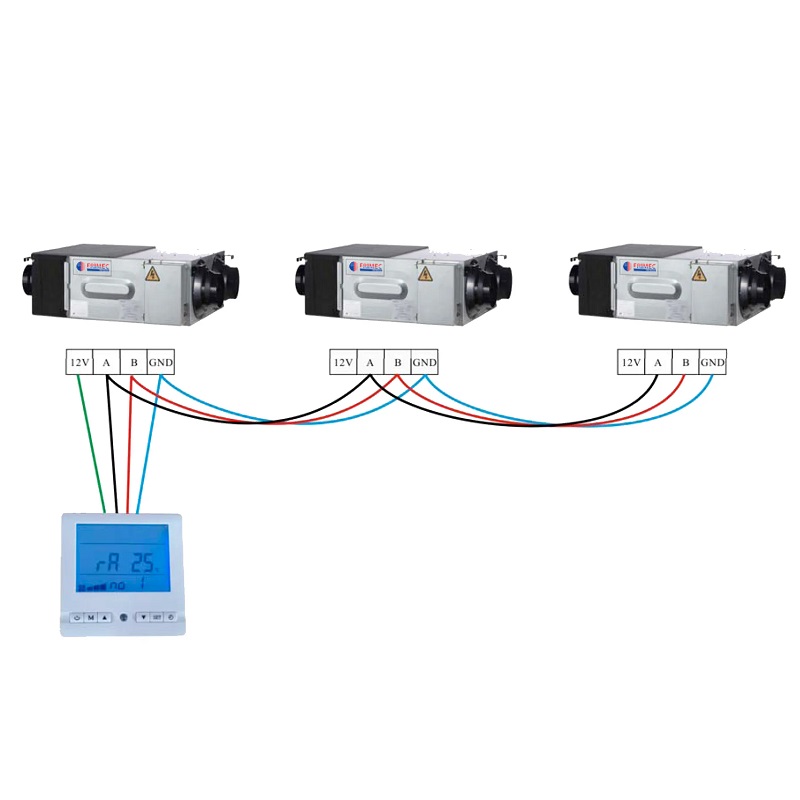

Centralized control of heat recovery units
Centralized control LH13001
Controls up to 16 units
Group or individual control
Wi-Fi (optional)
Maximum flow rate: 2600 m3/h
Nominal flow rate: 2200 m3/h
Available pressure: 0 - 150 PA
Thermal efficiency: 76%
Cold enthalpy efficiency: 52%
Heating enthalpy efficiency: 61%
Noise level: 42 dBA
Power supply: 220/1 / 50 V/F/Hz
Speed control: DC motor, 10
Consumption: 650 W
Power cables: 3 x 1.5 mm²

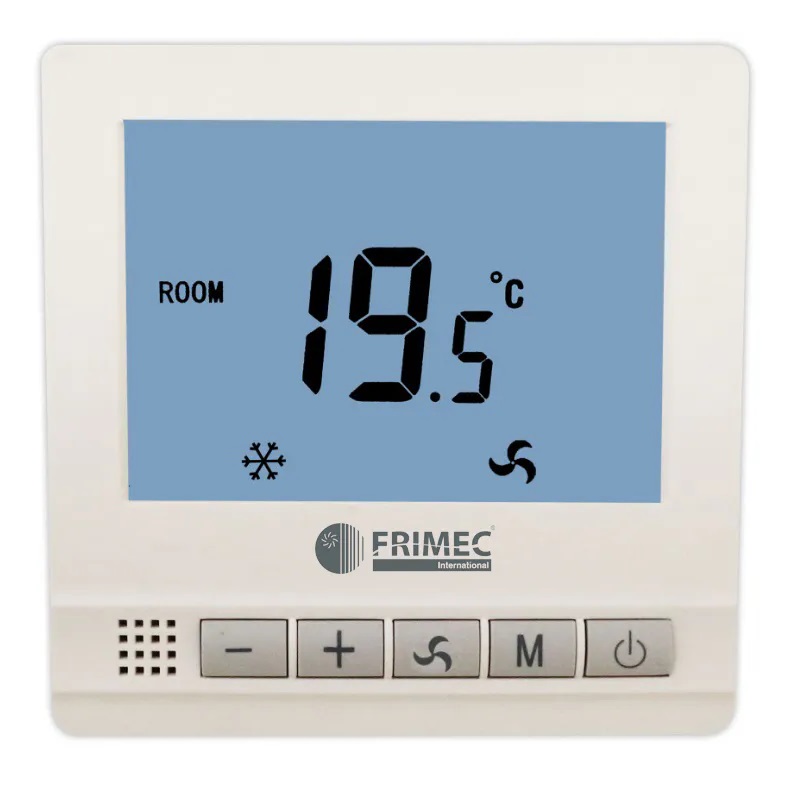

Control unit: Wired control (7-day programming, clock)
Filters included: Pre-filter + F9
Communication: BMS (Modbus RS485)
Dimensions
Inlet dimensions (height x width): 673 x 343 mm
Height: 570 mm
Width: 1840 mm
Depth: 1630 mm
Weight: 259 kg
