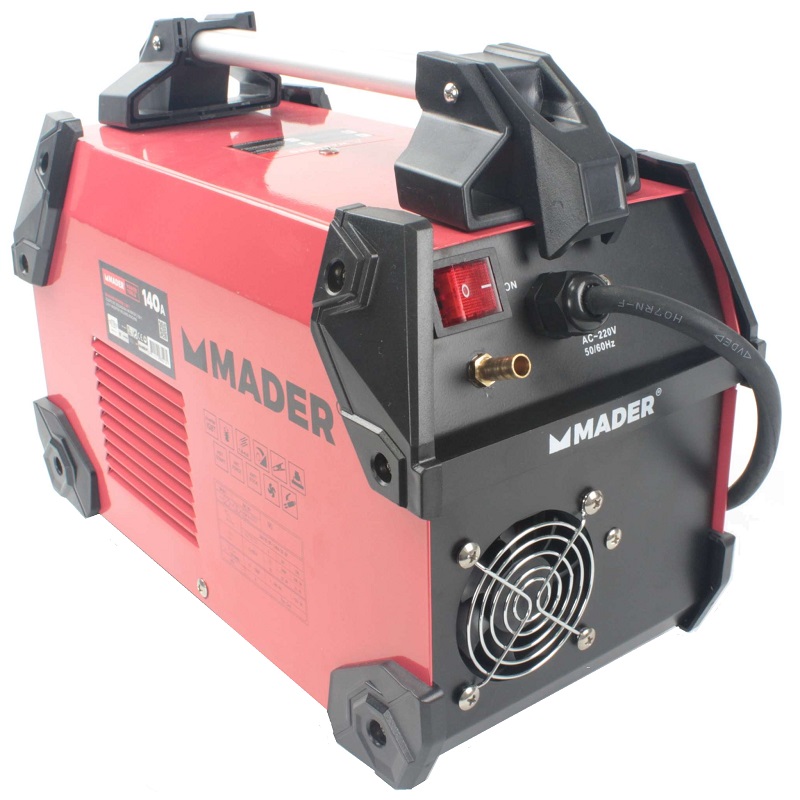

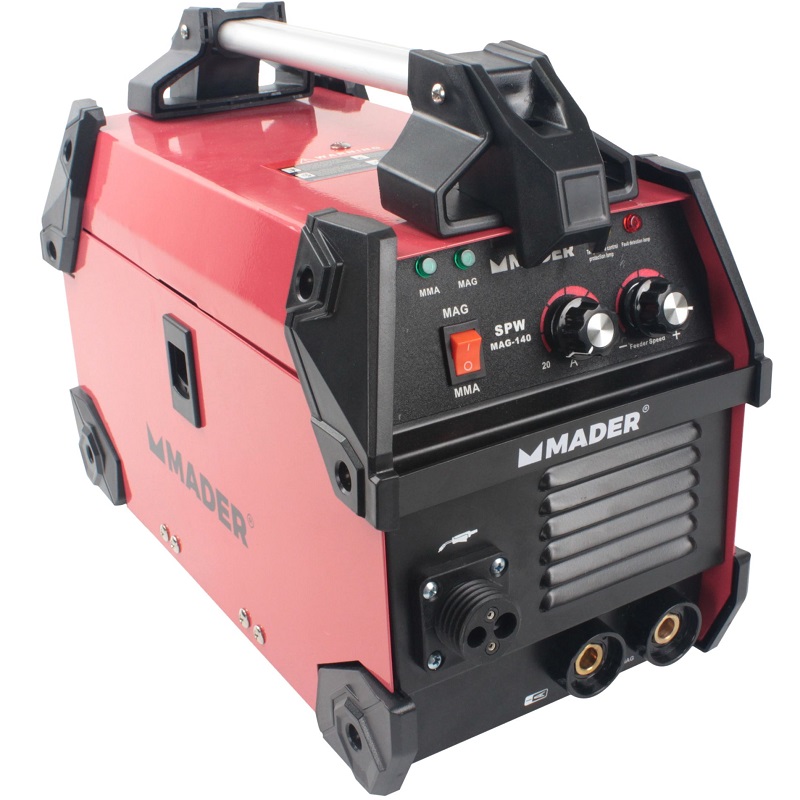

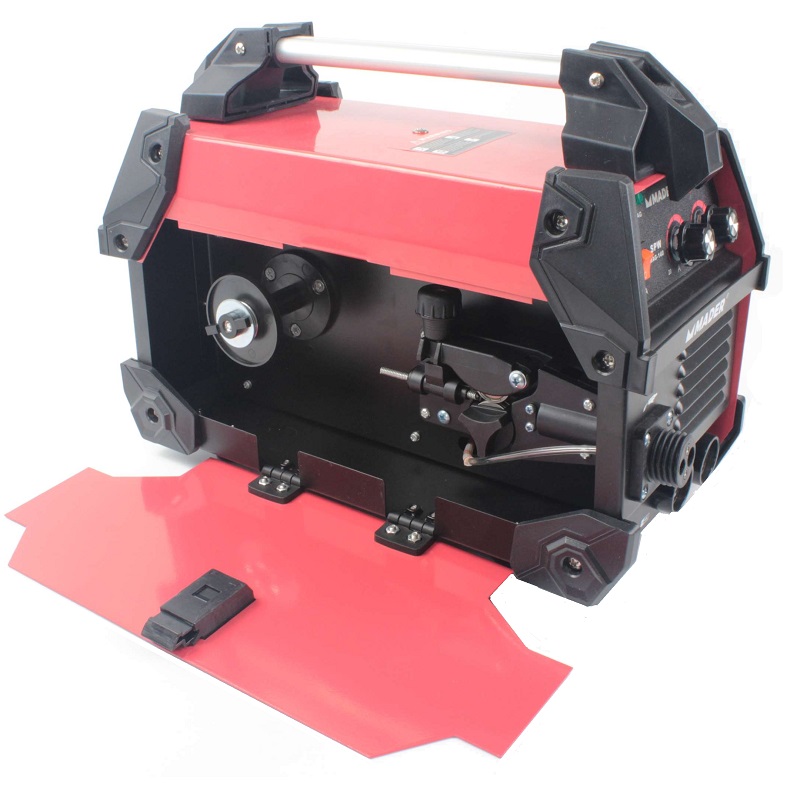

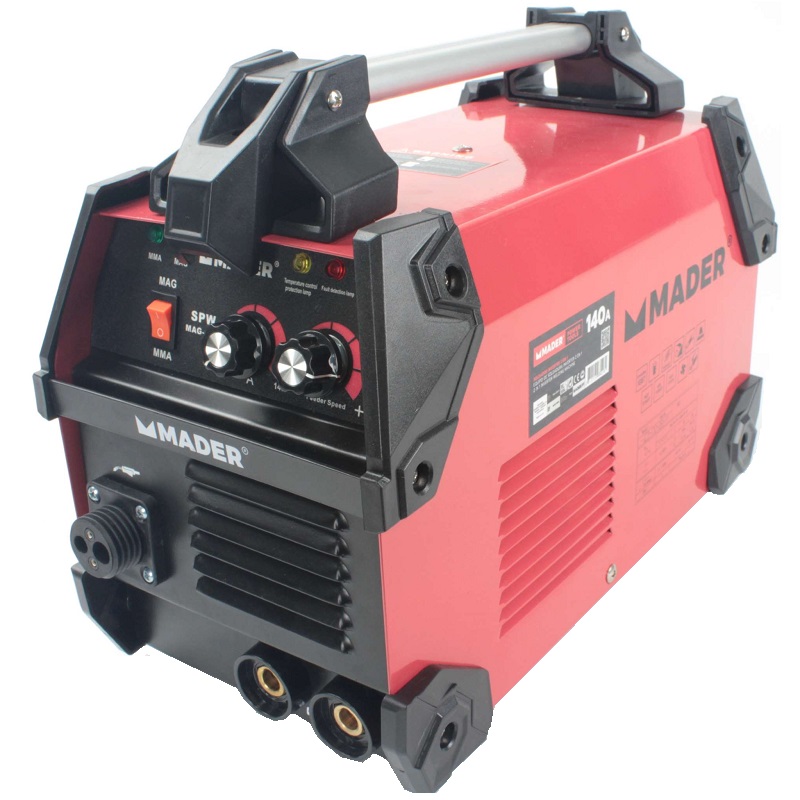

Mader Inverter Welder, Non-Stick, 3-in-1, 140 A
Specifications: Electrode Welding (MMA)
Hot Start: Ensures that the current is briefly and automatically increased when starting the welding process. This prevents the electrodes from sticking together when the arc is ignited, resulting in cleaner final results.
Arc Force: Automatically compensates the current during welding if necessary.
Anti-Stick: When the electrode is stuck to the metal workpiece for 800 to 1000 ms, the machine automatically reduces the current to 30 to 70 A, and the operator can easily remove the electrode from the workpiece.
Current (A): MIG 28 - 140 A (output) MMA 20 - 140 A (output)
No-load voltage: 56 V
Output voltage: 25.6 V
Current (A): 28 A (input)
Power: 3.4 kW
Voltage: 230 V~ 50 Hz
Insulation: HF - IP21
Electrode: Ø 1.6 - 4.0 mm
Wire: Flux - Ø 0.6 - 2 mm
Solid. - Ø 0.6 - 0.9 mm
Duty cycle: 60%
Efficiency: 80%
Power factor: 0.73

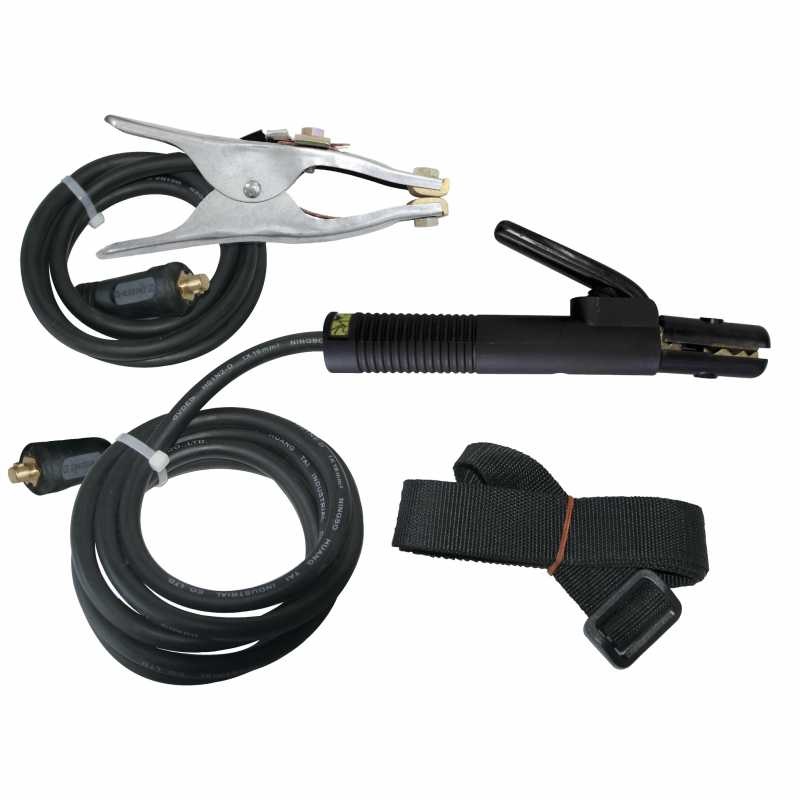

Accessories
1 Electrode holder: 2 m
1 Ground clamp: 1 m
1 Torch: 1
Gas tube: 1
Cutting brush: 1
Main mask
Packaging
Height: 39 cm
Width: 26 cm
Length: 45 cm
Gross weight: 10.5 kg
Net weight: 9.5 kg
