Pool heat exchanger Heat Line basic Zodiac Heat Line 70 basic

Write a review
Zodiac
983.95 €
Hemmera 1 Ask a question
HE-000638-3
In stock
+ −

.

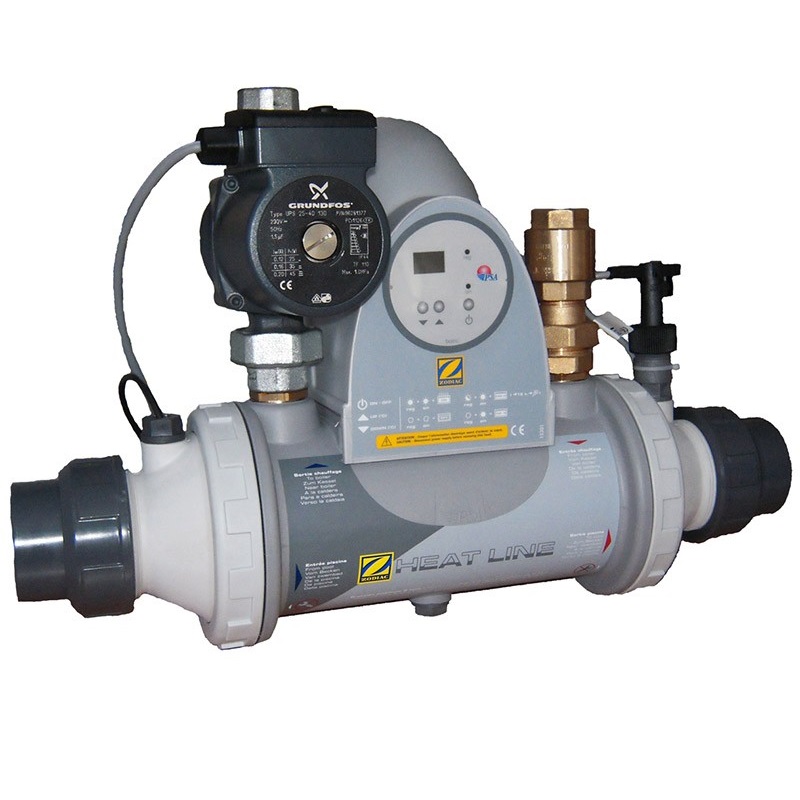

Pool heat exchanger Heat Line basic Zodiac Heat Line 70 basic

For heating a swimming pool from a boiler, a heat pump other than dedicated to the swimming pool, or a geothermal heating system.
TITANIUM multi-tube heat exchanger guaranteed for life.
Pre-assembled model with 3-speed circulator, non-return valve.

PVC swimming pool connection Ø 63 or 50 in line at the filtration outlet. Boiler connection Ø26/34, non-return valve provided. Plug Ø 15/21 for emptying. Body injected in glass-filled polyamide. Bundle of anti-corrosion TITANIUM tubes.

Pre-wired device with digital control thermostat with ON/OFF-indicator-timer, circulator with galvanized fittings, flow controller and power socket; all in a box ensuring wall mounting.

Simplified assembly:
In the technical room, near the boiler, at the filtration outlet.
Mono 230 Volt power supply with protection by a 30mA differential circuit breaker at the head of the line (not supplied).
Possibility of reversing the direction of circulation of the primary and secondary circuit by reversing the exchanger.

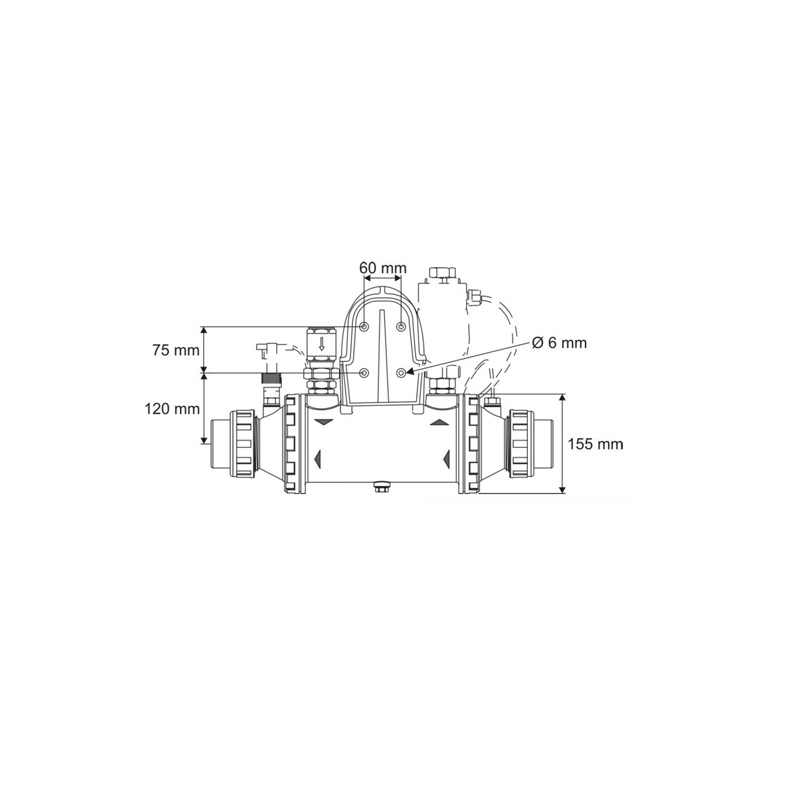

Detail
Primary heating circuit water outlet
Thermowell
Pool water inlet
Drain plug
Pool water outlet
Pending tapping for flow controller
Check valve
Primary heating circuit water inlet
Injected polyamide cover

Maximum primary circuit power 90/70° (primary boiler circuit) 70 kW
Maximum power primary circuit 45/35° (primary heat pump circuit) 17 kW
Primary heating connections Ø26/34
Secondary PVC pool connections Ø50 or 63
Primary heating flow 3 m³/h
Maximum secondary pool flow 20 m³/h
Weight 9 kg

Brand Hemmera:
Zodiac
