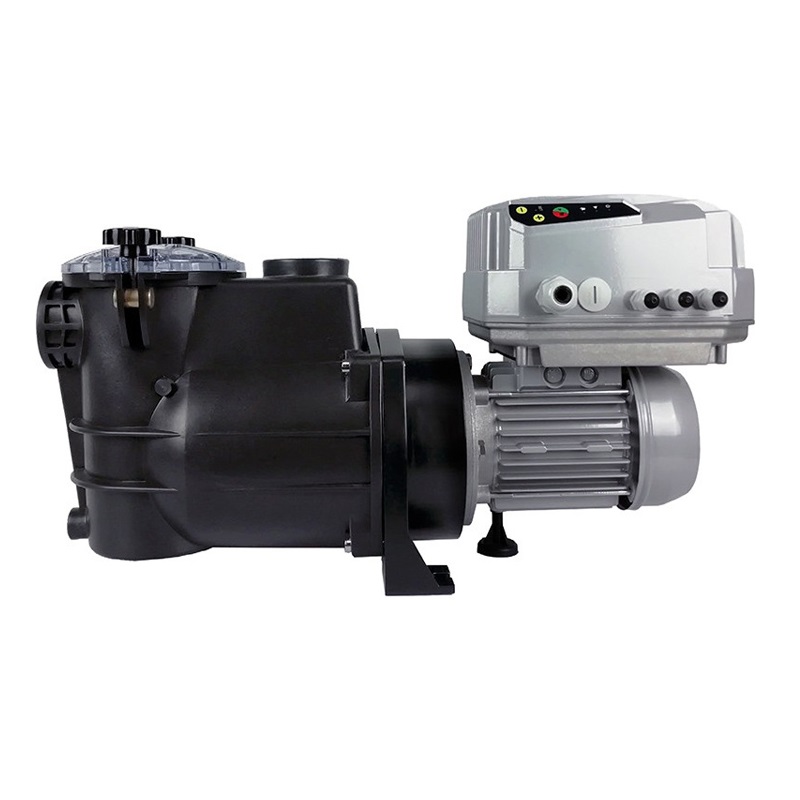

TOR Solar 75M 400 VDC / 265 VAC Self-priming Centrifugal Pumps with Pre-Filter

TOR Solar 75M 400 VDC / 265 VAC Self-priming Centrifugal Pumps with Pre-Filter

Specially designed for water recirculation in small pools with flint or cartridge filters, and spa-type baths, using solar energy.
Electrical communication with the water is impossible, as no part of the motor has contact with the pumped liquid.
Inverter Features
The solar inverter converts the DC voltage from the photovoltaic panels into AC current, thus enabling it to operate
any pump with a single-phase or three-phase asynchronous motor, as shown in the attached table.
The pump speed is adapted to the constant exposure to solar radiation, maximizing the amount of water pumped, even when operating in low solar radiation. The solar inverter provides complete pump protection against overvoltage, overcurrent, and dry running.

Suitable for salt water.
Easy removal and cleaning of the pre-filter without the need for tools. The pump offers two types of connections:
1-1/2" female thread or for Ø50 PVC pipe (accessories included).
Self-priming 1 m.c.a. (up to 4/5 m.c.a. with foot valve).
Materials
Pump body, seal disc, and diffuser made of fiberglass-reinforced PP.
AISI-316 stainless steel shaft.
Noryl impeller.
Carbon-ceramic and steel mechanical seal
AISI-316 stainless steel.
Reinforced aluminum support base.
Motor
Enclosed asynchronous motor with external ventilation.
IP-55 protection, 2,850 rpm 50 Hz.
Model: TOR Solar 75M
Power: 0.75 HP
Power: 0.55 kW
Diameter: ADN, ASP 1-1/2"
Dimensions: L.470 x H. 223
